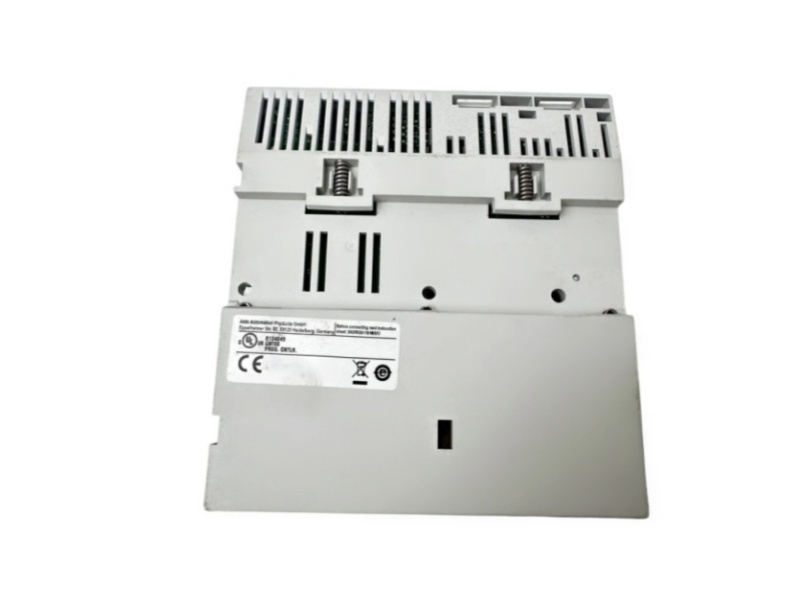

ABB TB5620-2ETH product image 1

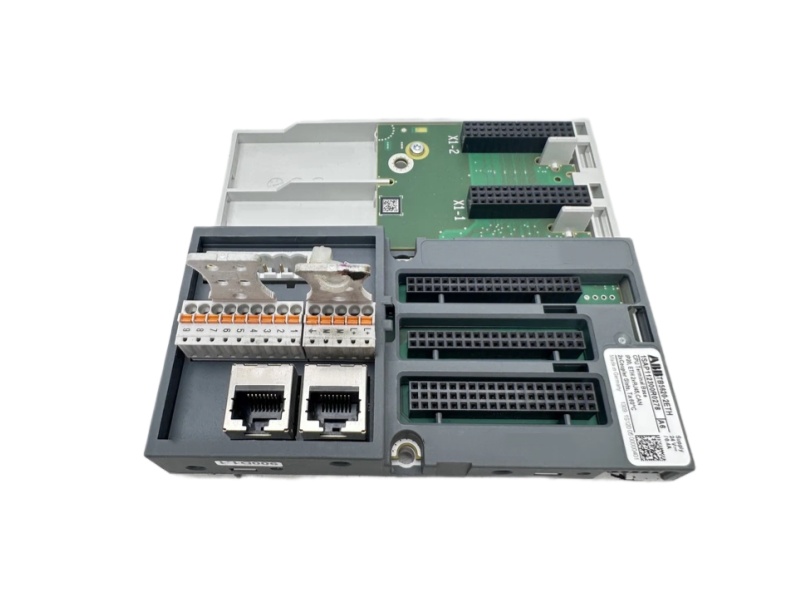

ABB TB5620-2ETH product image 2
ABB TB5620-2ETH product image 3

ABB TB5620-2ETH AC500 V3 Two-Slot Terminal Base

INQUIRE NOW · ABB CONFIGURATION REVIEW

ABB TB5620-2ETH AC500 V3 Two-Slot Terminal Base

ABB TB5620-2ETH balances a compact AC500 V3 footprint with space for two plug-in communication modules. It provides the controller, network and expansion connections needed for a modular cabinet station.

ORDER CODE 1SAP112300R0278
BASE WEIGHT 0.215 kg
CONFIGURATION REVIEW Required
Order check: Confirm the intended project scope before finalizing commercial terms.
◆ Top Quality
✓ One Year Warranty
⚡ Fast Delivery
Request an ABB TB5620-2ETH Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TB5620-2ETH
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

TB5620-2ETH Balanced Station Architecture

Controller seating, communication expansion and onboard connections are organized as three station layers.

Controller & Expansion

GROUP 1
CPU supportAC500 V3 only
Coupler positionsTwo
CPU coupler connectionIntegrated
I/O extensionDirect bus interface
Expansion limitUp to 10 modules
CAPACITY REVIEW 2 COUPLER SLOTS

Reserve each position for a confirmed protocol role and record it in the controller project.

Onboard Connections

GROUP 2
EthernetDual RJ45
Switch behaviorConfigurable
SerialCOM1 connection
CANTwo plug-in connectors
Field terminalsSpring type
MODULE ROLE

The base supports an AC500 V3 CPU and a moderate multi-network configuration without moving to the widest terminal-base option.

2Ethernet ports
1Serial path
1CAN path
02

Coordinate TB5620-2ETH Couplers and Cabinet Wiring

Two expansion positions make protocol allocation and service access essential design checks.

INTEGRATION & PROTECTION
01Protocol pairing

Confirm that the controller supports both selected communication modules together.

02Wiring access

Leave service clearance for the network connectors and removable terminals.

03Unused slot

Install the specified dummy module if either communication position remains empty.

04Base envelope

The official main dimension gives a length of 123.5 mm.

05Expansion order

Document the CPU, couplers and I/O modules in their exact physical sequence.

06Power isolation

Remove station power before changing the base, controller or plug-in modules.

PAIRValidate the two planned protocol modules.
ROUTESeparate network and field-power conductors.
DOCUMENTSave the final hardware sequence and cabinet drawing.
03

ABB TB5620-2ETH Buyer FAQ & Ordering Guide

Straightforward answers for two-network AC500 V3 station design and sourcing.

Q01

What configuration niche does ABB TB5620-2ETH fill?

ABB TB5620-2ETH supports an AC500 V3 controller station that needs two plug-in communication functions in a mid-width base.

Q02

How should ABB TB5620-2ETH compatibility be confirmed?

Check the exact V3 CPU, both communication modules, controller resource limits, physical sequence and cabinet rail space.

Q03

Which automation projects suit ABB TB5620-2ETH?

ABB TB5620-2ETH fits machines and skids that bridge two industrial networks while retaining local expansion I/O.

Q04

Is ABB TB5620-2ETH availability shown in real time on the official page?

No. The official entry verifies the product identity; request a dated offer for current quantity and delivery planning.

Q05

Can ABB TB5620-2ETH be substituted for another base without project edits?

Not by assumption. Coupler count, rail width, software hardware tree, wiring and connector access all require comparison.

Q06

What details speed up an ABB TB5620-2ETH manual and quotation response?

Send the CPU order code, two intended couplers, cabinet layout, destination, quantity and required documentation.
