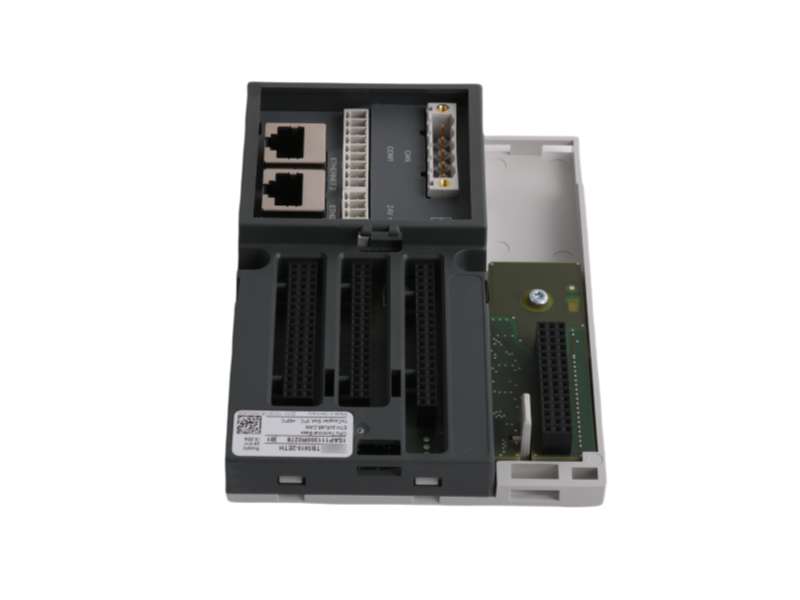

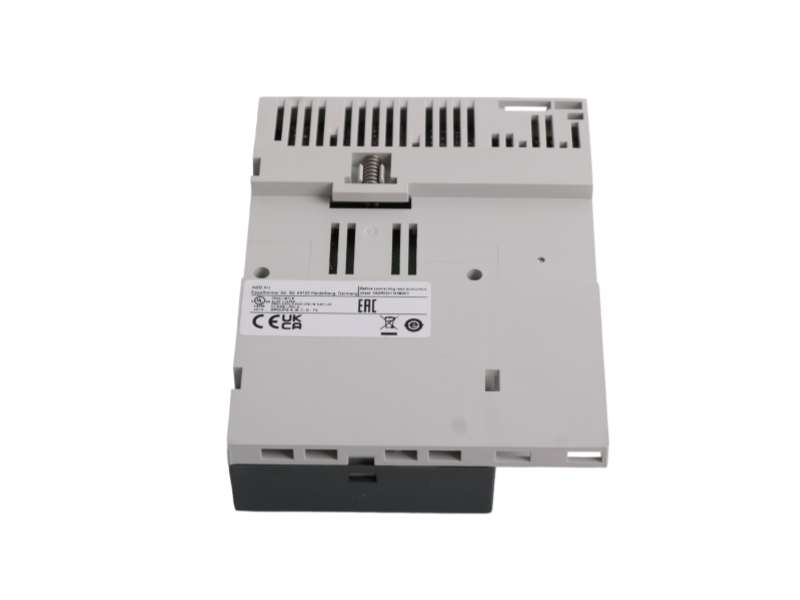

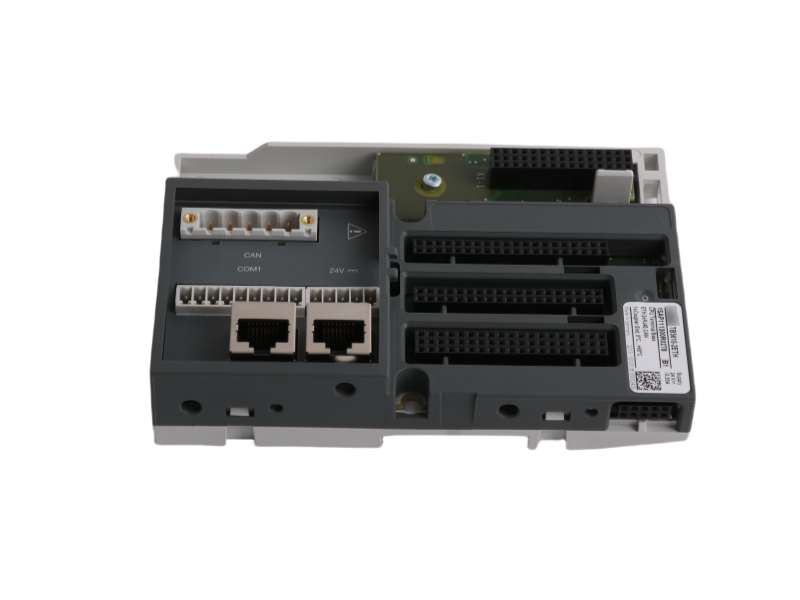

ABB TB5610-2ETH is an active AC500 V3 terminal base for one PM56xx processor and one communication module, with two Ethernet, one CAN and one COM1 interface.
| Manufacturer | ABB |
| Item number | TB5610-2ETH |
| Country of Origin | Switzerland |
| Lead Time | 2-3 DAYS |
| After-Sales Support | For after-sales support, please contact May. |
| HS Code / Commodity code | Please confirm the destination before shipping. |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Mechanical and electrical foundation for one AC500 V3 CPU and one communication module.
TB5610-2ETH distributes supply and system interfaces to a compatible PM56xx-2ETH CPU while providing one left-side communication-module position and right-side I/O-bus expansion.
TB5610-2ETH is selected by processor generation and required communication-slot count, not simply by matching the number of visible Ethernet sockets.
Processor fit, slot capacity, integrated interfaces, XC choice and assembly planning.
ABB TB5610-2ETH is a terminal base for AC500 V3 PM56xx-2ETH processor modules. Confirm the exact processor order code against the current hardware manual.
ABB TB5610-2ETH provides one communication-module slot in addition to one processor slot. A base with more slots is required when the approved architecture needs multiple modules.
No. TB5610-2ETH provides the ETH1 and ETH2 physical interfaces, while the installed PM56xx processor and its configuration determine network behavior.
ABB's current data sheet gives 0.4 A maximum consumption for the TB5610 base including the processor, communication modules and I/O-bus supply. Size the source using the complete station load.
Choose the XC order code 1SAP311300R0278 only when the documented extreme-condition environmental ratings are required; the standard base is order code 1SAP111300R0278.
Provide the PM56xx processor, planned communication module, attached I/O modules, power design, standard or XC requirement, quantity, destination and delivery date.
Documentation, response and long-term automation spare-parts assistance.
Most products are covered by a warranty of up to 12 months, subject to the applicable terms and conditions. If any product-related issue occurs during the warranty period, our team will assist you and provide an appropriate solution.
Relevant datasheets and technical literature can be provided with the goods, offering useful information for product identification, installation, operation, and maintenance.
We understand the importance of minimizing equipment downtime. Our team responds promptly to inquiries and provides professional assistance with product information, quotations, order status, shipping, and after-sales questions.
We serve customers worldwide and provide reliable assistance from inquiry to delivery and after-sales service, ensuring clear and timely communication throughout the process.
We continue to source discontinued, obsolete, and hard-to-find automation parts from various brands, helping customers maintain existing equipment and reduce downtime caused by spare parts shortages.
Sincere Cooperation, Long-Term Trust
A Russian customer urgently needed a replacement for a discontinued automation component. After reviewing the product label, technical parameters, and application details, our engineers recommended a compatible alternative and provided photos and test videos before shipment. The alternative performed well, enhancing the customer's confidence in our technical capabilities and leading to multiple repeat orders.
An Indian customer still had doubts after initial online communication with us, so they visited our company in person for a face-to-face meeting and product inspection. This visit increased the customer's trust and led to the successful placement of their first order. Over the next few years, we completed multiple orders and established a stable, long-term partnership.
A Venezuelan customer needed a specific automation component and compared products and services from several suppliers online. After nearly three weeks of careful consideration, our sincere communication, professional service, and reliable product quality won the customer's trust. After receiving the product and using it for several weeks without any problems, the customer gave us positive feedback and subsequently placed multiple orders.
A varied reference list of specialist automation brands and model families.
Include the exact ABB order code, application, installed hardware, quantity, destination and required delivery date.
