ABB PM564-RP-AC AC500-eCo Relay PLC CPU 100-240 V AC
ABB PM564-RP-AC AC500-eCo Relay PLC CPU 100-240 V AC
ABB PM564-RP-AC AC500-eCo Relay PLC CPU 100-240 V AC

ABB PM564-RP-AC AC500-eCo Relay PLC CPU 100-240 V AC

INQUIRE NOW · ABB AC500-eCo

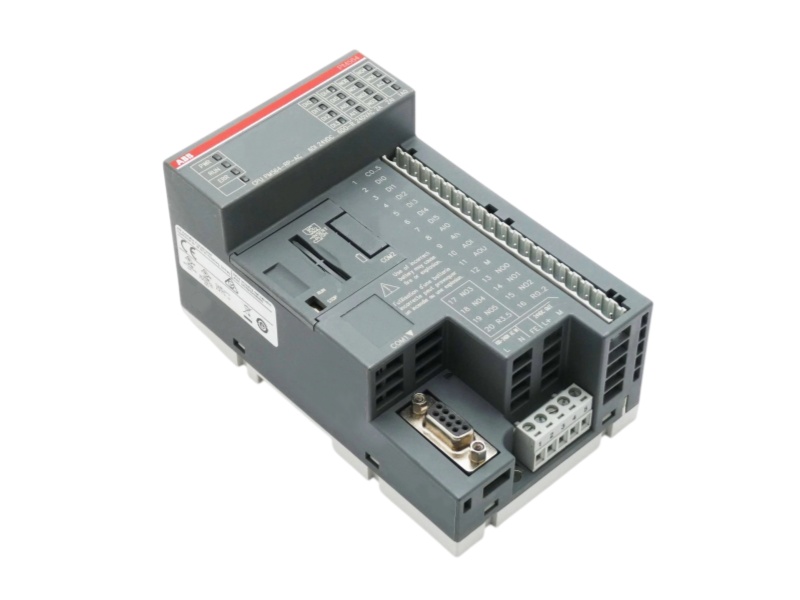

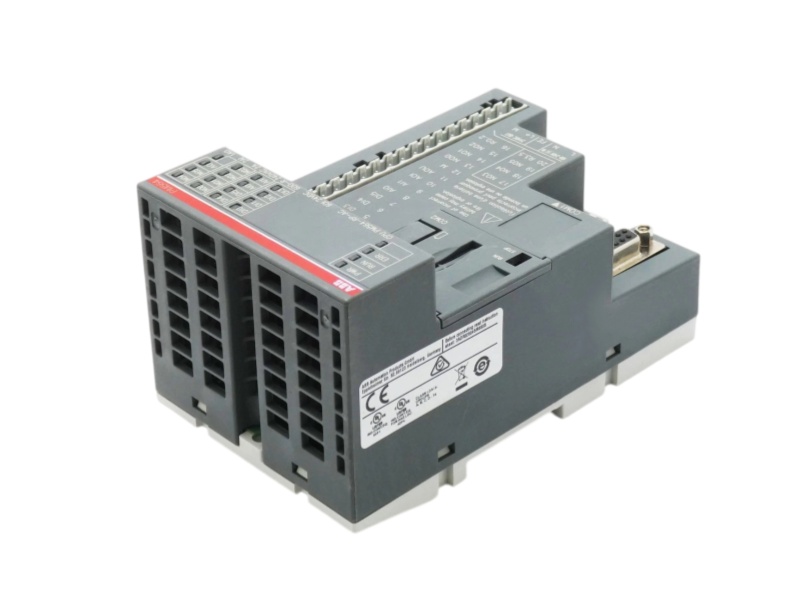

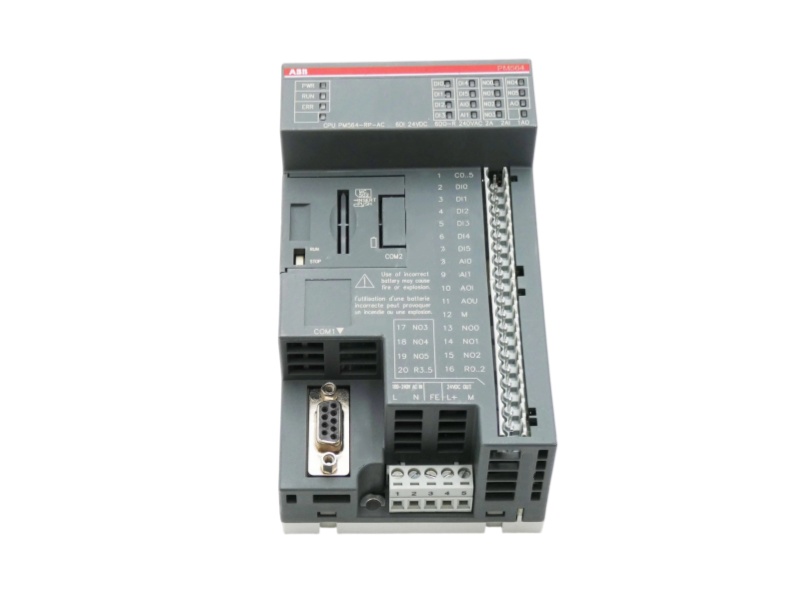

ABB PM564-RP-AC Mixed-I/O Relay Processor

ABB PM564-RP-AC is a 100–240 V AC AC500-eCo processor with 128 kB program memory, six digital inputs, six relay outputs, two analog inputs and one analog output.

Order code 1SAP121100R0001
Supply 100–240 V AC
Digital I/O 6 DI / 6 relay DO
Analog I/O 2 AI / 1 AO
Program memory 128 kB
Lifecycle Active
Order check: Confirm the complete -RP-AC suffix, 100–240 V AC supply, relay load data, analog ranges, terminal-block set, serial interfaces and whether onboard Ethernet is required.
★ Brand New Original
✓ One Year Warranty
✈ Worldwide Shipping
Request a PM564-RP-AC Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number PM564-RP-AC
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

AC-Powered CPU, Memory & Mixed Onboard I/O

Wide-range AC supply, relay outputs, analog channels and 128 kB controller memory.

The PM564-RP-AC configuration combines controller memory, fixed mixed I/O and relay switching in one non-Ethernet AC500-eCo CPU supplied from 100–240 V AC.

Identity, Processor & Power 8 verified fields
Manufacturer ABB
Order code 1SAP121100R0001
Product family AC500-eCo
Module type PLC processor module
Supply voltage 100–240 V AC
Program memory 128 kB Flash EPROM
Integrated data memory 14 kB, 2 kB saved
Execution Cyclic / time-controlled / interrupt
Onboard I/O, Serial Interfaces & Expansion 8 verified fields
Digital inputs 6 × 24 V DC
Digital outputs 6 relays
Relay rating 240 V AC, 2 A resistive
Analog inputs 2 × 0–10 V
Analog output 1 × 0–10 V / 0–20 mA / 4–20 mA
COM1 RS485 onboard
Local I/O modules Maximum 10
Weight 0.400 kg
01
Non-Ethernet AC variantThe exact PM564-RP-AC order code has no onboard Ethernet interface; do not confuse it with PM564-RP-ETH-AC.
02
Relay output constructionSix onboard relay outputs are rated for 240 V AC and 2 A resistive per channel under the specified operating conditions.
03
Flexible analog inputsBoth 0–10 V analog inputs can alternatively be configured as 24 V DC digital inputs when the application requires additional discrete sensing.
04
Serial expansionCOM1 provides RS485 for programming, Modbus RTU, ASCII or CS31 master use; optional COM2 requires an ABB TA562 or TA569 interface accessory.
02

Terminal Blocks, Relay Loads & Controller Migration

A correct replacement requires the existing I/O terminal arrangement, program backup, serial configuration and every relay and analog field circuit to be documented before removal.

Application checkpoints
01
Wide-range AC panelsUse the 100–240 V AC supply variant only where the cabinet power and protection meet ABB's AC500-eCo requirements.
02
Relay load reviewConfirm resistive, inductive or lamp load behavior, switching frequency, inrush and external suppression before reconnecting the six relay outputs.
03
Analog instrumentationTwo 0–10 V inputs and one configurable voltage/current output support compact measurement and control applications without a separate local module.
Conversion checkpoints
01
Terminal blocksABB changed the P-series designation to processor modules supplied without the fixed I/O terminal blocks; verify the required pluggable blocks for the installed wiring.
02
Remote I/O over CS31The onboard RS485 COM1 interface can operate as a CS31 master for supported decentralized I/O when the project and station limits are observed.
03
Project restorationBack up the Automation Builder project, retained data, serial settings and I/O mapping before exchanging the CPU or moving to an Ethernet-equipped variant.
Related ABB PM564 CPU variants for supply, output and Ethernet comparison
PM564-RP-ETH-AC 100–240 V AC · relay outputs · Ethernet
PM564-RP 24 V DC · relay outputs · no Ethernet
PM564-TP 24 V DC · transistor outputs · no Ethernet
PM566-TP-ETH 512 kB · transistor outputs · Ethernet
03

Buyer Questions for ABB PM564-RP-AC

Exact suffix, power, onboard I/O, Ethernet distinction, terminal migration and quotation checks.

01 What exact power and onboard I/O configuration belongs to ABB PM564-RP-AC?
ABB PM564-RP-AC uses a 100–240 V AC supply and provides six 24 V DC inputs, six relay outputs, two 0–10 V analog inputs and one configurable voltage/current analog output.
02 Does ABB PM564-RP-AC include an onboard Ethernet port?
No. The PM564-RP-AC variant has onboard RS485 COM1 but no Ethernet interface. Select and engineer PM564-RP-ETH-AC when integrated Ethernet is required.
03 Can the two analog inputs on ABB PM564-RP-AC be reassigned as digital inputs?
Yes. ABB states that the two 0–10 V analog inputs on PM564 types can be configured as 24 V DC digital inputs; update the program and wiring documentation accordingly.
04 Which expansion and communication options are available for ABB PM564-RP-AC?
ABB permits up to ten centralized S500 or S500-eCo I/O modules. COM1 supports RS485 programming, Modbus RTU, ASCII and CS31 master operation, while COM2 is optional through a supported accessory.
05 What must be checked when replacing the earlier fixed-terminal ABB PM564-R-AC with ABB PM564-RP-AC?
ABB identifies PM564-RP-AC as the successor designation supplied without the fixed I/O terminal blocks. Confirm order code 1SAP121100R0001, obtain the correct pluggable blocks and compare the complete wiring and project configuration.
06 Which PM564-RP-AC details prevent an incorrect ABB quotation?
Send the full -RP-AC model and order code 1SAP121100R0001, nameplate photos, supply voltage, terminal blocks, relay loads, analog ranges, program/communication requirements, quantity and destination.
04

About Company

Global sourcing experience, professional support and long-term automation partnerships.

People · Process · Partnership
Automation support team reviewing an industrial control module
01
Years of Global Experience20+ years of experience supporting automation customers across major international markets.
02
Professional Support TeamExperienced specialists help confirm models, select suitable products and resolve purchasing concerns.
03
Wide Range of BrandsWe supply PLCs, DCS parts, I/O modules, drives, motors, power supplies and communication modules.
04
Large In-Stock InventoryStock includes current, discontinued, obsolete and hard-to-find automation components.
05
Honesty & TrustWe build long-term cooperation through honest communication, responsibility and careful service.
06
Your Trusted Automation PartnerWe support single spare-part requests and complete automation projects worldwide.
05

Transaction Cases

Sincere Cooperation, Long-Term Trust

Three customer journeys showing careful verification, clear communication and repeat cooperation.

Russia 01
A Russian customer urgently needed a replacement for a discontinued automation component. After reviewing the product label, technical parameters, and application details, our engineers recommended a compatible alternative and provided photos and test videos before shipment. The alternative performed well, enhancing the customer's confidence in our technical capabilities and leading to multiple repeat orders.
India 02
An Indian customer still had doubts after initial online communication with us, so they visited our company in person for a face-to-face meeting and product inspection. This visit increased the customer's trust and led to the successful placement of their first order. Over the next few years, we completed multiple orders and established a stable, long-term partnership.
Venezuela 03
A Venezuelan customer needed a specific automation component and compared products and services from several suppliers online. After nearly three weeks of careful consideration, our sincere communication, professional service, and reliable product quality won the customer's trust. After receiving the product and using it for several weeks without any problems, the customer gave us positive feedback and subsequently placed multiple orders.
06

Mixed Automation Model References

Thirty-nine mixed model references selected from the supplied list. Send a full label photo to confirm the manufacturer, revision and configuration before quotation.

Reference set 1 01–13
01
PCO3000AL0CAREL
02
ADAM-5000/TCPAdvantech
03
330130-045-00-05Bently Nevada
04
EY-IO550F001Sauter
05
QUINT-DIODE/40Phoenix Contact
06
BZMB1-A63-BTEaton Moeller
07
MN-S3Schneider Electric Building
08
PXC22-EDSiemens Building
09
EL1809Beckhoff
10
D5014SG.M. International
11
RIA141X-EAEndress+Hauser
12
QBM3020-1DSiemens Building
13
MTL5582BEaton MTL
Reference set 2 14–26
14
1240840000 IE-SW-BL05-5TXWeidmuller
15
VAA-4E4A-G11-ZAJ/EA2L-FPepperl+Fuchs
16
KFD2-UT2-1Pepperl+Fuchs
17
XF824AHoneywell Building
18
QBE63-DP01Siemens Building
19
QBM3020-5Siemens Building
20
MCR-UI-UI_UP-NCPhoenix Contact
21
9251/02-10R. STAHL
22
DDBC320-DALIPhilips Dynalite
23
TC910R1009Honeywell Building
24
127610-01Bently Nevada
25
FP0-E8RSPanasonic
26
CLV422-0010SICK
Reference set 3 27–39
27
04410580Sensus
28
750-341WAGO
29
NZMN1-A100Eaton Moeller
30
PCO3010AL0CAREL
31
EIR608-4SFPRed Lion
32
8013/22-02-43R. STAHL
33
MN-S3-500Schneider Electric Building
34
RL28-55-LAS-2840/47/115BPepperl+Fuchs
35
MTL4031Eaton MTL
36
EDS-G308-TMoxa
37
EL2809-0000Beckhoff
38
DM-TX-4K-302-CCrestron
39
MCR-F-UI-DCPhoenix Contact
