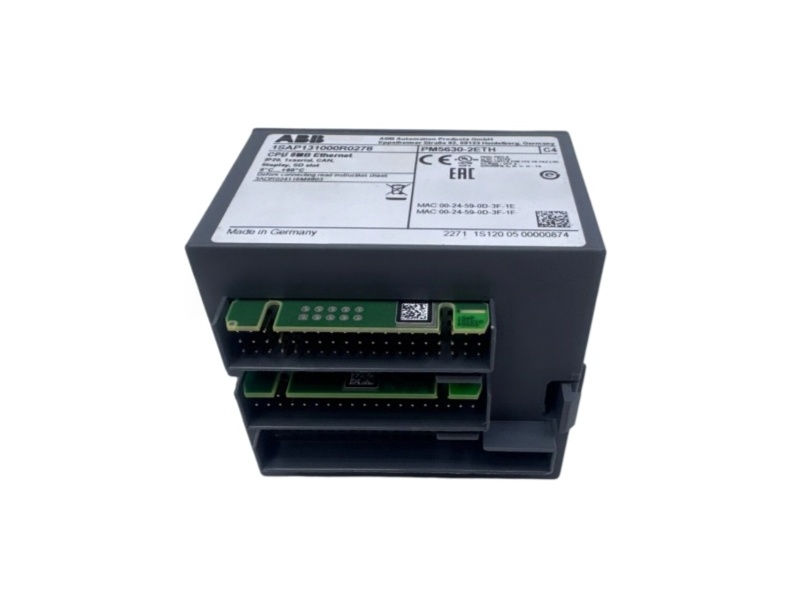

ABB PM5630-2ETH product image front view

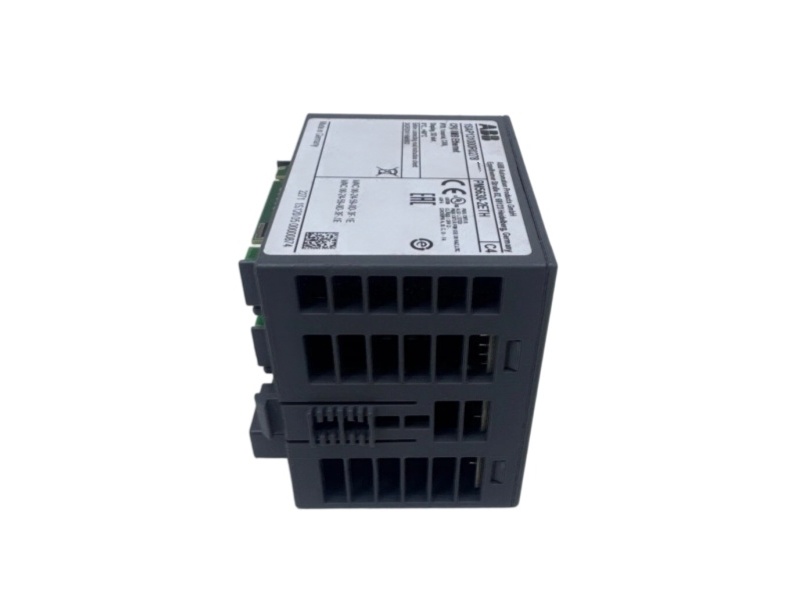

ABB PM5630-2ETH product image detail view
ABB PM5630-2ETH product identification view

ABB PM5630-2ETH AC500 V3 Processor Module with Dual Ethernet, Serial and CAN

ABB · AC500 V3
PM5630-2ETH
ABB PM5630-2ETH is an AC500 V3 processor module with dual Ethernet, configurable serial and CAN communications, display and modular I/O expansion.
Processor
Cortex-A9
User memory
8 MB
Lifecycle
Active revision
Revision-3 article · 0.133 kg · dedicated TB56xx-2ETH terminal base required
Modular PLC CPU
300
MHz processor
Dual independent Ethernet
Serial plus CAN
Display and function keys
INQUIRE NOW
ONE YEAR WARRANTY
FAST DELIVERY
24/7 SERVICE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number PM5630-2ETH
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Processor architecture
Compute, memory and execution resources for the entry AC500 V3 CPU.
ABB-published processor values help distinguish this CPU from higher AC500 performance classes.
01Processor type
TI ARM Cortex-A9
02Clock frequency
300 MHz
03Total RAM
128 MB
04Total flash
128 MB
05User program memory
8 MB
06Downloadable application
Up to 9 MB
07Retain memory
128 kB
08Minimum cyclic task
1 ms
Supply voltage
24 V DC
Country of origin
Switzerland
Catalog weight
0.133 kg
Official lifecycle
Active
Order review
Confirm the installed CPU revision, expansion structure and Ethernet requirements before ordering.
02
Revision-3 migration
Coordinate firmware, terminal base and the upgraded engineering project.
Revision 3 retains the earlier feature set but changes the minimum firmware and toolchain boundary.
ABB states that revision 3 cannot be downgraded below CPU firmware 3.6.0.
01
Identify the order revision
Confirm the R0378 article instead of relying on the PM5630-2ETH type text alone.
02
Update the engineering file
Convert projects created before Automation Builder 2.6.0 and complete a controlled rebuild.
03
Select the terminal base
Use a dedicated TB56xx-2ETH base with the number of communication slots required by the architecture.
04
Synchronize mixed revisions
When revision 2 and revision 3 CPUs share a project, align the application and firmware level to the ABB migration guidance.
Module current, typical
0.110 A
Configured current, max.
0.400 A
Ethernet sockets
2 independent RJ45
Local extension
Up to 10 I/O modules
Official ABB sources: PM56xx data sheet, AC500 V3 hardware documentation and PLC Automation catalog.
03

Buyer decision notes
Questions customers ask about ABB PM5630-2ETH.
Use these answers to assess system fit, engineering continuity and quotation preparation.
Clear, model-specific information for a confident purchasing decision.
What distinguishes ABB PM5630-2ETH revision 3 from the earlier revision 2 article?
Revision 3 uses order code 1SAP131000R0378 and requires newer boot firmware, CPU firmware and engineering software while retaining the feature set of the previous revision.
01
Which terminal base families are valid for ABB PM5630-2ETH?
ABB specifies dedicated TB56xx-2ETH bases. Select the base according to the required communication-module slot count and verify every interface used by the application.
Which automation tasks suit ABB PM5630-2ETH?
It supports modular machine and process control with local S500 I/O, independent Ethernet services, serial devices, CAN/CANopen networks and optional communication modules.
02
Is ABB PM5630-2ETH available as an active manufacturer article?
ABB lists the R0378 revision as Active and the earlier R0278 revision as Classic/replaced. The quotation must state the requested revision and condition.
Can ABB PM5630-2ETH R0378 replace R0278 without engineering changes?
ABB describes the new revision as feature-compatible, but projects made with older tools must be upgraded and all affected CPUs must meet the required firmware level.
03
What should be included in an ABB PM5630-2ETH manual and quote request?
Provide the complete order code, terminal-base type, communication modules, current firmware and project version, condition, quantity, destination and required date.
