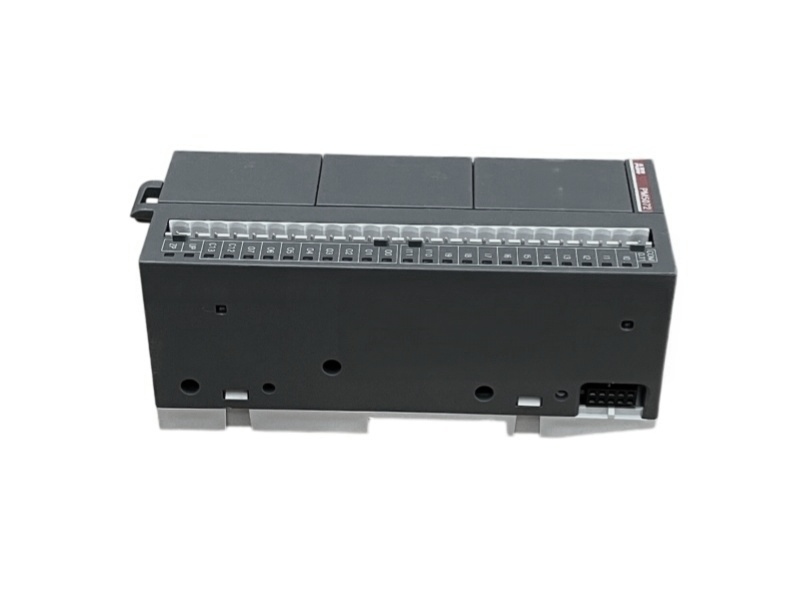

ABB PM5072-T-2ETH product image front view

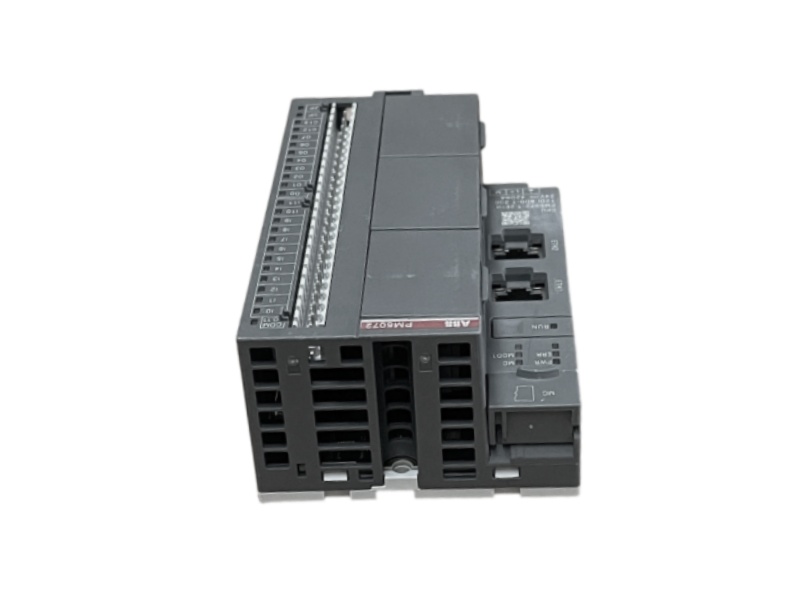

ABB PM5072-T-2ETH product identification view
ABB PM5072-T-2ETH product image detail view

ABB PM5072-T-2ETH AC500-eCo V3 Pro CPU with Dual Ethernet and Transistor I/O

ABB · AC500-eCo V3
PM5072-T-2ETH
ABB PM5072-T-2ETH is an AC500-eCo V3 Pro CPU with integrated transistor I/O, two independent Ethernet interfaces and three option-board slots.
Inputs
12 DI
Outputs
8 transistor DO
Lifecycle
Active revision
Revision-1 order article · 0.265 kg · terminal blocks ordered separately
Compact PLC CPU
8
MB CPU memory
Integrated digital I/O
Dual Ethernet
Three option slots
INQUIRE NOW
BEST PRICE
IN STOCK
FAST DELIVERY
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number PM5072-T-2ETH
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Onboard control resources
Memory, I/O and expansion resources for the Pro CPU.
The selected fields describe the processor itself rather than optional accessories.
01Total CPU memory
8 MB
02Program code and data
1 MB
03Web memory maximum
7 MB
04Digital inputs
12
05Transistor outputs
8
06Configurable DC channels
2
07Independent Ethernet
2 interfaces
08Option-board capacity
3 slots
Supply voltage
24 V DC
Country of origin
Switzerland
Catalog weight
0.265 kg
Official lifecycle
Active
Order review
Confirm the installed CPU revision, Ethernet architecture and terminal requirements before ordering.
02
Machine-control integration
Structure local I/O, Ethernet paths and option boards as one compact controller.
Programming revision, terminal blocks and thermal orientation are part of a reliable replacement plan.
ABB revision-1 CPUs require Automation Builder 2.6.0 or later and firmware 3.6.0 or later.
01
Confirm the revision
Read the full ABB order code because revision 0 and revision 1 share the same front type designation.
02
Separate network duties
Assign the two Ethernet interfaces to the required controller, visualization or service paths in the project.
03
Fit the required terminals
Order and wire the processor terminal-block set; it is necessary and not included as an interchangeable loose assumption.
04
Validate the application
Upgrade and rebuild older projects before commissioning the revision-1 CPU in the target machine.
Minimum instruction time
0.02 μs bit / word
Floating-point time
0.6 μs
Local I/O extension
Up to 10 modules
Motion capability
Up to 4 PTO axes
Official ABB sources: current PM5072 product record, AC500-eCo V3 hardware manual and PLC Automation catalog.
03

Buyer decision notes
Questions customers ask about ABB PM5072-T-2ETH.
Use these answers to review control capacity, software alignment and procurement details.
Clear, model-specific information for a confident purchasing decision.
Which ABB order-code revision should be checked for PM5072-T-2ETH?
The current revision-1 article is 1SAP124500R0173, while revision 0 used 1SAP124500R0073. Confirm the complete side label because the visible type name is shared.
01
Can an older Automation Builder project run unchanged on ABB PM5072-T-2ETH revision 1?
ABB requires revision-1 AC500-eCo V3 CPUs to use Automation Builder 2.6.0 or later and firmware 3.6.0 or later, so older projects should be upgraded and validated.
What is a typical application for ABB PM5072-T-2ETH?
It suits compact machine control that benefits from onboard digital I/O, separated Ethernet tasks, local expansion and optional communication or signal boards.
02
How should buyers interpret the lifecycle of ABB PM5072-T-2ETH?
ABB lists revision 1 as Active and revision 0 as Classic/replaced. Quotations should identify the exact revision, condition and delivery requirement.
Can ABB PM5072-T-2ETHW be substituted for ABB PM5072-T-2ETH solely by type similarity?
No. The W variant has a distinct order code and extended environmental rating. Confirm the operating range, coating, project hardware and certification needs before substitution.
03
Which documents and project details support an ABB PM5072-T-2ETH quotation?
Request the AC500-eCo V3 hardware manual and provide the full order code, firmware, Automation Builder version, I/O plan, condition, quantity, destination and required date.
