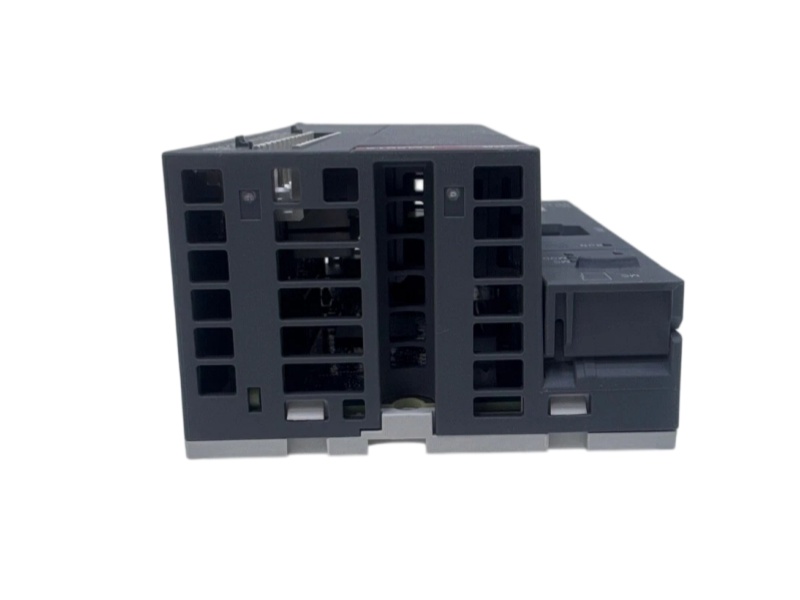

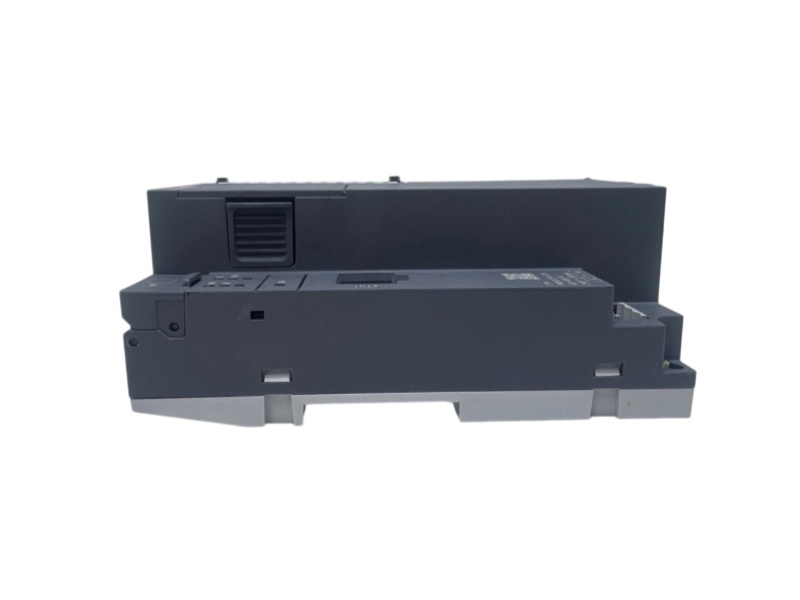

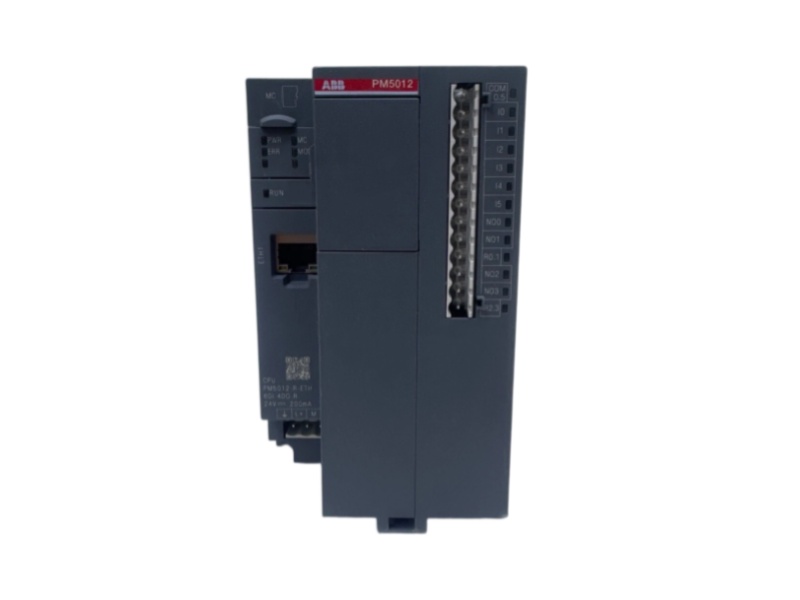

ABB PM5012-R-ETH 1 MB Ethernet Relay CPU

ABB PM5012-R-ETH is a 24 V DC AC500-eCo V3 processor with 1 MB user-program memory, one Ethernet interface, six digital inputs and four normally open relay outputs.

Order code 1SAP122700R0172
Program memory 1 MB
Onboard inputs 6 DI
Relay outputs 4 NO
Ethernet 1 × RJ45
Lifecycle Active
Order check: Confirm revision R0172, Automation Builder compatibility, 24 V DC supply, relay load category, Ethernet services, option board and non-extendable I/O scope.
★ Brand New Original
✓ One Year Warranty
✈ Worldwide Shipping
Request a PM5012-R-ETH Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number PM5012-R-ETH
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Processor, Memory & Onboard Relay I/O

One-megabyte CPU, fixed relay I/O, Ethernet and current R0172 revision.

This exact revision combines an entry-level AC500-eCo V3 CPU with fixed onboard digital I/O, relay outputs, Ethernet and one option-board slot.

Identity, CPU & Memory 8 verified fields
Manufacturer ABB
Order code 1SAP122700R0172
Product family AC500-eCo V3
Processor TI ARM Cortex-A9 32-bit RISC
Clock frequency 300 MHz
User program memory 1 MB
RAM / Flash 128 MB / 128 MB
Supply 24 V DC
Onboard I/O, Ethernet & Expansion 8 verified fields
Digital inputs 6 × 24 V DC
Digital outputs 4 normally open relays
Relay voltage 24 V DC or 100–240 V AC
Relay current 2 A maximum per channel
Ethernet 1 × RJ45
Option-board slots 1
Local I/O extension Not extendable
Net weight 0.235 kg
01
Current hardware revisionUse order code 1SAP122700R0172 for the current revision described in ABB's 2026 catalog; do not omit the order-code suffix when matching hardware.
02
Relay output groupsThe four normally open relay outputs are arranged in two groups of two and are galvanically isolated from the controller logic according to ABB data.
03
Fixed onboard I/OThe CPU is not extendable with local S500-eCo modules. Select a larger PM50x2 CPU when the application requires local expansion.
04
Engineering environmentConfigure and download the controller with a compatible Automation Builder release and firmware; archive the original project before replacing an earlier hardware revision.
02

Revision Migration & Load Compatibility

Successful replacement depends on the complete R0172 order code, software and firmware baseline, fixed I/O map and the voltage, current and load category of every relay circuit.

Application checkpoints
01
R0072 to R0172 projectsABB replaced the earlier R0072 hardware with R0172. Review the official migration note and use Automation Builder 2.6.0 or later for supported conversion.
02
Relay load verificationCheck AC or DC voltage, steady current, inrush, inductive suppression and required electrical life against the official relay-output data.
03
No transistor outputsThis R-ETH variant has four relay outputs. PM5012-T-ETH is the corresponding transistor-output model and is not wiring-equivalent.
Conversion checkpoints
01
Single Ethernet interfaceThe CPU provides one RJ45 Ethernet interface for supported online access and controller communication services.
02
Option-board scopeOne option-board slot can add a supported serial or other option function, but it does not make the CPU locally I/O-extendable.
03
Backup before replacementExport the controller project, record firmware and IP configuration, identify all relay loads and confirm persistent data requirements before exchanging the CPU.
Related ABB AC500-eCo V3 CPUs for I/O and capacity comparison
PM5012-T-ETH 1 MB · 6 DI · 4 transistor DO
PM5032-R-ETH 2 MB · expandable · relay outputs
PM5052-R-ETH 4 MB · expandable · relay outputs
PM5012-R-ETH R0072 Earlier hardware revision · migration review required
03

Buyer Questions for ABB PM5012-R-ETH

Revision, relay loading, expansion, Ethernet, software and quotation checks.

01 Which order-code revision identifies the current ABB PM5012-R-ETH hardware?
ABB's current product page and 2026 catalog list 1SAP122700R0172. Include the R0172 suffix in every purchase and migration check because earlier R0072 hardware has different lifecycle and engineering requirements.
02 Can ABB PM5012-R-ETH drive both AC and DC loads through its relay outputs?
ABB rates the four normally open relays for 24 V DC or 100–240 V AC applications, up to 2 A per channel under stated conditions. Verify load category, inrush, suppression and electrical life.
03 Can ABB PM5012-R-ETH be expanded with local S500-eCo I/O modules?
No. ABB identifies PM5012-R-ETH as not extendable. It has six onboard digital inputs, four relay outputs and one option-board slot; choose another CPU family member when local I/O expansion is required.
04 Is ABB PM5012-T-ETH a direct replacement for ABB PM5012-R-ETH?
No. PM5012-T-ETH uses transistor outputs, while PM5012-R-ETH uses normally open relay outputs. Output wiring, voltage, current, load behavior and program assumptions must be reviewed.
05 What software check is required when migrating an older ABB PM5012-R-ETH R0072 CPU?
ABB's revision guidance requires the supported Automation Builder and firmware baseline; use Automation Builder 2.6.0 or later for the R0172 migration workflow and preserve the original project backup.
06 Which information should accompany a quote request for ABB PM5012-R-ETH?
Send order code 1SAP122700R0172, existing revision and firmware, Automation Builder version, IP configuration, relay-load details, option board, quantity, destination and required delivery date.
