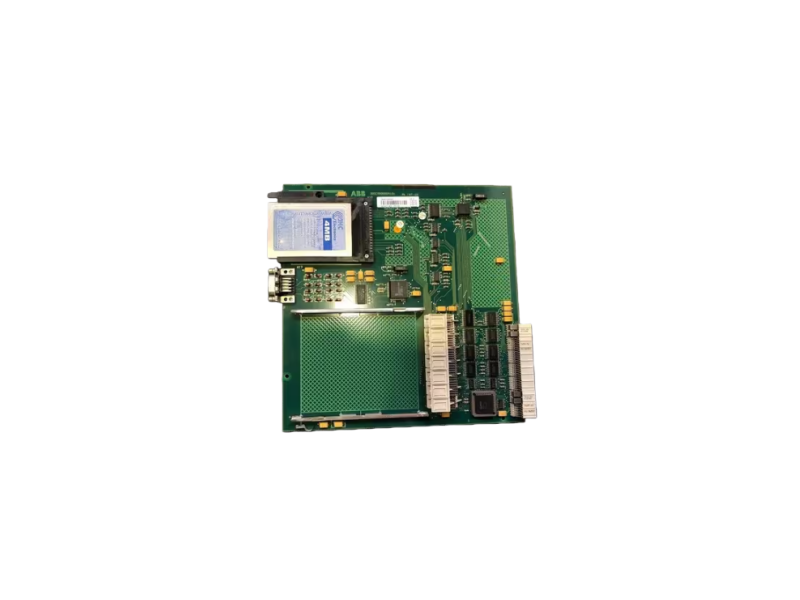

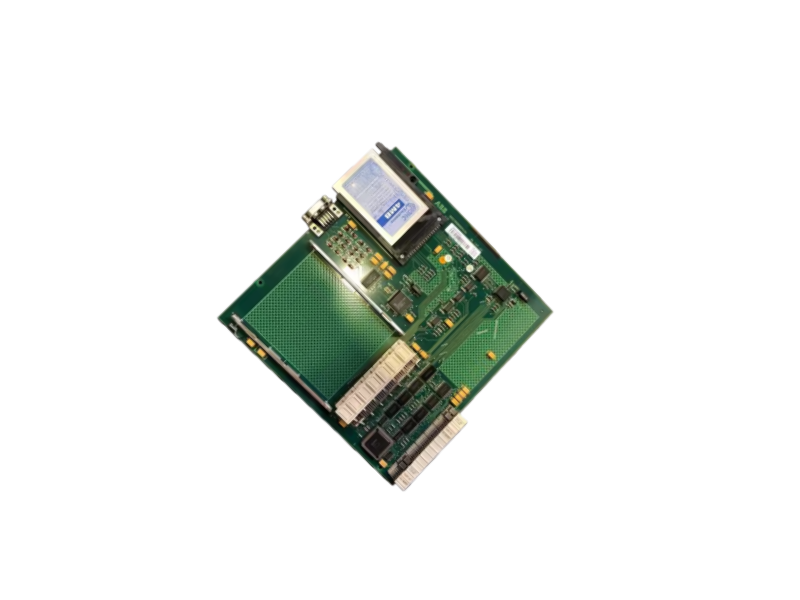

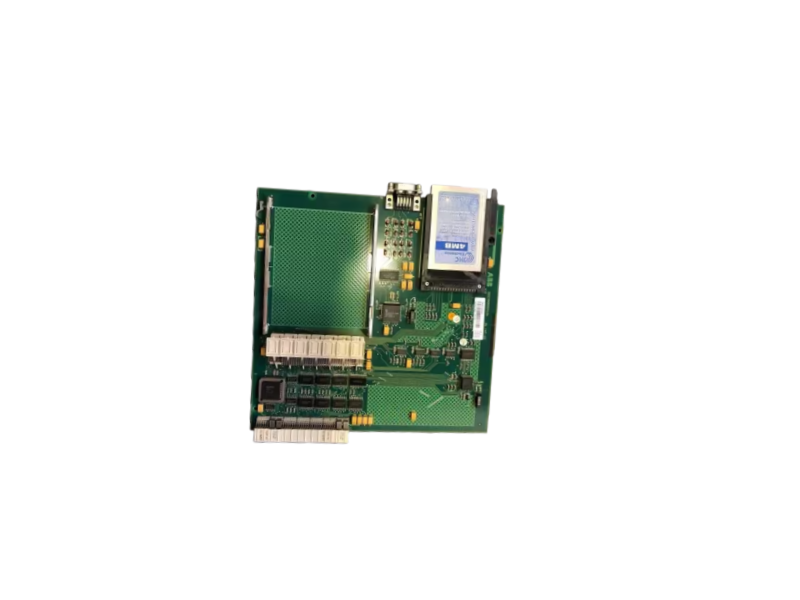

ABB PM152 3BSE003643R1 analog output module

PLC Autocontroller |20 years of experience specializing in automation equipment

PM152 3BSE003643R1|analog output module

PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs

Product Overview

The ABB PM152 3BSE003643R1 is a high-performance analog output module in the ABB AC800F Freelance automation control system. It is primarily used to convert digital signals in the control system into analog voltage or current signals required in the industrial field, thereby driving valves, actuators, motor regulators, and other analog control equipment.

The PM152 adopts a modular industrial design, supports high-precision analog output and high-speed real-time control, and possesses excellent anti-interference capabilities and long-term stable operation performance. It is widely used in power, petrochemical, water treatment, metallurgical, and industrial process control systems.

Technical parameters

Brand: ABB

Product Model: PM152

Order Number: 3BSE003643R1

Product Type: Analog Output Module

System Platform: ABB AC800F Freelance

Function: Digital signal to analog output conversion

Output Channels: 8 analog outputs

Output Mode: Voltage/current output

Resolution: 12 or 16 bit

Communication Method: S800 Bus

Mounting Method: DIN rail mounting

Key Features:

High-Precision Analog Output Control

The PM152 accurately converts digital signals from the controller into analog outputs, supporting 0–10V and 4–20mA industrial standard signals to meet the needs of complex process control.

Fast Response Capability

The module features high-speed real-time response performance, enabling stable control of valves, actuators, and motor regulating equipment, improving system operating efficiency.

Industrial-Grade Reliability Design

Utilizing an industrial-grade EMC anti-interference structure and highly reliable electronic components, it can operate stably for extended periods in high-temperature, vibration, and complex industrial environments.

Flexible System Expansion

Supporting the ABB S800 bus architecture, it can be combined with multiple PM152 modules to expand analog output capacity, suitable for large-scale automated control systems.

Built-in Diagnostic Functions

The module integrates condition monitoring and fault diagnosis functions, reducing maintenance costs and improving system maintainability.
