Product Overview

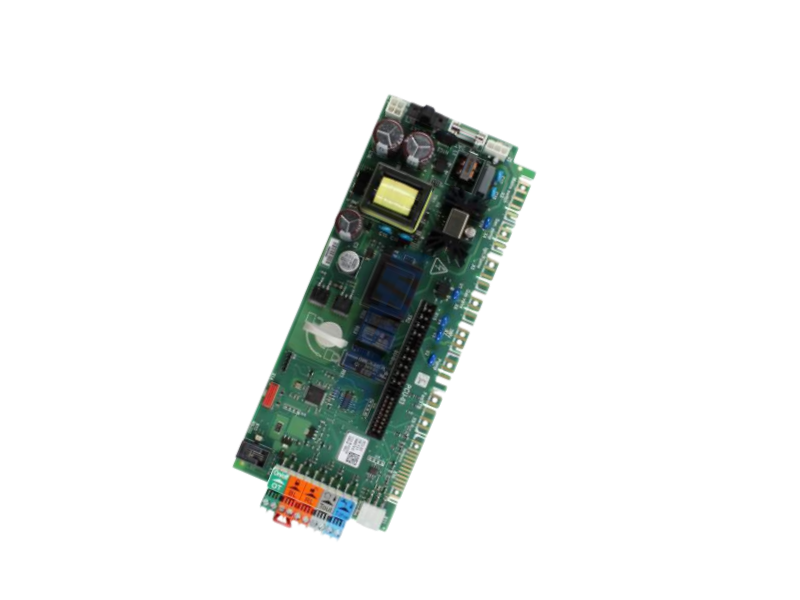

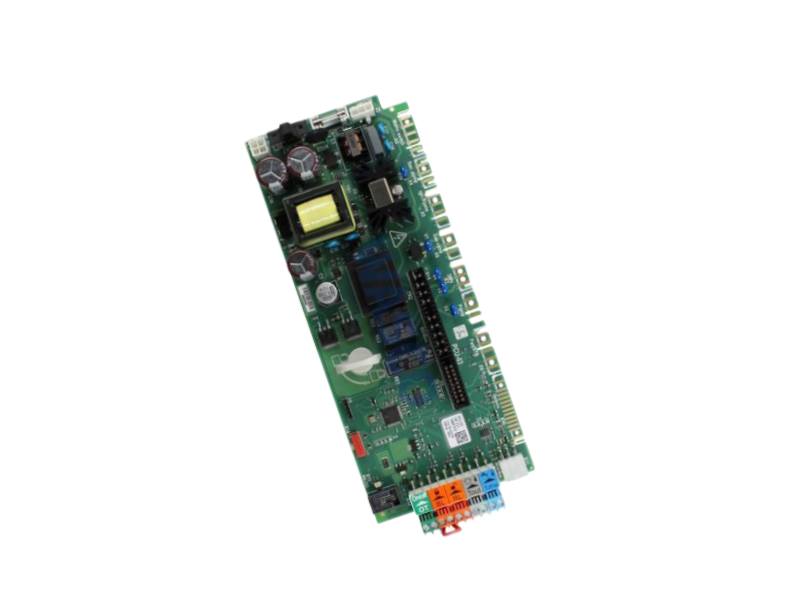

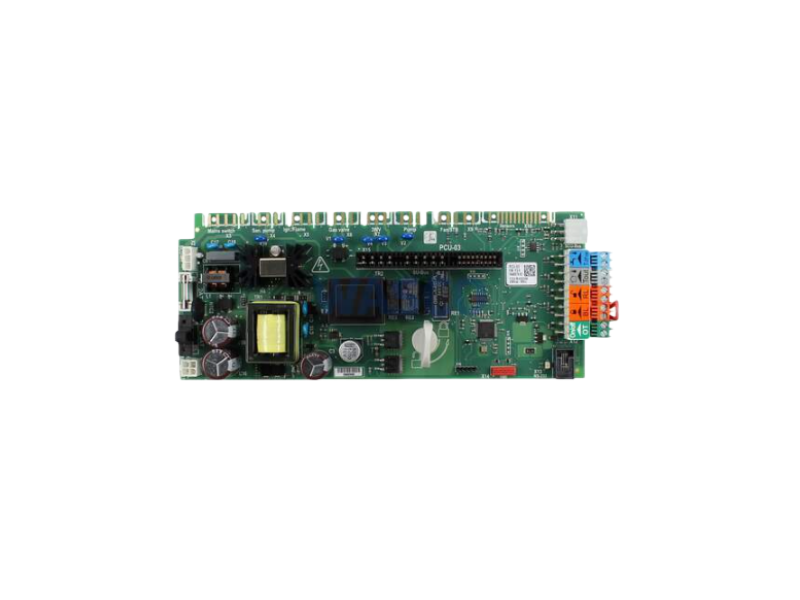

The ABB PCU-03 is a cabinet purge and pressurization control module used in ABB robot control systems and industrial automation cabinets. It is designed to maintain a safe operating environment inside electrical enclosures installed in hazardous areas by controlling purge cycles and maintaining positive internal pressure.

By ensuring that flammable gases or dust cannot enter the control cabinet, the PCU-03 plays a critical safety role in ABB robotic systems (such as paint robots and process automation cells) used in explosive or high-risk industrial environments.

The module typically manages automatic purge sequences, pressure monitoring, and safety interlocks, making it essential for explosion-protected control systems in industries such as oil & gas, chemical processing, and automotive paint lines.

Technical parameters

Manufacturer: ABB

Model: PCU-03

Product Type: Purge/Pressure Control Module

Function: Cabinet purge control and pressure monitoring

Operating Principle: Pre-purge → Pressure boost → Safe operation hold

Control Output: Relay output for purge valve control

Safety Functions: Overvoltage/Undervoltage protection

Indicator Lights: Power/Purge/Purge Completed/Fault Indicator Light

Adjustment: Adjustable purge time (typical range 1-999 seconds, depending on version)

Mounting Method: DIN rail/panel (depending on system)

Communication Method: System integrated I/O control (varies by configuration)

Application System: ABB robot controller (IRC/Trallfa/S4 system)

Operating Environment: Industrial hazardous areas (applicable to different protection levels of cabinets depending on the system)

Key Features:

Explosion Safety Protection

Ensures safe operation of control cabinets in environments with flammable gases or dust by maintaining positive pressure inside the enclosure.

Automated Purge Control

Manages full purge cycles automatically before system startup, reducing human error and improving operational safety.

Real-Time Status Indication

LED indicators provide immediate feedback on purge status, fault conditions, and system readiness for fast troubleshooting.

Reliable Industrial Operation

Designed for continuous use in harsh environments such as paint booths, refineries, and heavy industrial automation cells.

Easy Integration

Works directly within ABB robot controller architectures, especially cabinet-based systems requiring certified purge protection.
