Description:IMSET01 — ABB INFI 90 system module for high-precision millisecond event timestamping and sequence-of-events recording in industrial automation application
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | IMSET01 |
| Country of Origin | Sweden |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 years of excellence in industrial automation parts supply

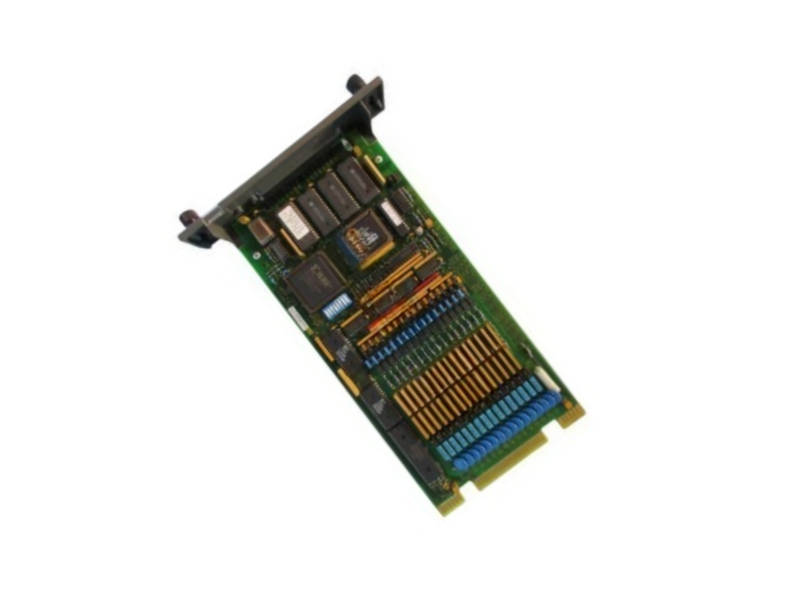

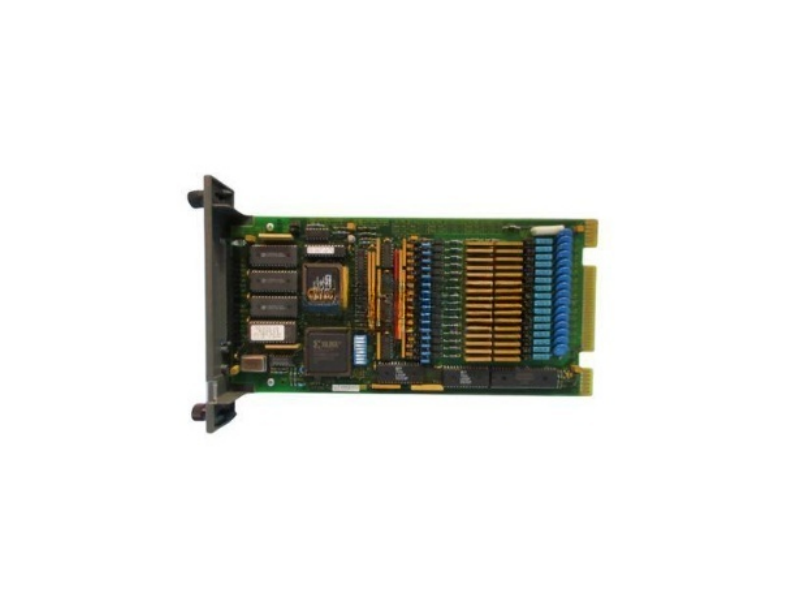

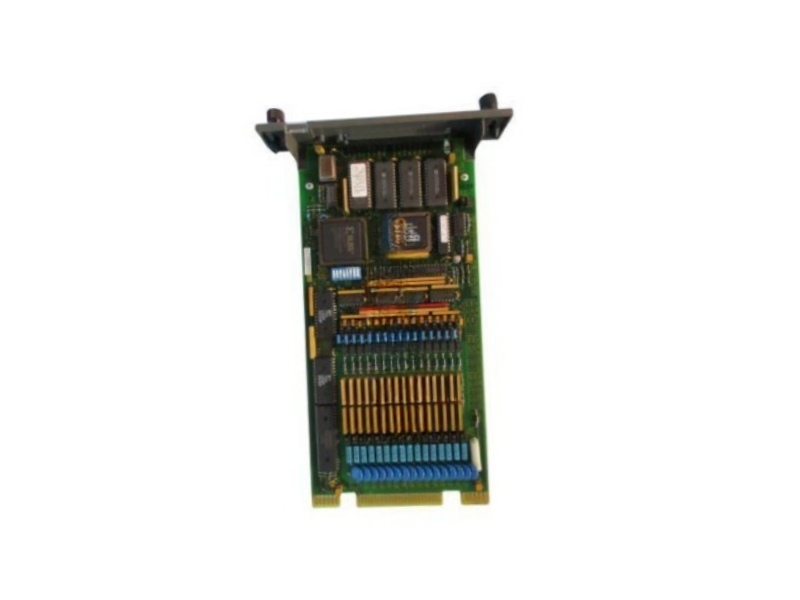

IMSET01 |Sequence of Event Time Keeper Module
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
Product Overview
The ABB IMSET01 is a Sequence of Event Time Keeper Module in the ABB Bailey/Infi 90 system, used for event acquisition, timestamping, and sequence analysis in industrial automation systems.
This module can perform high-precision time stamping on digital input signals, achieving millisecond-level event sequencing and synchronization. It is a critical data logging component in power systems, process control, and DCS systems.
The IMSET01 typically works in conjunction with the IMSED01 input module and system controller to build a complete SOE (Sequence of Events) event logging architecture.
Technical Specifications
Brand: ABB
Model: IMSET01
Product Type: Sequence of Event Time Keeper Module
System Platform: ABB Bailey Infi 90 / Symphony
Functions: Time synchronization / Event sequencing / SOE recording
Input Channels: Supports multiple digital event inputs (typical 16-channel system architecture)
Time Resolution: 1 ms
Communication Method: Communicates with the controller system's internal bus
Time Synchronization Method: Supports system clock / GPS / IRIG-B (depending on system architecture)
Installation Method: Rack plug-in installation
Operating Temperature: 0°C ~ 60°C
Storage Temperature: -40°C ~ 85°C
Key Advantages
High-Precision Event Timing Recording: The IMSET01 can record millisecond-level timestamps for switch signals in industrial environments, enabling high-precision SOE (Sequence of Events) analysis.
System-Level Time Synchronization: The module can synchronize with the system clock or an external time source, ensuring event timing consistency across multiple devices.
Powerful Fault Diagnosis Capabilities: Through event sequence analysis, equipment fault points can be quickly located, improving system maintenance efficiency.
High-Reliability Industrial Design: Suitable for environments with high electromagnetic interference, meeting the long-term stable operation requirements of critical industrial scenarios such as power and petrochemical industries.
Deep Integration with ABB DCS: Seamlessly integrates with ABB Infi 90 / Symphony control systems for unified data acquisition and management.
