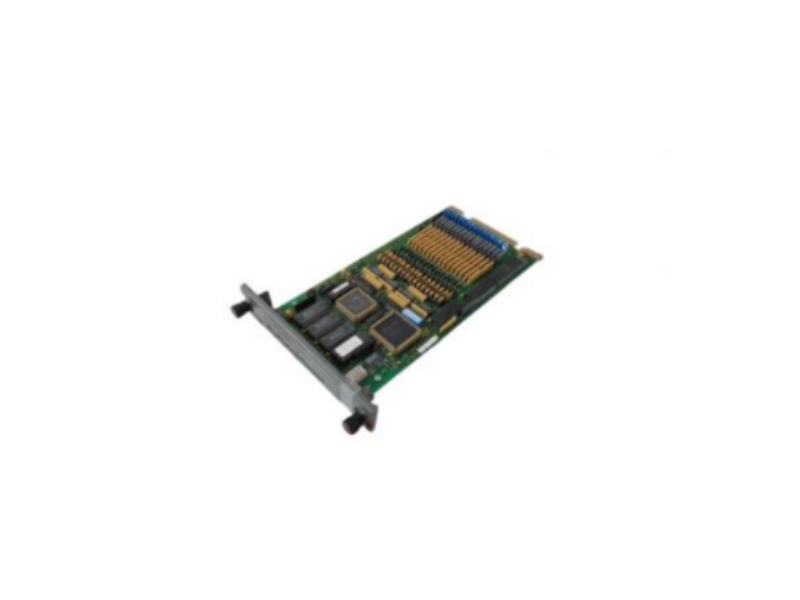

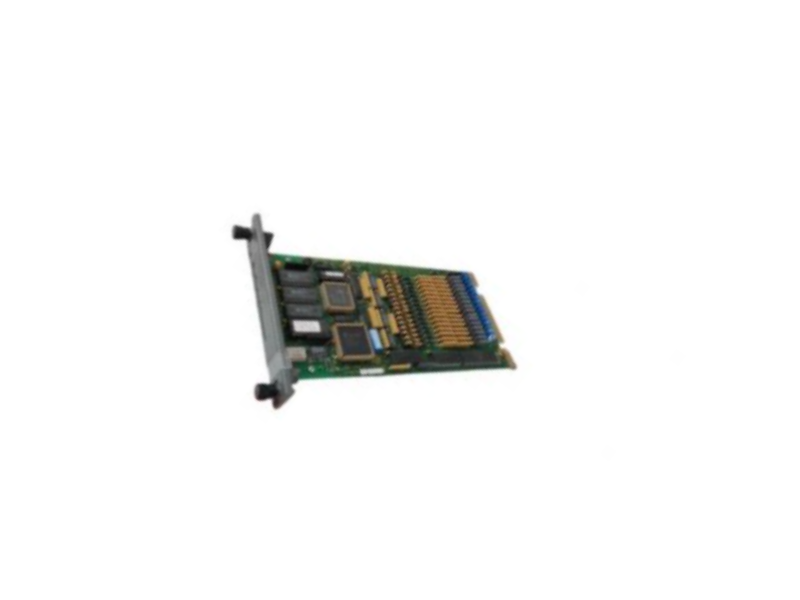

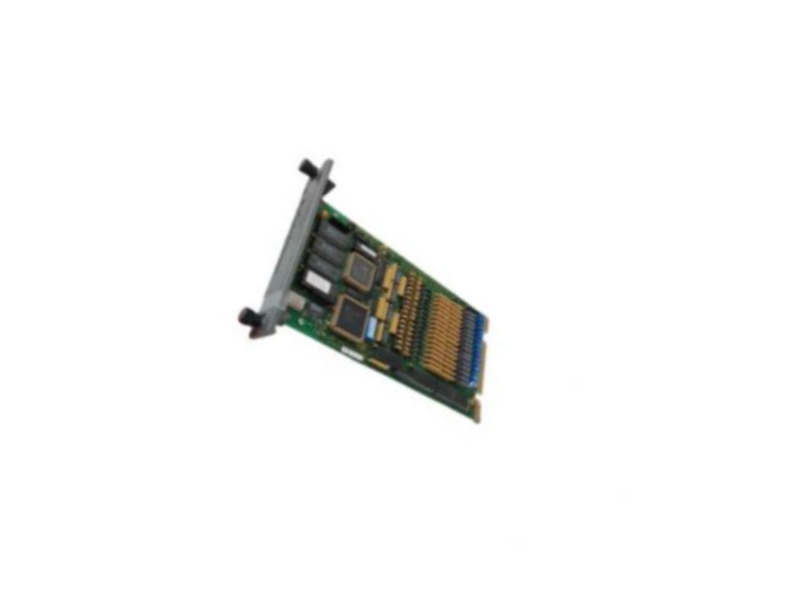

Description:IMSED01 — ABB INFI 90 Sequence of Events digital input module providing 16-channel high-speed signal acquisition with millisecond-level time-stamped event recording for industrial control systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | IMSED01 |
| Country of Origin | Sweden |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
IMSED01 |Digital Input Module
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview
The ABB IMSED01 is a Sequence of Events Digital Input Module (SIO) in the ABB Bailey/Infi 90/Symphony system. It is used to acquire field switch signals and perform millisecond-level time recording and sequence analysis of events.
This module is typically used in conjunction with the IMSET01 time synchronization module and is a core data acquisition unit in the SOE (Sequence of Events) system, used for event recording and fault tracing in industrial processes.
Core Specifications
|
Parameter |
Specification |
|
Model: |
IMSED01 |
|
Manufacturer: |
ABB |
|
Product Type: |
Sequence of Events Digital Input Module |
|
System Platform: |
ABB Bailey Infi 90 / Symphony / Harmony |
|
Number of Channels: |
16 digital inputs |
|
Response Time: |
< 1 ms |
|
Time Resolution: |
1 ms |
|
Signal Filtering: |
Supports anti-jitter/filtering |
Product advantages
High-Speed Event Acquisition
The IMSED01 captures digital signal changes within millisecond-level response times, achieving high-precision SOE event recording.
Multi-Signal Compatibility
Supports multiple industrial signal inputs, including 24V/48V/125V DC, adapting to various field devices.
Event Sequence Analysis Capability
Used in conjunction with the IMSET01, complete event time synchronization and sequence reconstruction can be achieved.
High-Reliability Industrial Design
Suitable for environments with strong electromagnetic interference, ensuring long-term stable operation.
Modular System Integration
Can be flexibly expanded for use in ABB Infi 90/Symphony/Harmony systems.
