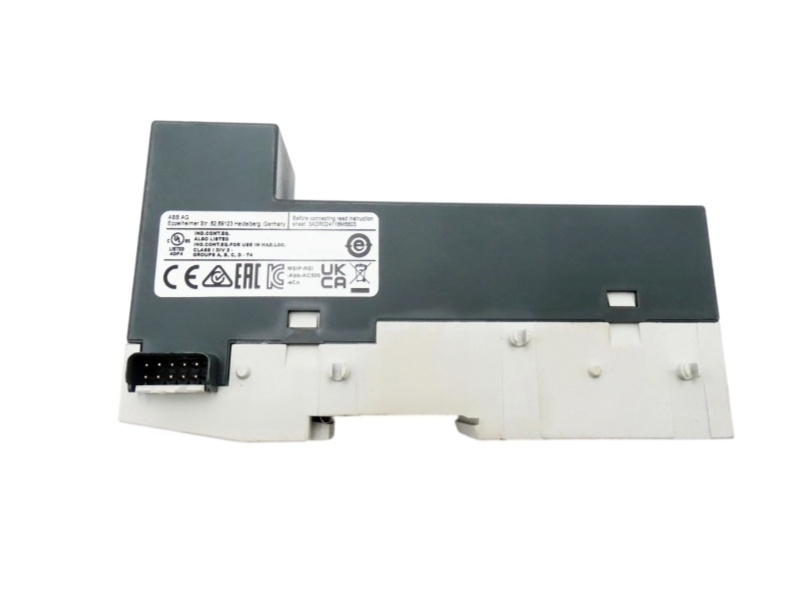

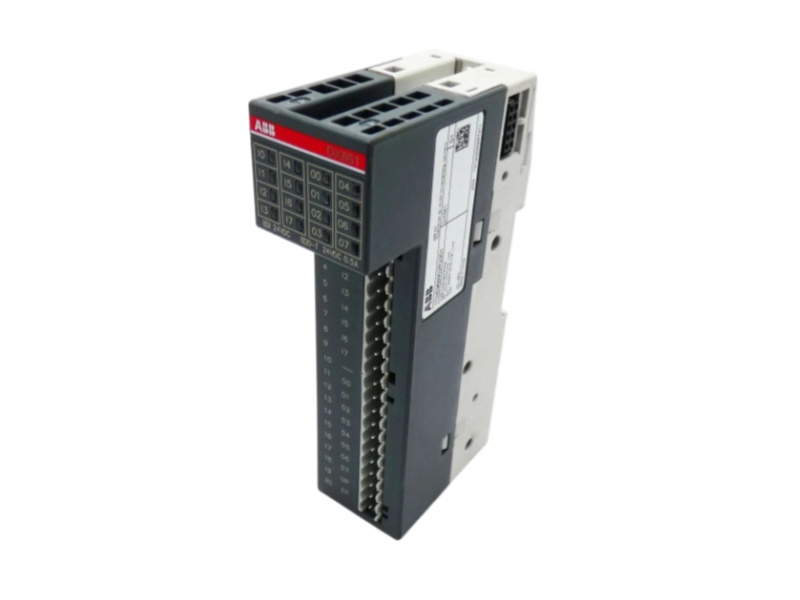

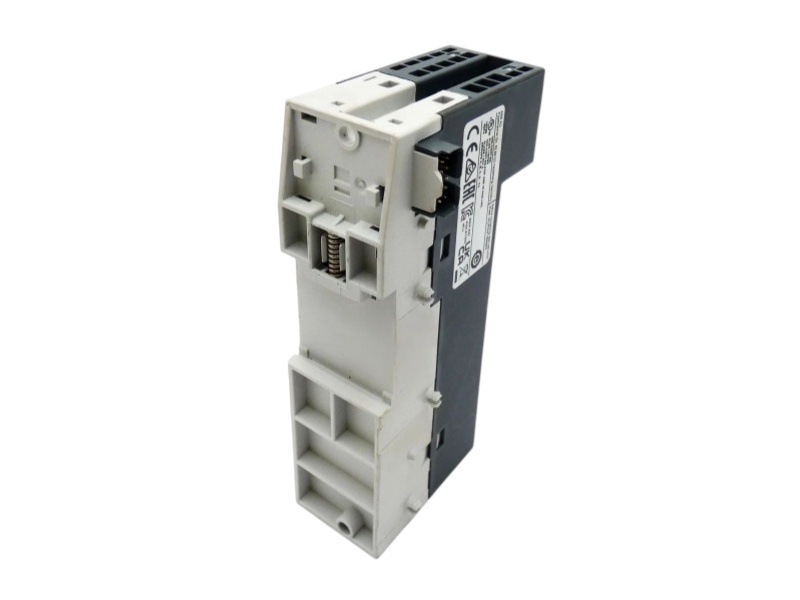

Name: ABB DX561 S500-eCo Digital I/O Module
Availability: InStock

Product information

DX561 Signal Architecture at a Glance

Field-side input data and load-side output data are organized as separate commissioning references.

Input Group

GROUP 1

Channel assignmentI0-I7

Signal voltage24 V DC

Input currentTypically 5 mA

Input delayTypically 8 ms

Accepted wiringSource or sink

FIELD REVIEW I/O INPUT · DATA · OUTPUT

Read the two electrical data sets independently when planning the cabinet.

Output Group

GROUP 2

Channel assignmentO0-O7

Switching deviceTransistor

Rated channel load0.5 A

Group limit4 A maximum

MODULE ROLE

The input and output domains are galvanically isolated group by group.

16Front status indicators

500 mShielded signal cable limit

150 mUnshielded signal cable limit

Plan the Right DX561 Installation

Hardware selection, protection and system matching are separated into independent decisions.

INTEGRATION & PROTECTION

01Accessories ordered separately

Field terminal blocks are not supplied with the electronics module and must be selected as separate accessories.

02External field supply

Feed output load power through UP at terminal 19 and ZP at terminal 20; module logic power is supplied by the I/O bus.

03Mandatory output protection

Outputs are not short-circuit or overload protected. ABB specifies an external 3 A fast-protection fuse.

04Inductive-load planning

Provide external demagnetization for inductive loads and observe the official switching-frequency limits.

05Power-off servicing

Do not connect, remove or replace terminal blocks or the module while energized; hot swap is not supported.

06Supported expansion roles

Use the module only with a central CPU or remote communication interface listed as compatible in the ABB system documentation.

IDENTIFYRecord the installed hardware revision and project slot.

COMPAREReview the cabinet drawings before selecting replacement parts.

APPROVEComplete an engineering review before the site changeover.

ABB DX561 Buyer FAQ & Ordering Guide

Practical guidance that helps buyers review requirements and move forward with confidence.

Q01

Is ABB DX561 still listed as an active product?

ABB currently includes ABB DX561 in its active-product documentation. An active listing is not a real-time stock promise, so current supply should be confirmed in the quotation.

Q02

Has ABB announced a direct drop-in replacement for ABB DX561?

No direct drop-in successor is identified in the cited official material. DI561, DO561 and DC562 are functionally different configurations and require a fresh engineering review.

Q03

Which official documents should be requested for ABB DX561 engineering work?

Request the matching product data sheet, system hardware manual and installation instructions. Use the document revision that applies to the installed station when approving maintenance or migration work.

Q04

Which records should be retained before removing ABB DX561 from an existing panel?

Save the controller project, slot assignment, I/O mapping and cabinet wiring drawings. Capture readable nameplate and as-installed wiring photographs before decommissioning the unit.

Q05

What should buyers inspect when ABB DX561 is received?

Compare the nameplate with the order confirmation, inspect the housing and connection points, verify the listed accessories and retain arrival-condition photographs before installation.

Q06

How can a customer start an ABB DX561 availability or documentation inquiry?

Use the e-mail or WhatsApp option in the final contact section. The sales team can return the current commercial response and available technical documentation for review.
