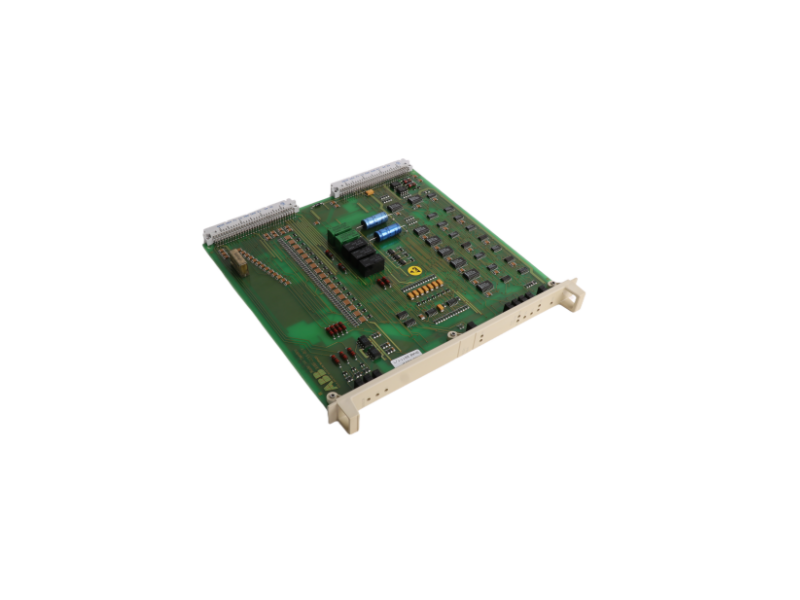

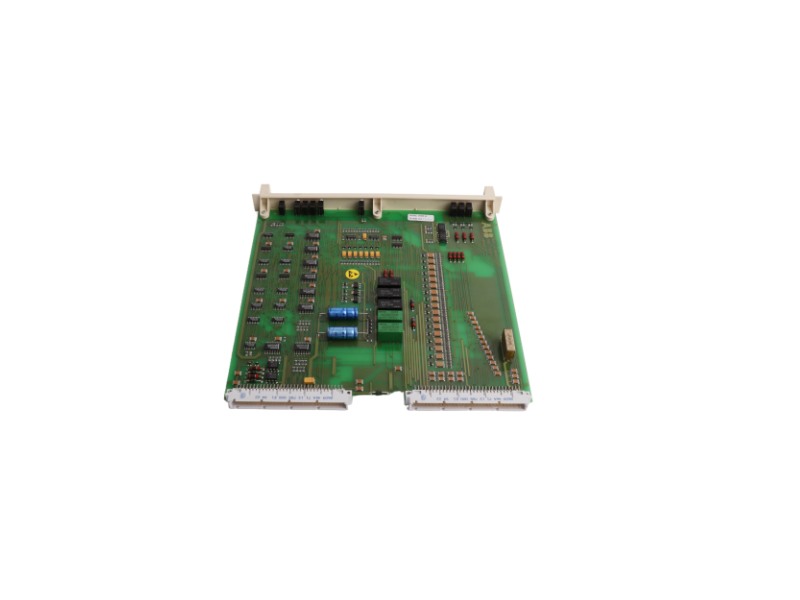

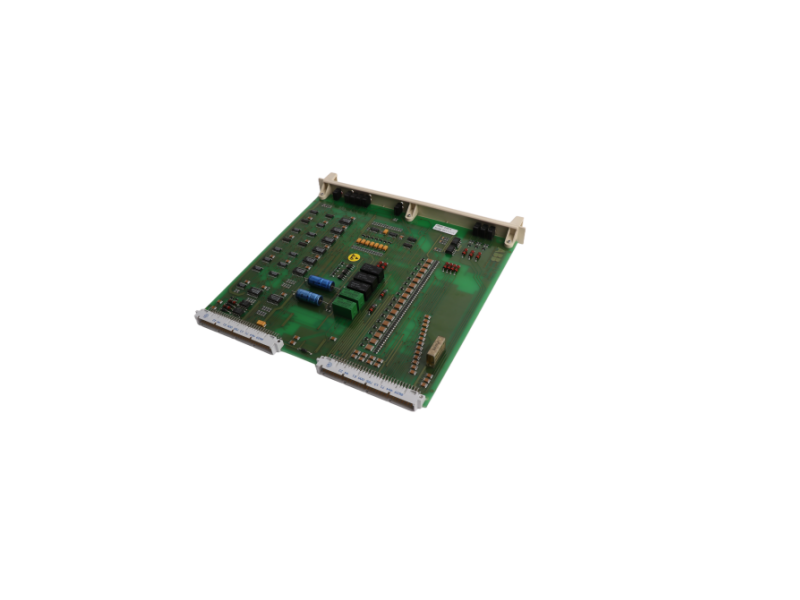

Description:DSQC256A 3HAB2211-1 Sensor Module Board
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | DSQC256A 3HAB2211-1 |
| Country of Origin | Sweden |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Robotics & Motion-Control Expertise
Data Sheet: ABB DSQC256A 3HAB2211-1 Axis & I/O Control Module
Purpose & Position
DSQC256A (part no. 3HAB2211-1) is a multi-function control card used inside ABB S3 / S4 robot controllers. It hosts motion algorithms, servo-loop closure, and mixed I/O interfacing for up to 6 axes and 16 digital channels, all on a single 3U Eurocard.
Distinctive Features
• One-card motion + I/O – reduces rack slots by 30 % compared to separate axis and I/O cards.
• Absolute encoder battery backup – retains robot position for > 48 h after power loss.
• Hot firmware reload – firmware update via serial port without removing the card.
• Spring-cage terminals – accept 0.2–2.5 mm² wire, no ferrules needed.
Typical Applications
• IRB 140 / IRB 2400 welding cells
• IRB 4400 palletizing lines
• IRB 6400 press-tending systems
• Retrofit of legacy S3/S4 controllers to extend service life
Ready-to-Ship Related Modules
|
Function |
Part Number |
Note |
|
Axis Card |
3HAB2211-1 |
DSQC256A (this SKU) |
|
I/O Expander |
3HAB2211-8/1 |
DSQC256B – adds 16 more digital I/O |
|
Encoder Cable |
3HAC031851-001 |
5 m motor-resolver lead |
|
Power Supply |
3HAC029157-002 |
24 V DC, 5 A DIN-rail |
|
Teach Pendant Cable |
3HAC028357-027 |
10 m pendant-to-controller |
|
Battery Pack |
3HAC044075-001 |
3-cell lithium for absolute encoder |
All items are factory-sealed and available for same-day global dispatch from PLC Autocontroller.
