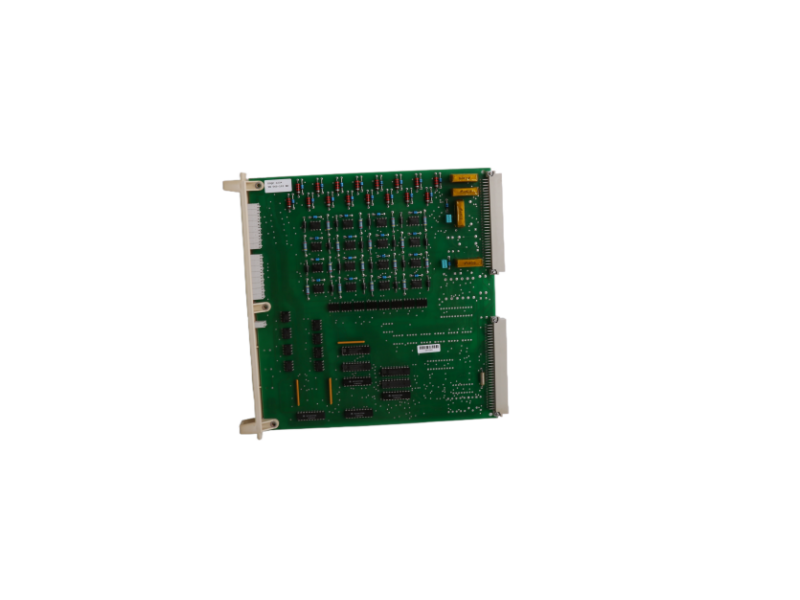

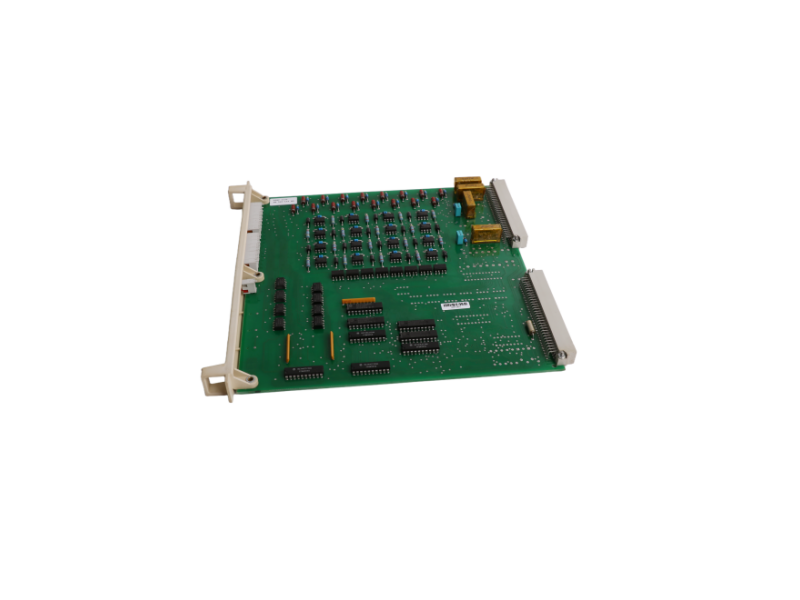

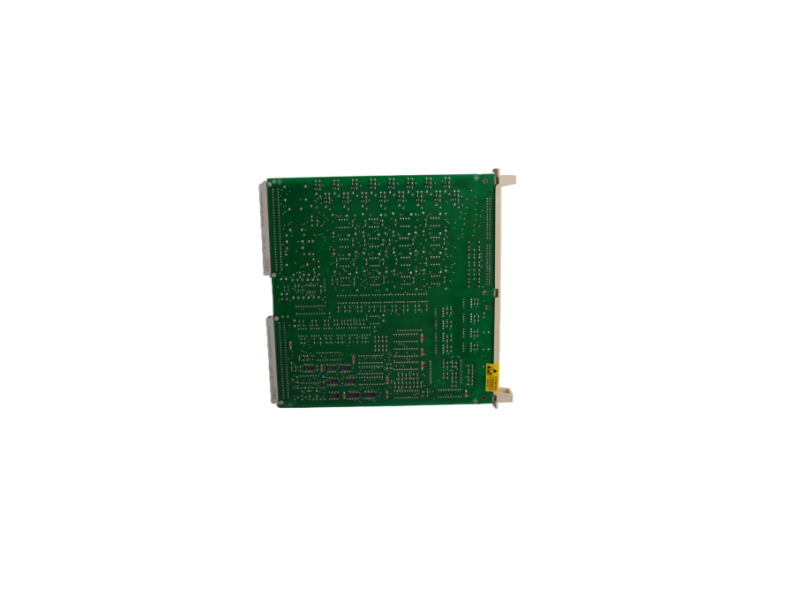

Description:DSQC223 YB560103-BD Digital I/O Board
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | DSQC223 YB560103-BD |
| Country of Origin | Sweden |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Robotics Spares
Data Sheet: ABB DSQC223 YB560103-BD DeviceNet I/O Module
Product Identity
DSQC223 (YB560103-BD) is a 16-channel digital I/O board for ABB IRC5 robot controllers. It plugs into the main computer rack and provides 8 DI + 8 DO via DeviceNet, delivering sub-millisecond response for welding, material handling and packaging lines .
Core Technical Data
|
Parameter |
Specification |
|
Channel Count |
8 DI (24 V DC) + 8 DO (24 V DC, 0.5 A) |
|
Bus Protocol |
DeviceNet, 125 kbps – 1 Mbps auto-baud |
|
Response Time |
≤ 0.5 ms scan cycle |
|
Supply |
24 V DC ±20 %, 150 mA typical |
|
Isolation |
500 V channel-to-bus |
|
Operating Temp |
–20 °C … +70 °C |
|
Dimensions |
140 × 100 × 25 mm, DIN-rail clip |
|
Certifications |
CE, UL, ATEX Zone 2 |
Quick-Install Features
• Spring-cage terminals accept 0.2–2.5 mm² wire – no ferrules required.
• Hot-swap ready – replace online without stopping the robot.
• LED per channel – instant visual confirmation of signal state.
All components factory-sealed and ready for same-day dispatch from PLC Autocontroller.
|
Function |
Part Number |
Note |
|
I/O Module |
DSQC223 YB560103-BD |
This 16-channel unit |
|
Cable |
3HAC022643-001 |
2 m DeviceNet drop cable |
|
Tee |
3HAC022646-001 |
DeviceNet T-connector |
|
Terminator |
3HAC022647-001 |
120 Ω bus terminator |
|
Power Supply |
3HAC029157-002 |
24 Vdc DIN-rail 5 A |
|
I/O Simulator |
3HAC029157-003 |
Hand-held test box for commissioning |
