ABB DO573 relay digital output module front view

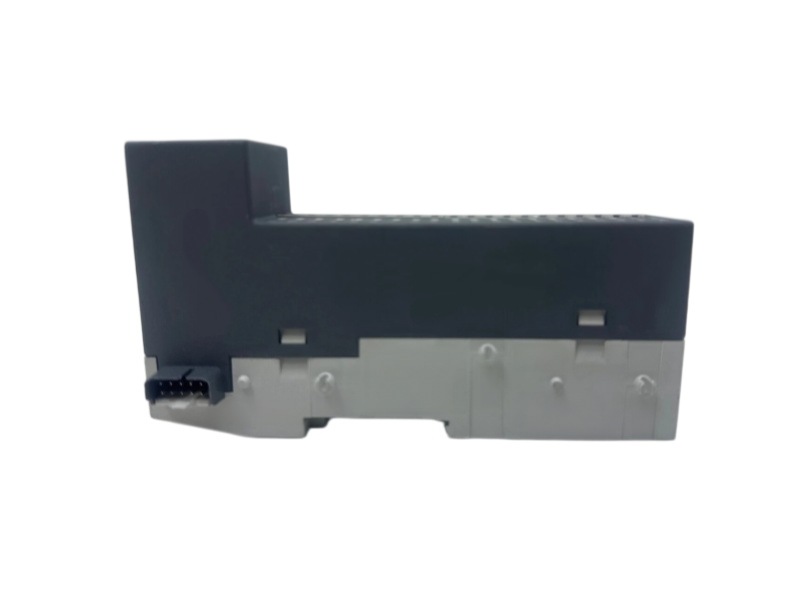

ABB DO573 relay digital output module side view

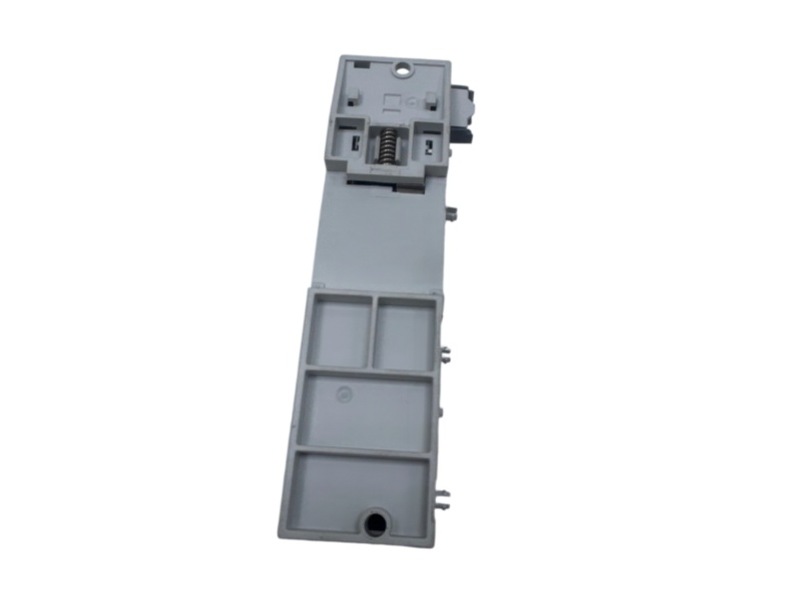

ABB DO573 relay digital output module product view

ABB DO573 S500-eCo 16-Channel Relay Digital Output Module

ABB · S500-eCoACTIVE
DO573
ABB DO573 is an active S500-eCo module with sixteen normally-open relay outputs for 24 V DC, 24 V AC and 100–240 V AC loads.
RELAY OUTPUTS
16
CONTACT RATING
2 A/channel
OUTPUT FORM
Normally open
Confirm load type, group current, terminal blocks and external protection before replacement.
20 A max.MODULE TOTAL
24 V DCSUPPLY
16RELAY OUTPUTS
INQUIRE NOW
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number DO573
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
RELAY OUTPUT CAPACITY
Sixteen isolated relay contacts arranged in two output groups.
Per-channel and group limits must be checked together with the electrical behavior of the connected load.
PRIMARY
Relay outputs
16
Contact form
Normally open
Rated current
2 A/channel
Groups
2 groups of 8
SYSTEM
Group current
10 A maximum
Module current
20 A maximum
DC/low-AC class
24 V DC / 24 V AC
Mains class
100–240 V AC
INSTALLATION
Resistive frequency
1 Hz maximum
Lamp load at 230 V AC
200 W
Lamp load at 24 V DC
30 W
Mechanical life
100,000 operations
Relay outputs
16
Terminal blocks
TA563 / TA564 / TA565
Catalog weight
0.190 kg
Country of origin
Germany
Lifecycle
Active
02
LOAD SWITCHING
Grouped relay contacts for mixed industrial loads.
Reliable use depends on load qualification, external protection and suppression chosen for the field circuit.
01
SYSTEM FUNCTION
Load matching
Confirm resistive, lamp and inductive characteristics against the ABB relay ratings before connection.
02
SYSTEM FUNCTION
Group planning
Eight outputs share each group, so the sum of channel currents must remain within the 10 A group limit.
03
SYSTEM FUNCTION
External protection
The relay contacts have no short-circuit or overload protection and require suitable external protection.
CONFIGURATION SUMMARY
Channel current2 A
Group total10 A
Module total20 A
INSTALLATION REVIEW
Approve every relay load group.
Calculate current and protection
LOAD CLASS
R / lamp / coil
CHECK
GROUP LIMIT
10 A max.
CHECK
MODULE LIMIT
20 A max.
CHECK
CONTACT FUSE
External
CHECK
COIL SUPPRESS
External
CHECK
Size fusing and suppression for the actual load before connecting either eight-channel relay group.
03
SELECTION & SUPPORT FAQ
Clear answers for confident DO573 selection.
Use the complete model and installed-system details to confirm a reliable match before purchase.
Prepare a precise match.
01 · NAMEPLATE
Full model and hardware index
02 · INSTALLED SYSTEM
Base, wiring and connected modules
03 · PROJECT
Software, settings and required condition
Q1
Which voltages can ABB DO573 relay outputs switch?
ABB specifies 24 V DC, 24 V AC and 100–240 V AC applications within the documented load limits. Verify the exact load category before wiring.
Q2
How are the outputs grouped on ABB DO573?
The sixteen normally-open relay outputs are arranged in two groups of eight. Each group is limited to 10 A, with 20 A maximum for the module.
Q3
Does ABB DO573 provide short-circuit protection?
No. ABB states that the relay outputs are not short-circuit or overload protected. Provide suitable external fusing or circuit protection.
Q4
Which terminal blocks are used with ABB DO573?
ABB lists 9-pin and 11-pin TA563, TA564 and TA565 terminal-block options. Select the screw or spring wiring style needed by the installation.
Q5
Can ABB DO573 be replaced by an eight-output relay module?
Not without redesign. Channel count, group current, terminal blocks and field assignments differ, so the electrical and project configuration must be reviewed.
Q6
What should be sent when requesting ABB DO573 documentation and pricing?
Provide the full model, supply and load voltages, load types, terminal-block references, quantity, destination and delivery date for a correct quotation review.
EXACT CONFIGURATION: DO573
