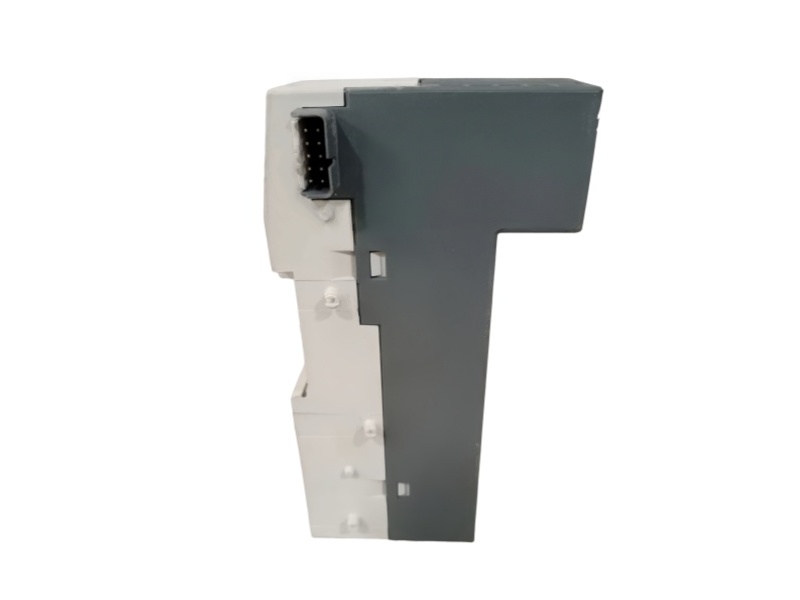

ABB DI561 product image 1

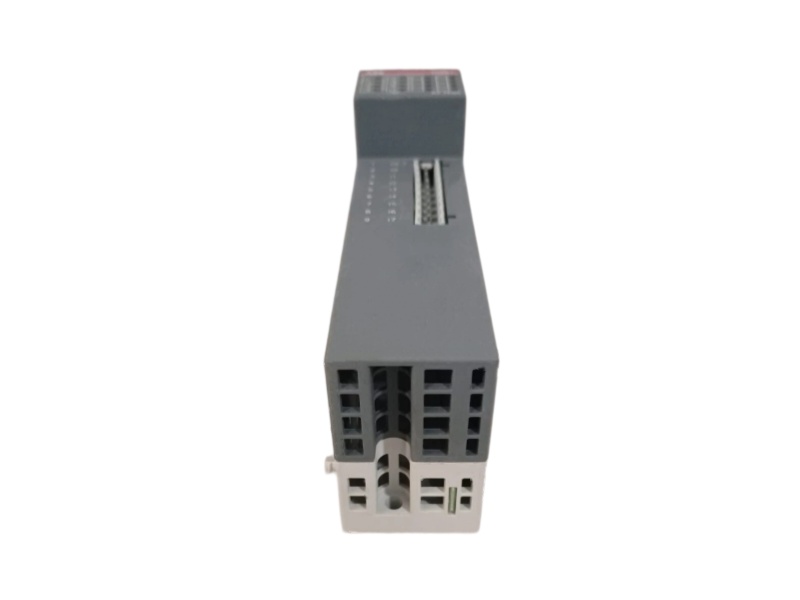

ABB DI561 product image 2
ABB DI561 product image 3

ABB DI561 S500-eCo Digital Input Module

INQUIRE NOW · ABB CONFIGURATION REVIEW

ABB DI561 S500-eCo Digital Input Module

ABB DI561 is a compact digital input expansion module for collecting field-state signals in decentralized S500-eCo stations. Its focused channel count suits smaller machines and remote panels.

ORDER CODE 1TNE968902R2101
MODULE WEIGHT 0.12 kg
CONFIGURATION REVIEW Required
Order check: Confirm the intended project scope before finalizing commercial terms.
◆ Top Quality
✓ One Year Warranty
⚡ Fast Delivery
Request an ABB DI561 Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number DI561
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

DI561 Field-Signal Profile

Input count, electrical behavior and isolation are grouped as a concise commissioning reference.

Electrical Inputs

GROUP 1
Signal typeSink/source
Rated field level24 V DC
Low-state range-3…+5 V DC
High-state range15…30 V DC
Fast-counter modeNot available
INPUT REVIEW DI SENSE · FILTER · REPORT

Confirm every source or sink field device before assigning the cabinet terminals.

Station Behavior

GROUP 2
Logic supplyInternal I/O bus
Module isolationProvided
Channel isolationCommon group
Shielded cableMaximum 500 m
Unshielded cableMaximum 300 m
MODULE ROLE

The module converts discrete field states into process data and transfers them through the S500-eCo I/O bus.

8Input channels
4…8 msTypical delay
5 mATypical channel current
02

Match DI561 to the Correct Remote I/O Station

Connector selection, station compatibility and service handling are kept as separate checks.

INTEGRATION & PROTECTION
01Interface families

ABB documents compatibility with selected PROFINET, EtherCAT, PROFIBUS, CANopen, CS31 and Modbus TCP couplers.

02Cable routing

Keep field inputs separated from high-disturbance conductors.

03Reference potential

Confirm the common reference path before landing input conductors.

04Status review

Use the front indicators to compare physical signal state with controller data.

05Project mapping

Record the slot and channel assignment in the maintenance drawing.

06Arrival inspection

Check housing, connector area and nameplate before installation.

IDENTIFYRecord the coupler and module position.
WIREVerify the common reference and input polarity.
TESTProve each point against the controller channel map.
03

ABB DI561 Buyer FAQ & Ordering Guide

Concise answers for small digital-input stations and maintenance purchasing.

Q01

Which input requirement is ABB DI561 designed to satisfy?

ABB DI561 is intended for a small group of standard discrete field contacts rather than analog measurement or switched outputs.

Q02

How can a buyer confirm ABB DI561 coupler compatibility?

Identify the installed communication interface and compare its approved S500-eCo expansion list, project device index and station layout.

Q03

What are suitable applications for ABB DI561?

ABB DI561 suits compact remote panels that monitor sensors, switches, permissives and equipment status signals.

Q04

What is the correct way to check current ABB DI561 availability?

Reference the complete order code in the inquiry and request confirmation of quantity, condition and dispatch timing.

Q05

Is ABB DI561 interchangeable with a higher-density input module?

Not automatically. Terminal count, project channel map, isolation grouping and cabinet wiring must be compared before substitution.

Q06

Which records should accompany an ABB DI561 manual and quotation request?

Send a clear nameplate image, coupler identity, installed slot, terminal details, required quantity and destination.
