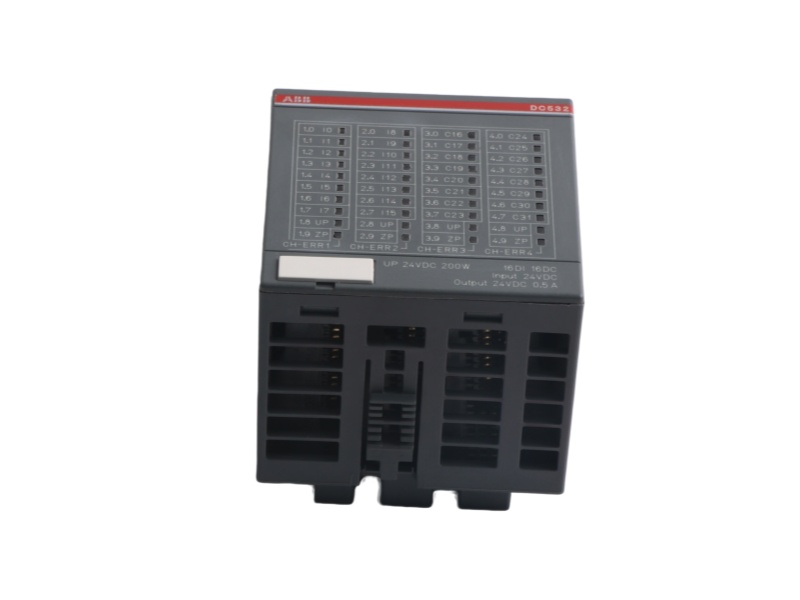

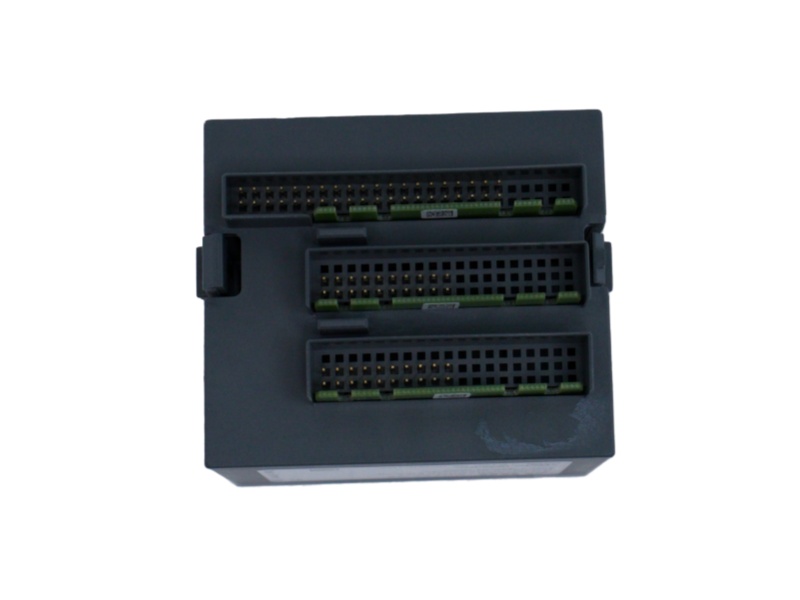

ABB DC532 S500 16 DI / 16 Configurable DI/DO Module
ABB DC532 S500 16 DI / 16 Configurable DI/DO Module
ABB DC532 S500 16 DI / 16 Configurable DI/DO Module

ABB DC532 S500 16 DI / 16 Configurable DI/DO Module

INQUIRE NOW · ABB S500

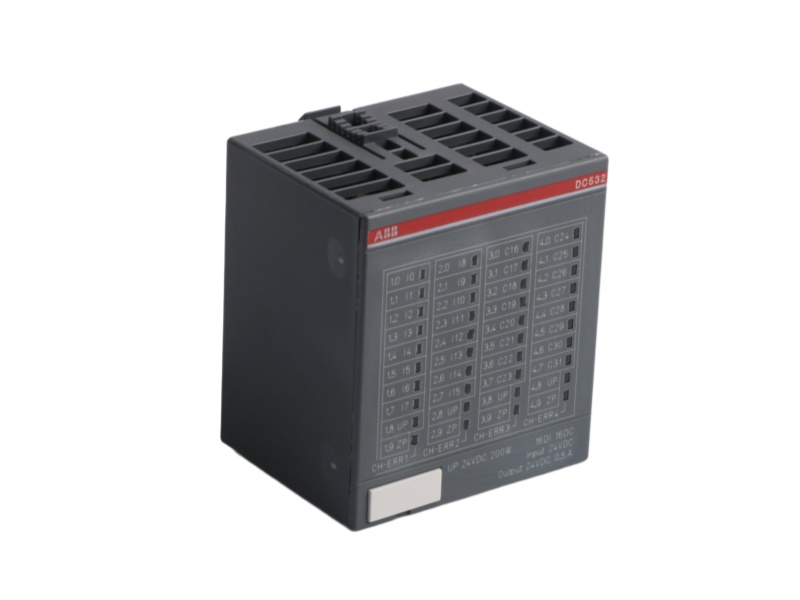

ABB DC532 32-Channel Digital I/O Module

ABB DC532 combines sixteen fixed 24 V DC inputs with sixteen 24 V DC channels configurable as inputs or 0.5 A transistor outputs for AC500 S500 I/O systems.

Order code 1SAP240100R0001
Fixed inputs 16 DI
Configurable I/O 16 DC
Output rating 24 V DC / 0.5 A
Terminal unit TU515 / TU516
Lifecycle Active
Order check: Confirm order code 1SAP240100R0001, standard or XC construction, TU515/TU516 terminal unit, channel direction, counter allocation and 24 V DC load current.
★ Brand New Original
✓ One Year Warranty
✈ Worldwide Shipping
Request a DC532 Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number DC532
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Fixed Inputs & Configurable Channel Architecture

Sixteen dedicated inputs, sixteen bidirectional DC channels and two fast-counter assignments.

ABB separates the channel map into sixteen dedicated Type 1 digital inputs and sixteen DC channels whose input or transistor-output direction is assigned during configuration.

Identity, Inputs & Channel Map 8 verified fields
Manufacturer ABB
Order code 1SAP240100R0001
Product family AC500 / S500
Module type Digital input/output
Dedicated inputs 16
Configurable DC channels 16 DI/DO
Input signal 24 V DC
Input characteristic EN 61131-2 Type 1
Outputs, Protection & Construction 8 verified fields
Output technology Transistor
Output rating 24 V DC, 0.5 A/channel
Maximum output total 8 A
Fast counters Maximum 2 channels
Input delay 0.1–32 ms configurable
Terminal units TU515 screw / TU516 spring
Net weight 0.114 kg
Lifecycle status Active
01
Two channel classesThe first sixteen points are fixed digital inputs; the remaining sixteen DC points can be configured individually as inputs or outputs.
02
Counter resource useA configured fast counter occupies one configurable DO/DC channel, with a maximum of two counter channels per module.
03
Protected transistor outputsABB specifies short-circuit and overload protection, automatic reclosure and overload indication after approximately 100 ms above 0.7 A.
04
Pluggable electronic moduleDC532 requires a compatible S500 terminal unit. TU515 provides screw connections and TU516 provides spring connections.
02

Terminal Unit, Counter & Field Wiring Selection

Correct ordering depends on the terminal-unit connection method, the planned direction of all configurable points and the total current and load type assigned to the output channels.

Application checkpoints
01
TU515 screw wiringSelect TU515 when the installation requires the compatible S500 screw-terminal unit.
02
TU516 spring wiringSelect TU516 for the corresponding spring-terminal connection method; the terminal unit is a separate system component.
03
Mixed input/output stationsUse the fixed inputs for field status and assign the sixteen configurable channels as input or output points to match the machine I/O schedule.
Conversion checkpoints
01
Fast counter functionsUp to two configurable channels can be assigned as fast counters; reserve those points before finalizing the remaining I/O map.
02
Long signal runsABB specifies maximum connected process-signal cable lengths of 1000 m shielded or 600 m unshielded under the stated system conditions.
03
Extreme-condition optionDC532-XC order code 1SAP440100R0001 is the separately ordered extreme-condition version and is not interchangeable by software selection alone.
Related ABB S500 digital modules for channel-count and environment comparison
DC532-XC 16 DI + 16 configurable DI/DO · XC version
DC523 24 configurable 24 V DC channels
DC522 16 configurable 24 V DC channels
DI524 32 fixed 24 V DC inputs
03

Buyer Questions for ABB DC532

Channel mapping, terminal units, counter use, field wiring, XC selection and quotation checks.

01 Which channels on ABB DC532 are fixed inputs and which can be configured as outputs?
ABB DC532 has sixteen dedicated 24 V DC digital inputs plus sixteen DC channels configurable individually as digital inputs or 24 V DC, 0.5 A transistor outputs.
02 How does fast-counter configuration change the usable I/O count on ABB DC532?
ABB permits a maximum of two fast-counter channels. Each assigned counter occupies one configurable DC channel, so reserve counter points before allocating the remaining inputs and outputs.
03 Which terminal unit is required to install ABB DC532?
ABB lists TU515 for screw terminals and TU516 for spring terminals. Match the terminal unit to the required connection method and verify that it is included in the assembled station.
04 Can ABB DC532 be used in centralized and remote AC500 S500 I/O stations?
Yes. ABB lists S500 I/O for central AC500 expansion and for decentralized stations with supported CS31, PROFINET IO, EtherCAT, Modbus TCP, PROFIBUS DP or CANopen interface modules.
05 Is ABB DC532-XC a direct substitute for standard ABB DC532?
DC532-XC has the same 16 DI plus 16 configurable DC channel concept but is a separately ordered extreme-condition version. Confirm environmental approvals, terminal unit, order code and installed system requirements before substitution.
06 What DC532-specific details should be sent for an ABB DC532 quotation?
Provide order code 1SAP240100R0001, nameplate photos, standard or XC requirement, TU515/TU516 choice, input/output and counter allocation, load currents, quantity, destination and delivery date.
04

About Company

Global sourcing experience, professional support and long-term automation partnerships.

People · Process · Partnership
Automation support team reviewing an industrial control module
01
Years of Global Experience20+ years of experience supporting automation customers across major international markets.
02
Professional Support TeamExperienced specialists help confirm models, select suitable products and resolve purchasing concerns.
03
Wide Range of BrandsWe supply PLCs, DCS parts, I/O modules, drives, motors, power supplies and communication modules.
04
Large In-Stock InventoryStock includes current, discontinued, obsolete and hard-to-find automation components.
05
Honesty & TrustWe build long-term cooperation through honest communication, responsibility and careful service.
06
Your Trusted Automation PartnerWe support single spare-part requests and complete automation projects worldwide.
05

Transaction Cases

Sincere Cooperation, Long-Term Trust

Three customer journeys showing careful verification, clear communication and repeat cooperation.

Russia 01
A Russian customer urgently needed a replacement for a discontinued automation component. After reviewing the product label, technical parameters, and application details, our engineers recommended a compatible alternative and provided photos and test videos before shipment. The alternative performed well, enhancing the customer's confidence in our technical capabilities and leading to multiple repeat orders.
India 02
An Indian customer still had doubts after initial online communication with us, so they visited our company in person for a face-to-face meeting and product inspection. This visit increased the customer's trust and led to the successful placement of their first order. Over the next few years, we completed multiple orders and established a stable, long-term partnership.
Venezuela 03
A Venezuelan customer needed a specific automation component and compared products and services from several suppliers online. After nearly three weeks of careful consideration, our sincere communication, professional service, and reliable product quality won the customer's trust. After receiving the product and using it for several weeks without any problems, the customer gave us positive feedback and subsequently placed multiple orders.
06

Mixed Automation Model References

Thirty-nine mixed model references selected from the supplied list. Send a full label photo to confirm the manufacturer, revision and configuration before quotation.

Reference set 1 01–13
01
DDBC320-DALIPhilips Dynalite
02
DM4T KNX 4940275Schneider Electric Building
03
EVD0000E51CAREL
04
LS3408-ER20155RZebra Technologies
05
PXC22.DSiemens Building
06
NBB20-L2-A2-V1Pepperl+Fuchs
07
ADAM-5000/TCPAdvantech
08
BC9000Beckhoff
09
IR425-D4-2Bender
10
MCR-S-MUX-TBPhoenix Contact
11
NZMN1-A100Eaton Moeller
12
IZM-KLP-SO-RONISEaton Moeller
13
DKG-307DATAKOM
Reference set 2 14–26
14
MTL5546YEaton MTL
15
QBM81-5Siemens Building
16
KFD2-STC4-EX1Pepperl+Fuchs
17
CPO-RL4LOYTEC
18
2003BS&B Safety Systems
19
PXC22-EDSiemens Building
20
MTL4599NEaton MTL
21
TC910R1009Honeywell Building
22
2001810000Weidmuller
23
HWS600-24TDK-Lambda
24
BC9100Beckhoff
25
BZME1-A25-BTEaton Moeller
26
D5014SG.M. International
Reference set 3 27–39
27
POL945.00Siemens Building
28
FX-PCG2621-0Johnson Controls
29
9192/32-10-10R. STAHL
30
MTN648493Schneider Electric Building
31
XFL522Honeywell Building
32
PCO3010AL0CAREL
33
PCD7.D230Saia Burgess Controls
34
330101-00-16-10-02-05Bently Nevada
35
KHA6-SR2-EX2.WPepperl+Fuchs
36
M1P 773100Pilz
37
DDLEDC605GLPhilips Dynalite
38
750-341WAGO
39
HS2016DSC
