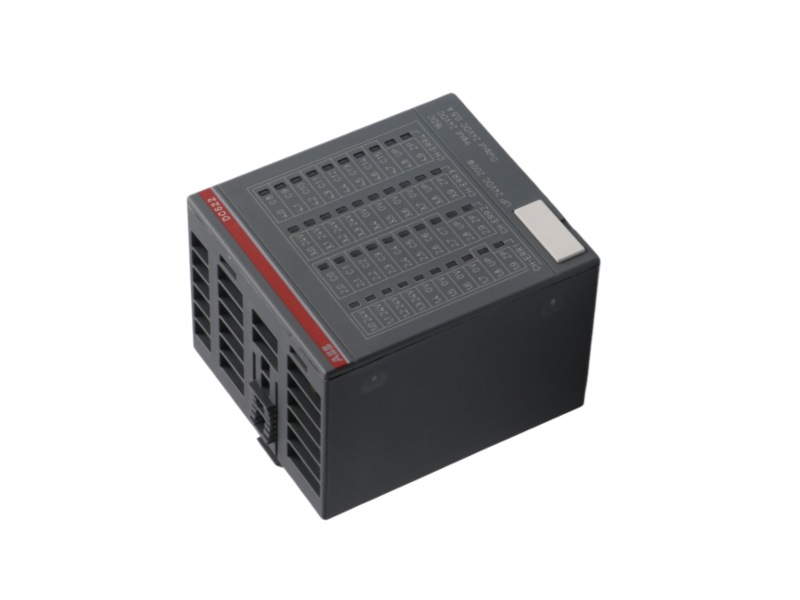

ABB DC522 Configurable Digital Input/Output Module front view
ABB DC522 Configurable Digital Input/Output Module side view

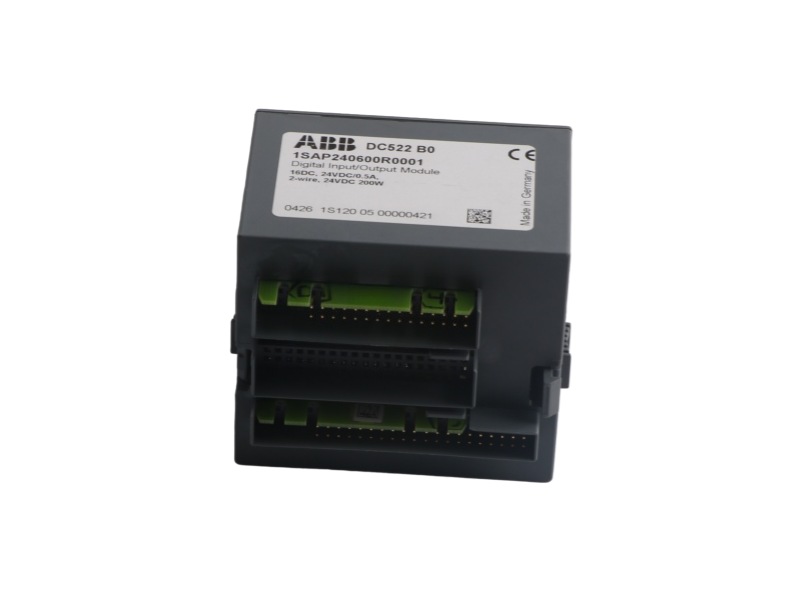

ABB DC522 Configurable Digital Input/Output Module terminal view

ABB DC522 S500 16-Channel Configurable Digital I/O Module

ABB · S500ACTIVE
DC522
ABB DC522 is an active S500 module with sixteen configurable 24 V DC channels, protected 0.5 A transistor outputs and two fast-counter resources.
CONFIGURABLE CHANNELS
16
OUTPUT RATING
24 V DC / 0.5 A
FAST COUNTERS
Up to 2
Confirm every channel direction, counter assignment and TU515 or TU516 wiring before replacement.
8 ATOTAL OUTPUT
0.1–32 msINPUT DELAY
16CONFIGURABLE CHANNELS
INQUIRE NOW
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number DC522
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
CONFIGURABLE DIGITAL I/O
Sixteen channels assigned as inputs or protected outputs.
Channel direction, timing and counter use are defined by the engineering configuration rather than a fixed I/O split.
PRIMARY
Configurable channels
16
Input voltage
24 V DC
Input characteristic
EN 61131-2 Type 1
Input delay
0.1–32 ms
SYSTEM
Typical input current
5 mA at 24 V
Output type
Transistor
Output current
0.5 A/channel
Maximum output total
8 A
INSTALLATION
Fast counters
2 maximum
Residual output current
Below 0.5 mA
Cable shielded
Up to 1000 m
Cable unshielded
Up to 600 m
Configurable channels
16
Terminal units
TU515 / TU516
Catalog weight
0.102 kg
Country of origin
Germany
Lifecycle
Active
02
CHANNEL BEHAVIOR
From input threshold to protected transistor switching.
The module combines configurable direction with diagnostics and protection suited to mixed digital field signals.
01
SYSTEM FUNCTION
Input interpretation
Each configured input follows the defined 24 V DC threshold and adjustable delay.
02
SYSTEM FUNCTION
Output switching
Configured outputs deliver 24 V DC transistor signals with 0.5 A channel capacity.
03
SYSTEM FUNCTION
Counter allocation
Up to two channels can provide fast-counter functions, each consuming the assigned digital resources.
CONFIGURATION SUMMARY
Signal 0−3 to +5 V DC
Signal 115–30 V DC
Reverse feedProtected
INSTALLATION REVIEW
Map the configurable digital channels.
Resolve direction, timing and protection
CHANNEL MODE
DI or DO
CHECK
INPUT DELAY
0.1–32 ms
CHECK
FAST COUNT
2 maximum
CHECK
OUTPUT LOAD
0.5 A each
CHECK
WIRING BASE
TU515 or 516
CHECK
Record each channel direction, counter allocation and field load before transferring the wiring.
03
SELECTION & SUPPORT FAQ
Clear answers for confident DC522 selection.
Use the complete model and installed-system details to confirm a reliable match before purchase.
Prepare a precise match.
01 · NAMEPLATE
Full model and hardware index
02 · INSTALLED SYSTEM
Base, wiring and connected modules
03 · PROJECT
Software, settings and required condition
Q1
Can every channel on ABB DC522 be configured as either an input or an output?
Yes. DC522 provides sixteen configurable 24 V DC channels. The engineering project must preserve the direction and function assigned to each channel.
Q2
Which terminal unit does ABB DC522 require?
ABB specifies TU515 or TU516. Choose the screw- or spring-terminal version that matches the installed panel and record the wiring before replacement.
Q3
How are fast counters allocated on ABB DC522?
The module supports up to two fast-counter channels. Each counter uses the assigned configurable channel resources, so the project mapping must be checked before exchange.
Q4
How does ABB DC522 react to an output overload?
ABB documents short-circuit and overload protection with fault indication after the overload delay and automatic reclosure attempts. Remove the fault before returning the channel to service.
Q5
Is ABB DC522-XC the same as the standard DC522?
No. DC522-XC is a separate active extended-condition version. Electrical compatibility and the environmental requirement must be confirmed before substitution.
Q6
What should a buyer provide for an ABB DC522 quotation?
Include the exact model, terminal unit, channel map, counter usage, output loads, quantity, destination and required delivery date so documentation and supply are matched correctly.
EXACT CONFIGURATION: DC522
