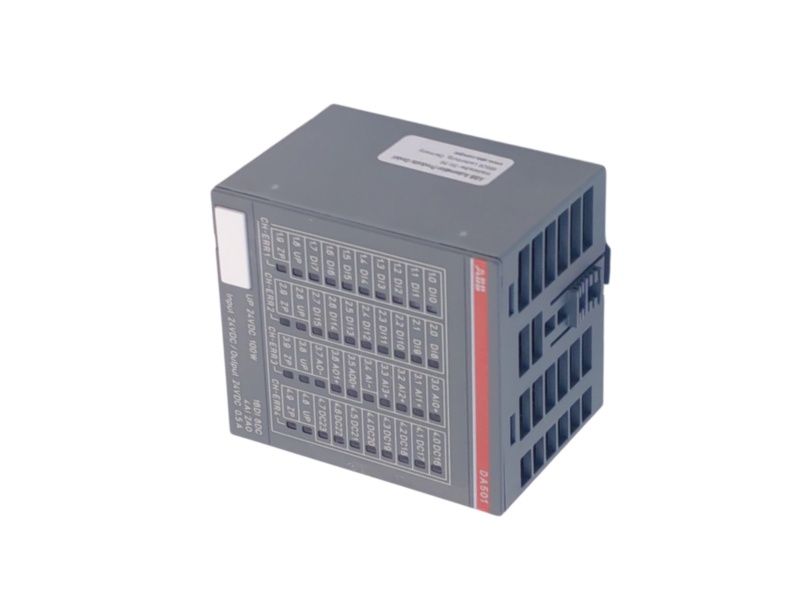

ABB DA501 product image 1

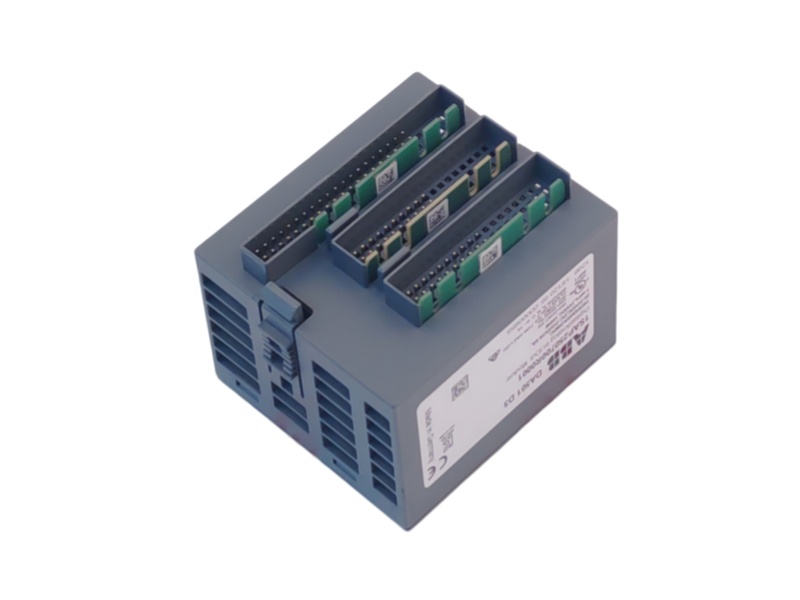

ABB DA501 product image 2
ABB DA501 product image 3

ABB DA501 S500 Digital/Analog Mixed I/O Module

INQUIRE NOW · ABB CONFIGURATION REVIEW

ABB DA501 S500 Digital/Analog Mixed I/O Module

ABB DA501 combines discrete monitoring, configurable field channels and analog process handling in one S500 expansion position. It is suited to compact machines and process skids with mixed signal requirements.

ORDER CODE 1SAP250700R0001
MODULE WEIGHT 0.200 kg
TERMINAL UNITS TU515 / TU516
Order check: Confirm the intended project scope before finalizing commercial terms.
★ Brand New Original
✓ Best Price Review
✈ Worldwide Shipping
Request an ABB DA501 Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number DA501
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

DA501 Mixed-Signal Channel Map

Discrete and analog resources are separated so the final I/O assignment can be reviewed without overlap.

Input Resources

GROUP 1
Analog inputs4
Digital level24 V DC
Voltage measurement0…10 V / ±10 V
Current measurement0/4…20 mA
Temperature sensorsRTD support
CHANNEL REVIEW D+A MONITOR · SWITCH · MEASURE

Lock the digital and analog channel plan before cabinet wiring begins.

Output Resources

GROUP 2
Digital technologyTransistor
Channel rating0.5 A
Combined output limit4 A
Analog voltage-10…+10 V
Analog current0/4…20 mA
MODULE ROLE

The module combines fixed digital monitoring, configurable DC points and process-value conversion within one S500 expansion module.

16Fixed digital inputs
8Configurable DI/DO
2Analog outputs
02

Configure DA501 Counters, Sensors and Protection

Counter allocation, sensor wiring and field-power safeguards are planned independently.

INTEGRATION & PROTECTION
01Counter allocation

A configured counter occupies one digital output or configurable DC point.

02Output readback

The controller can read back the switching state of the digital outputs.

03Inductive loads

Internal varistors provide demagnetization when transistor loads are switched off.

04Field fuse

ABB specifies a 10 A fast fuse for the process-voltage feed.

05Potential separation

Isolation is provided at module level for the mixed I/O electronics.

06Signal cabling

Official limits distinguish shielded and unshielded process-signal cable runs.

ALLOCATEReserve counter resources before assigning normal I/O.
SCALEEnter each analog range and sensor method in the project.
PROTECTVerify fuse and load behavior before commissioning.
03

ABB DA501 Buyer FAQ & Ordering Guide

Buyer-focused guidance for mixed-I/O projects, documentation and supply review.

Q01

Which design question should be answered before selecting ABB DA501?

Determine whether one station position must serve both discrete equipment and analog instruments; then create a complete channel-allocation sheet.

Q02

What must be compared when replacing an installed module with ABB DA501?

Compare the S500 station, terminal base, device index, software hardware tree, field wiring and configured counter usage.

Q03

Which machine applications benefit most from ABB DA501?

ABB DA501 fits compact equipment that combines limit switches, solenoids, process transmitters and modulating actuators.

Q04

How should current ABB DA501 availability be established?

Confirm the order code on ABB's product entry, then obtain a dated quotation for actual quantity, condition and delivery.

Q05

Is ABB DA501 a guaranteed plug-compatible successor for another mixed I/O module?

No such guarantee appears in the reviewed ABB material. The channel map, electrical ranges, base and controller project require engineering approval.

Q06

What information helps obtain the correct ABB DA501 manual and quote?

Provide the existing nameplate, channel schedule, field-device list, base style, project version, quantity and destination.
