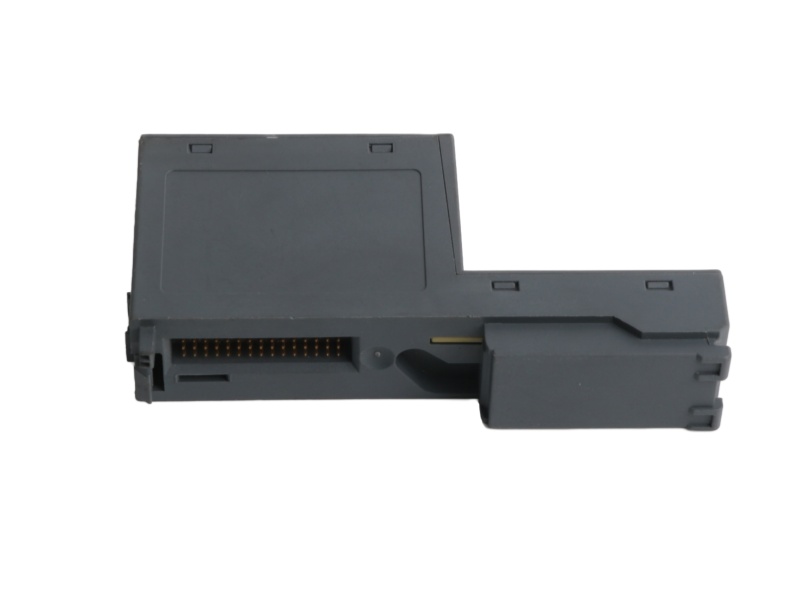

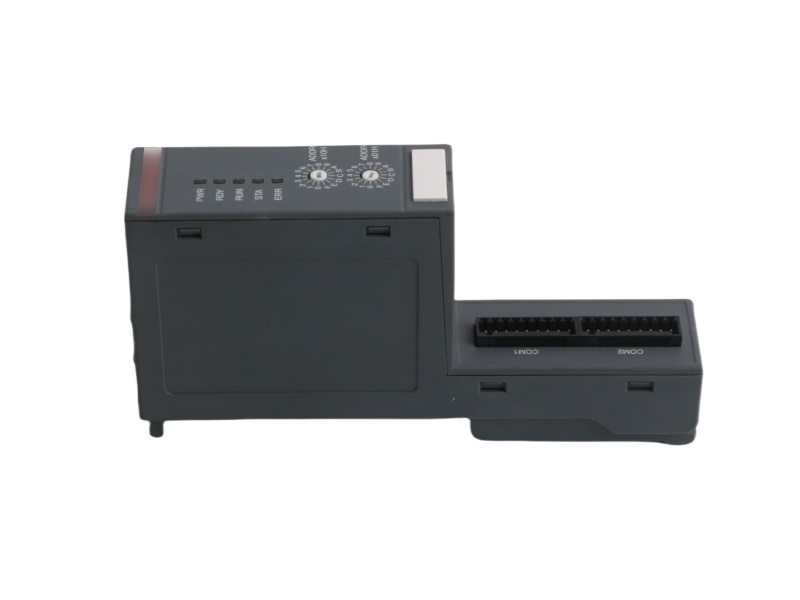

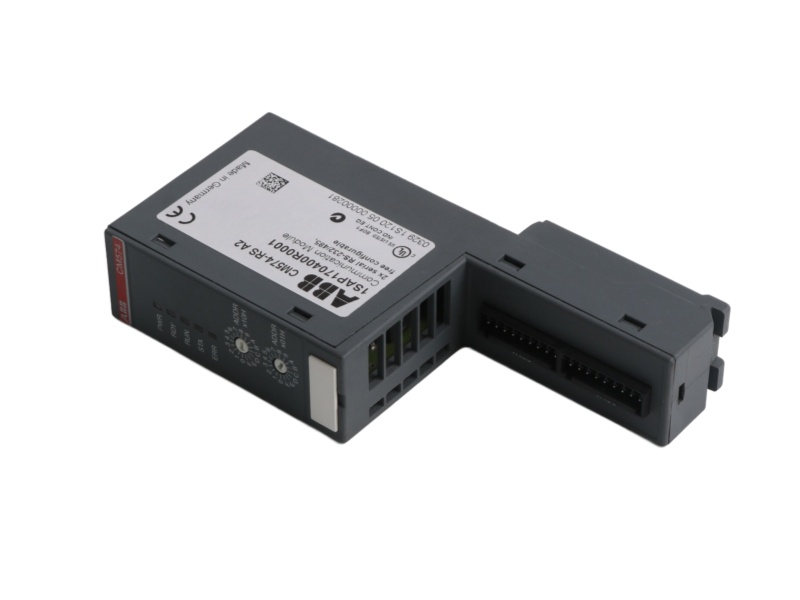

ABB CM574-RS AC500 Dual Serial Communication Module
ABB CM574-RS AC500 Dual Serial Communication Module
ABB CM574-RS AC500 Dual Serial Communication Module

ABB CM574-RS AC500 Dual Serial Communication Module

INQUIRE NOW · ABB AC500

ABB CM574-RS Configurable RS232 / RS485 Module

ABB CM574-RS adds two independently configurable EIA RS232 or RS485 serial interfaces to an AC500 CPU for programmable communication such as Modbus or ASCII.

Order code 1SAP170400R0201
Serial ports 2
Standards RS232 / RS485
Protocols Modbus / ASCII
TA532 blocks 2 included
Lifecycle Active
Order check: Confirm CPU and terminal-base compatibility, port-by-port RS232/RS485 mode, protocol program, pinout, baud parameters and installed cable shielding.
★ Brand New Original
✓ One Year Warranty
✈ Worldwide Shipping
Request a CM574-RS Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number CM574-RS
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Dual Serial Interface Configuration

Two configurable serial ports, programmable protocols and included TA532 blocks.

Both communication channels are software configurable, so every port must be defined by electrical standard, protocol, serial parameters and terminal assignment.

Identity, Interfaces & Connection 8 verified fields
Manufacturer ABB
Order code 1SAP170400R0201
Product family AC500
Module type Serial communication
Serial interfaces 2
Electrical standards EIA RS232 or EIA RS485
Connector 9-pin male per interface
Included terminals 2 × TA532
Protocol, Memory & System Integration 8 verified fields
Protocol Programmable
Examples Modbus / ASCII
Parameter setup Configurable in software
Module bus Dual-port memory, 8 kB
Flash memory 512 kB firmware + 2 × 64 kB user data
Terminal bases All TB5xx
Weight Approx. 0.150 kg
Lifecycle status Active
01
Two configurable channelsConfigure each port independently as RS232 or RS485 and document the matching cable, grounding, termination and serial parameters.
02
Programmable application protocolABB lists programmable communication with Modbus and ASCII as examples; the application logic must implement the required frame handling.
03
Included field connectorsTwo 9-pin TA532 spring terminal blocks are delivered with the communication module. The separately listed TA532 pack is a spare-parts package.
04
CPU-side moduleCM574-RS exchanges data with the AC500 CPU through dual-port memory and mounts on a compatible TB5xx terminal base.
02

Protocol Engineering & Serial Wiring Checks

A safe migration or replacement requires the old port settings, cable pinout, protocol timing and PLC application to be captured before hardware is removed.

Application checkpoints
01
RS232 point-to-pointSelect EIA RS232 for the corresponding point-to-point electrical interface and match signal direction, reference and cable length.
02
RS485 multidropSelect EIA RS485 for the specified two-wire serial network and apply the required polarity, termination, biasing and shield practice.
03
Modbus RTU projectsUse the Automation Builder application and serial parameters required by the connected Modbus devices.
Conversion checkpoints
01
ASCII integrationsProgrammable ASCII communication can support proprietary equipment, but the PLC program must define the message framing and data handling.
02
Spare terminal blocksTA532 order code 1SAP182000R0001 is listed as a 10-piece spare set, not as another communication module.
03
XC environmental optionCM574-RS-XC provides the corresponding extreme-condition construction; confirm the full environmental specification rather than substituting by appearance.
Related ABB serial modules and accessories for configuration comparison
CM574-RS-XC Dual serial · extreme-condition version
CM574-RCOM Dual RCOM communication module
CM5610-2RS AC500 V3 dual serial module
TA532 9-pin spring terminal-block spare set
03

Buyer Questions for ABB CM574-RS

Port standards, programmable protocols, terminals, migration and ordering checks.

01 Can each serial port on ABB CM574-RS be configured separately as RS232 or RS485?
Yes. ABB specifies two software-configurable serial interfaces. Record the electrical standard, baud rate, data bits, parity, stop bits and cable pinout for each channel.
02 Which communication protocols can ABB CM574-RS run?
ABB describes the protocol as programmable in Automation Builder and lists Modbus and ASCII as examples. The PLC application must contain the required protocol handling and serial settings.
03 Are the two TA532 terminal blocks included with ABB CM574-RS?
Yes. ABB states that the dual-serial module is delivered with two 9-pin TA532 spring terminal blocks. The separately ordered 1SAP182000R0001 item is a 10-piece spare set.
04 Can ABB CM574-RS replace ABB CM574-RCOM without engineering changes?
No. The products serve different communication functions. Compare protocol, electrical interface, application program, field wiring and connected equipment before selecting any replacement.
05 What must be backed up before changing an installed ABB CM574-RS?
Back up the AC500 project and both port configurations, then record the terminal pinout, cable shields, network termination, device addresses and communication timing.
06 What information is required for an ABB CM574-RS quotation?
Provide order code 1SAP170400R0201, nameplate photos, CPU and terminal base, RS232/RS485 selection for each port, protocol, quantity, destination and delivery date.
