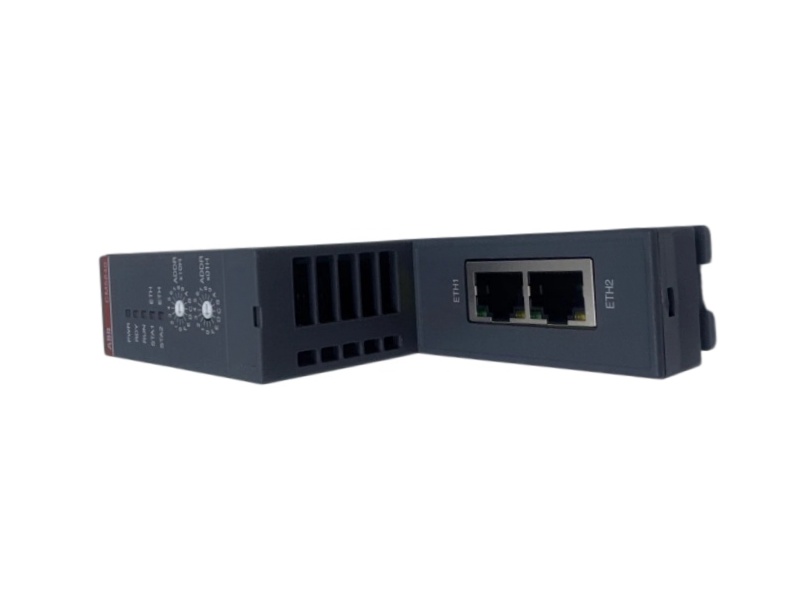

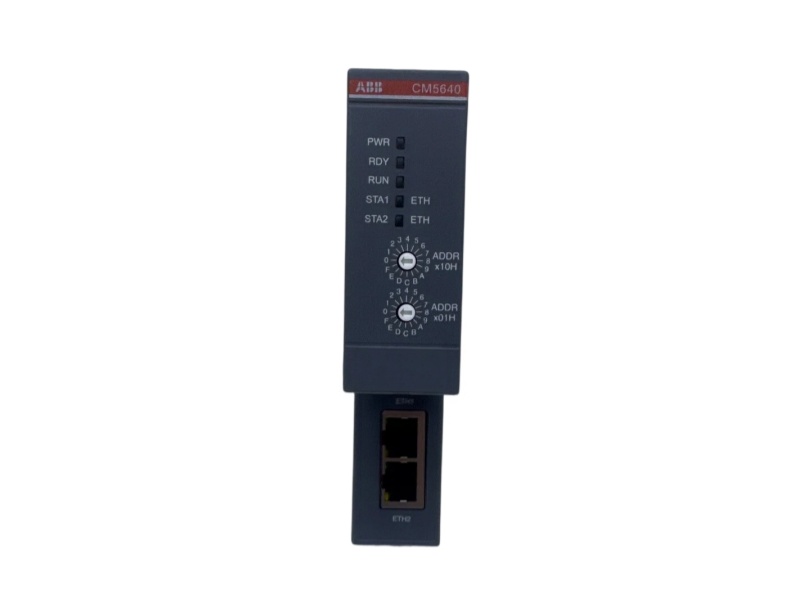

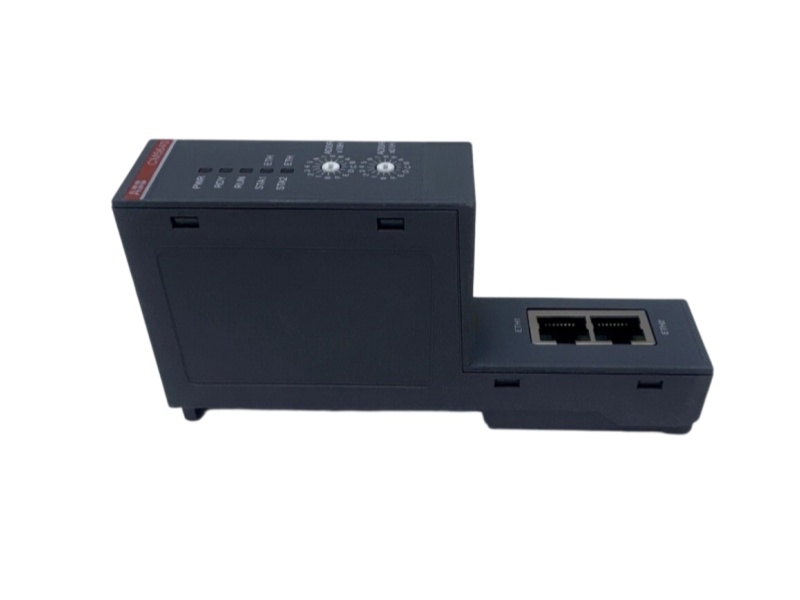

ABB CM5640-2ETH AC500 Dual Ethernet Communication Module
ABB CM5640-2ETH AC500 Dual Ethernet Communication Module
ABB CM5640-2ETH AC500 Dual Ethernet Communication Module

ABB CM5640-2ETH AC500 Dual Ethernet Communication Module

INQUIRE NOW · ABB AC500

ABB CM5640-2ETH Dual Ethernet Port Extender

ABB CM5640-2ETH adds two independent RJ45 Ethernet interfaces to a compatible AC500 V3 CPU for TCP/IP, UDP, Modbus TCP and controller network integration.

Order code 1SAP176000R0080
Ethernet ports 2 × RJ45
Channel design Independent
Modbus TCP Supported
CPU firmware V3.6.0 or later
Lifecycle Active
Order check: Confirm the host AC500 CPU, firmware version, subnet plan, protocol licenses and whether the standard or XC module is required.
★ Brand New Original
✓ One Year Warranty
✈ Worldwide Shipping
Request a CM5640-2ETH Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number CM5640-2ETH
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Dual Ethernet Interface Architecture

Two independent RJ45 channels, protocol support and CPU-wide limits.

ABB defines this AC500 communication module as a CPU port extender with two independent Ethernet channels rather than an unmanaged two-port switch.

Identity, Ports & Supply 8 verified fields
Manufacturer ABB
Order code 1SAP176000R0080
Product family AC500
Module type Ethernet port extender
Ethernet interfaces 2
Connector type RJ45
Independent channels Yes
Usable terminal bases TB56xx
Protocols, Access & System Limits 8 verified fields
TCP/IP Supported
UDP Supported
Modbus TCP Supported
Programming access 3S Online Protocol
Module bus Dual-port RAM
Net weight 0.12 kg
Protection IP20 with terminals fitted
Lifecycle status Active
01
CPU-managed communicationThe connected CPU continues to execute the protocol stacks; the module extends physical Ethernet access but does not become an independent controller.
02
Separate networksETH1 and ETH2 are independent interfaces and must be configured on different IP subnets.
03
Shared communication limitsSocket, tag and protocol limits remain CPU-wide. Adding this module does not multiply the controller's communication resources.
04
Gateway ruleABB permits only one active default gateway across the CPU and communication-module Ethernet interfaces.
02

Network Segmentation & AC500 Integration

A correct installation depends on CPU generation, firmware, independent subnet planning and the exact Ethernet service required by the application.

Application checkpoints
01
Separated machine networksUse the two independent ports to connect the controller to distinct Ethernet segments while keeping their IP subnets different.
02
Modbus TCP communicationThe module supports Modbus TCP through the CPU communication stack for controller, HMI or supervisory data exchange.
03
Engineering accessABB lists 3S Online Protocol for programming and online access through the module.
Conversion checkpoints
01
Firmware baselineThe hardware manual requires compatible AC500 V3 CPU firmware; core CM5640 functions require version 3.6.0 or later.
02
Optional PRP useABB offers a separately licensed PRP function for parallel redundant networks on supported AC500 V3 systems.
03
XC comparisonCM5640-2ETH-XC is the extreme-condition counterpart. Match environmental requirements and the full order code before purchase.
Related ABB Ethernet and communication modules for configuration comparison
CM5640-2ETH-XC Two Ethernet ports · extreme-condition version
CM579-PNIO PROFINET communication module
CM579-ETHCAT EtherCAT communication module
CM5610-2RS Two serial RS232/RS485 interfaces
03

Buyer Questions for ABB CM5640-2ETH

Network architecture, CPU compatibility, protocol limits, lifecycle and quotation checks.

01 Are the two Ethernet ports on ABB CM5640-2ETH a built-in network switch?
No. ABB specifies two independent Ethernet interfaces. Configure ETH1 and ETH2 on different IP subnets instead of treating them as two switched sockets on one network.
02 Which CPU firmware is required before installing ABB CM5640-2ETH?
ABB's hardware manual requires an AC500 V3 CPU with firmware version 3.6.0 or later for the core communication-module functions. Additional protocol features can require newer firmware or licenses.
03 Does ABB CM5640-2ETH increase AC500 socket, tag or protocol connection limits?
No. The CPU still executes the communication stacks, so the controller-wide socket, tag and connection limits remain shared across its onboard Ethernet and both module interfaces.
04 Can ABB CM5640-2ETH use a default gateway on both independent interfaces?
No. ABB permits only one active default gateway across all Ethernet interfaces in the controller configuration. Route and subnet planning must be completed before commissioning.
05 Is ABB CM5640-2ETH still an active product, and is there an extreme-condition version?
ABB lists order code 1SAP176000R0080 as Active. ABB also lists CM5640-2ETH-XC, order code 1SAP376000R0080, for extreme-condition applications; it is not selected by changing only a software setting.
06 What information is needed to quote ABB CM5640-2ETH accurately?
Send the full nameplate, quantity, destination, required delivery date, host CPU model and firmware, required protocols, and confirmation of standard versus XC construction.
