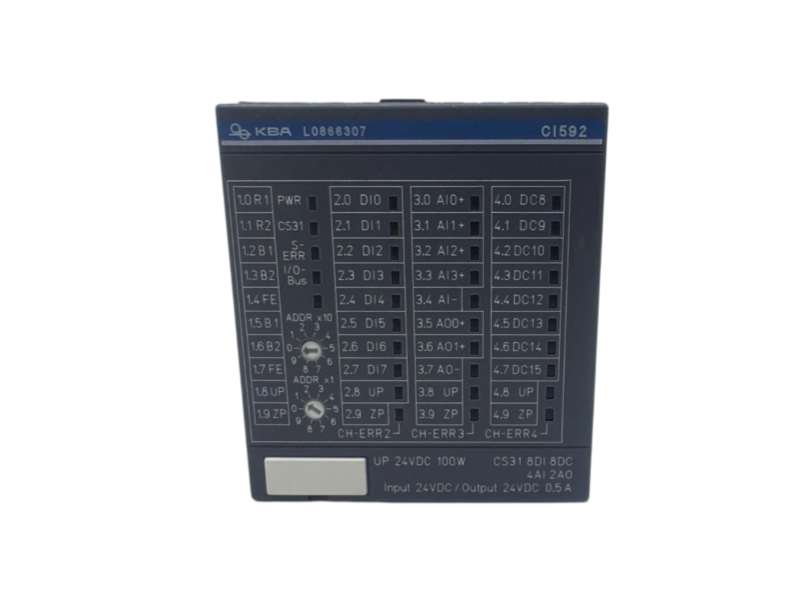

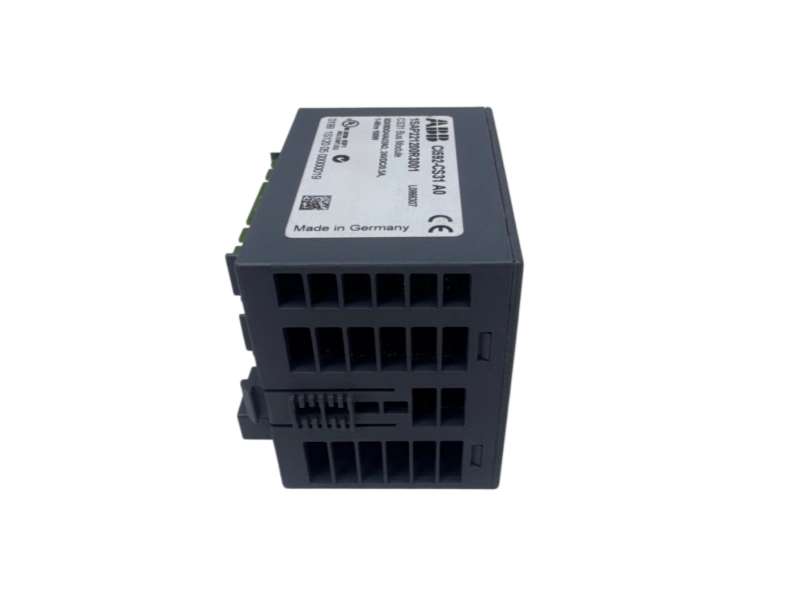

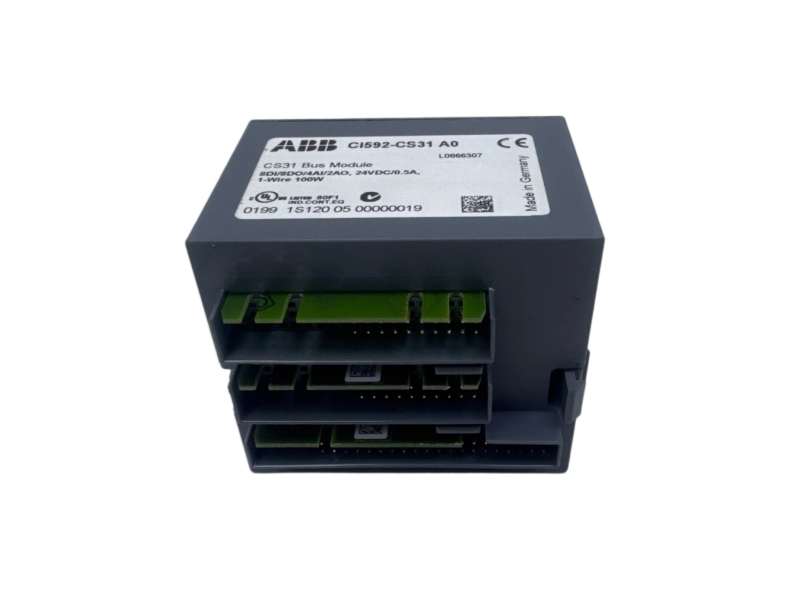

ABB CI592-CS31 is an active RS-485 CS31 slave with eight digital inputs, eight configurable digital I/O, four configurable analog inputs and two analog outputs.
| Manufacturer | ABB |
| Item number | CI592-CS31 |
| Country of Origin | Switzerland |
| Lead Time | 2-3 DAYS |
| After-Sales Support | For after-sales support, please contact May. |
| HS Code / Commodity code | Please confirm the destination before shipping. |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Twenty-two field channels plus configurable analog ranges and a 50 kHz counter.
CI592-CS31 combines decentralized CS31 communication with digital, configurable digital and analog functions in one module for flexible remote stations.
Commissioning depends on exact signal-range selection, CS31 addressing, the chosen terminal unit and avoiding conflicts between configurable I/O and fast-counter channels.
Analog ranges, configurable I/O, counter channels, terminal bases and active variants.
ABB CI592-CS31 accepts 0–10 V, ±10 V, 0–20 mA, 4–20 mA, Pt100, Pt1000 and Ni1000 input ranges. Each analog input is configured individually.
Channels DC8–DC15 can be assigned as 24 V DC transistor outputs rated 0.5 A per channel, with a 4 A combined maximum and documented overload protection.
The 50 kHz fast counter uses DC8 and DC9 as inputs and DC10 as its output. Reserve those points when preparing the module's I/O map.
Yes. ABB specifies TU551-CS31 for screw terminals and TU552-CS31 for spring terminals. The electronics and terminal-unit order codes must be checked separately.
No. Both are active orderable variants. CI592-CS31-XC is the extreme-condition version, not a firmware upgrade or an automatic replacement for the standard module.
Include order code 1SAP221200R0001, terminal unit, CS31 address, digital directions, analog ranges, counter use, attached modules, quantity, destination and delivery date.
