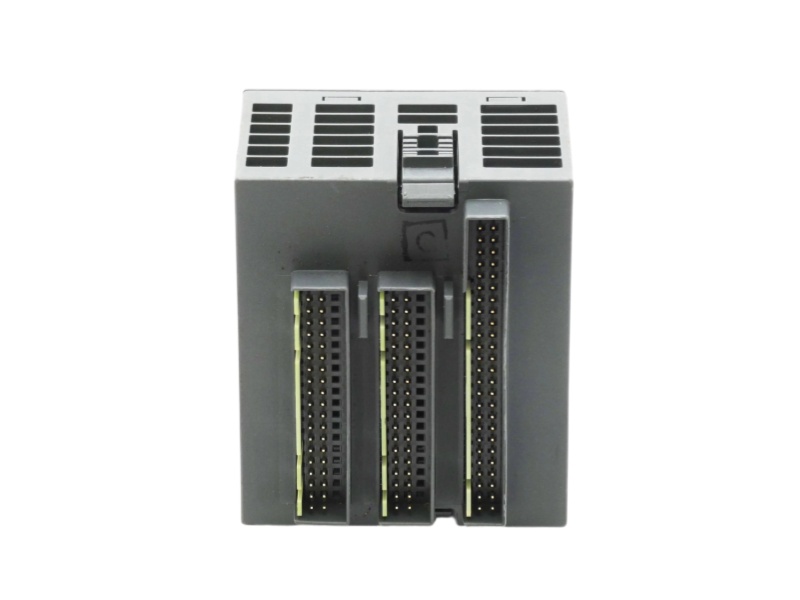

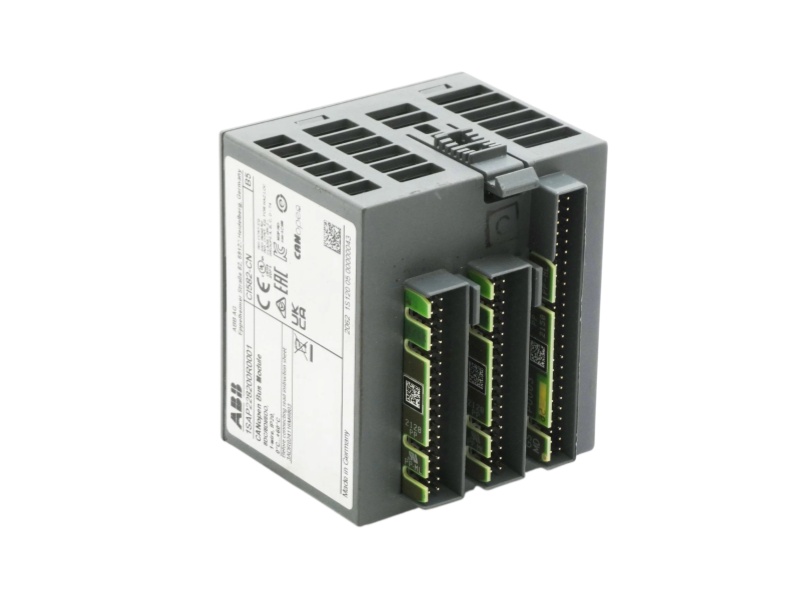

ABB CI582-CN S500 CANopen Slave Interface with Integrated Digital I/O

ABB CI582-CN forms a compact CANopen remote-I/O node with integrated digital inputs, outputs and configurable channels, node addressing switches and onboard diagnostics.

ORDER CODE1SAP228200R0001
FIELDBUS ROLECANopen slave
CHANNEL SET24 integrated I/O
Configuration check: Confirm the CANopen master, node ID, terminal unit and bus termination plan before ordering.
★ Brand New Original
✓ One Year Warranty
✦ Integrity Supply
Request an ABB CI582-CN Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number CI582-CN
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

CI582-CN Integrated I/O & Diagnostics

Onboard channel roles separated from CANopen network engineering.

01DIGITAL INPUTS8 × 24 V DC
02DIGITAL OUTPUTS8 × 24 V DC / 0.5 A
03CONFIGURABLE CHANNELS8 DI/DO × 24 V DC / 0.5 A
04CHANNEL ISOLATIONModule-wise galvanic
05CONFIGURABLE I/O LEDS8 yellow
06INPUT LEDS8 yellow
07OUTPUT LEDS8 yellow
08ERROR LEDS3 red
09SYSTEM LEDS5
COUNTER RESOURCEThe integrated fast counter reserves DI8 and DI9 as its hardware inputs and DO8 as its assigned output.
02

Design the CI582-CN CANopen Node

Addressing, bus termination and terminal-unit choices for reliable integration.

NETWORK DISTANCE
1 Mbit/s40 m
800 kbit/s50 m
500 kbit/s100 m
250 kbit/s250 m
125 kbit/s500 m
50 kbit/s1000 m
01 · ADDRESS

Set a unique node ID and document it in the CANopen configuration.

02 · TERMINATE

Place the specified resistance only at the two physical bus ends.

03 · DE-ENERGIZE

Remove supply and process voltage before connecting or replacing the module.

03

ABB CI582-CN Procurement FAQ

Clear product guidance for maintenance teams and automation buyers.

Q01

Which front indicators support diagnosis on ABB CI582-CN?

ABB CI582-CN combines channel LEDs with PWR/RUN, CN-RUN, CN-ERR, S-ERR and I/O-Bus indicators so network and local-I/O states can be distinguished.

Q02

Which CANopen masters can control ABB CI582-CN?

ABB documents CI582-CN with supported AC500 onboard CAN manager interfaces and with the CM598-CN CANopen master; the exact CPU and software configuration must be checked.

Q03

Where does ABB CI582-CN fit in an automation system?

ABB CI582-CN suits compact remote stations that need CANopen communication and a useful block of local digital signals without a separate I/O rack.

Q04

Is ABB CI582-CN available in another environmental version?

Yes. ABB documents an XC version for extreme ambient conditions; use the exact XC order code rather than assuming the standard article has the same construction.

Q05

Can ABB CI581-CN replace ABB CI582-CN without changes?

No automatic equivalence should be assumed because the integrated channel set and terminal assignments differ; review the node mapping, wiring and master configuration.

Q06

What should an ABB CI582-CN manual and quote request contain?

Send the full article label, terminal-unit type, CANopen master, node address, bit rate, required condition, quantity, destination and delivery date.
