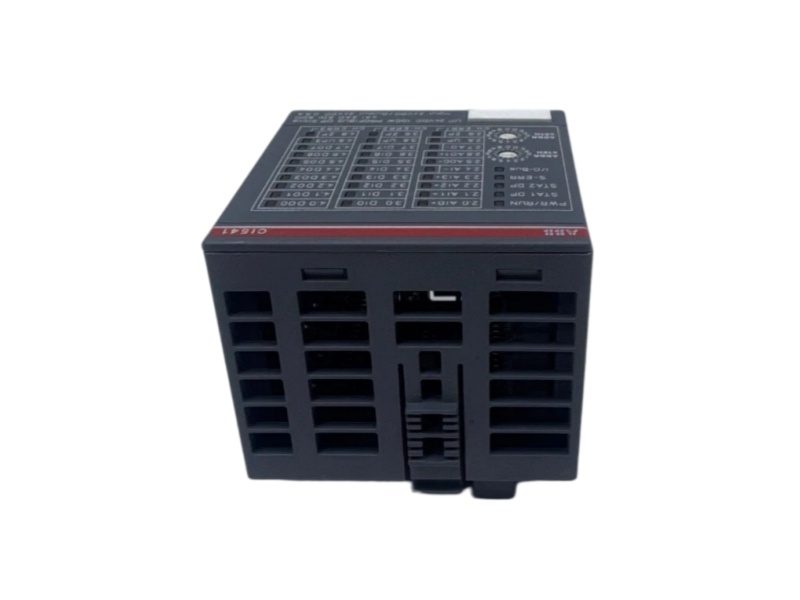

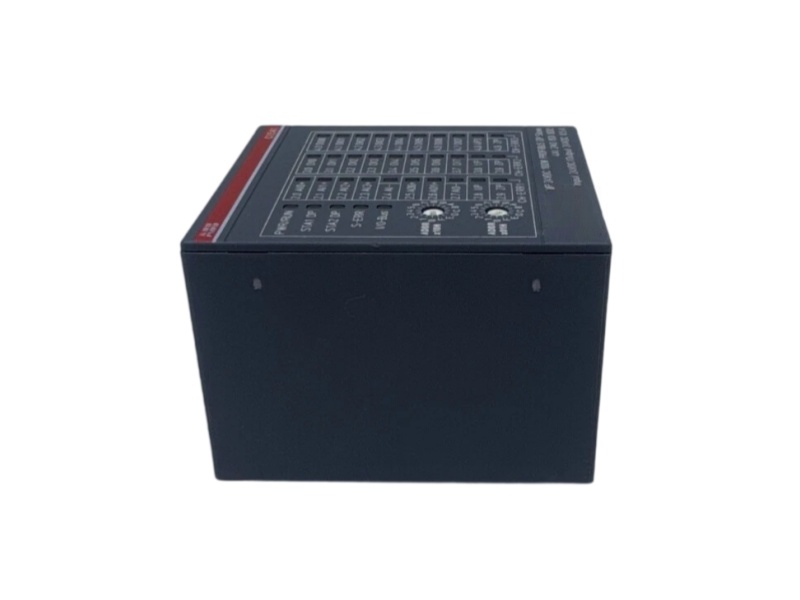

ABB CI541-DP AC500 PROFIBUS DP Interface Module
ABB CI541-DP AC500 PROFIBUS DP Interface Module
ABB CI541-DP AC500 PROFIBUS DP Interface Module

ABB CI541-DP AC500 PROFIBUS DP Interface Module

INQUIRE NOW · ABB AC500

ABB CI541-DP PROFIBUS DP Remote I/O Interface

ABB CI541-DP is a PROFIBUS DP-V0/DP-V1 slave interface with 8 digital inputs, 8 digital outputs, 4 analog inputs and 2 analog outputs for distributed AC500 I/O.

Order code 1SAP224100R0001
PROFIBUS role DP slave
Digital I/O 8 DI + 8 DO
Analog I/O 4 AI + 2 AO
Supply 24 V DC
Lifecycle Active
Order check: Confirm the PROFIBUS address and baud rate, terminal unit, analog signal types, output load, extension modules and exact order code.
★ Brand New Original
✓ One Year Warranty
✈ Worldwide Shipping
Request a CI541-DP Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number CI541-DP
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Integrated PROFIBUS Remote I/O Channels

PROFIBUS slave interface plus integrated mixed digital and analog I/O.

CI541-DP combines a PROFIBUS DP slave connection with local digital and analog channels, so the interface and onboard I/O must be checked together.

Identity, Bus & Supply 8 verified fields
Manufacturer ABB
Order code 1SAP224100R0001
Product family AC500
Interface role PROFIBUS DP slave
Protocol DP-V0 and DP-V1
Address range 00h–FFh via rotary switches
Fieldbus connector 9-pole D-sub on terminal unit
Supply External 24 V DC
Digital, Analog & Extension I/O 8 verified fields
Digital inputs 8 × 24 V DC
Digital outputs 8 × 24 V DC, 0.5 A
Analog inputs 4 configurable
Analog outputs 2 configurable
Fast-counter inputs Maximum 2 DI
Local extension Up to 10 S500 modules
Net weight 0.158 kg
Lifecycle status Active
01

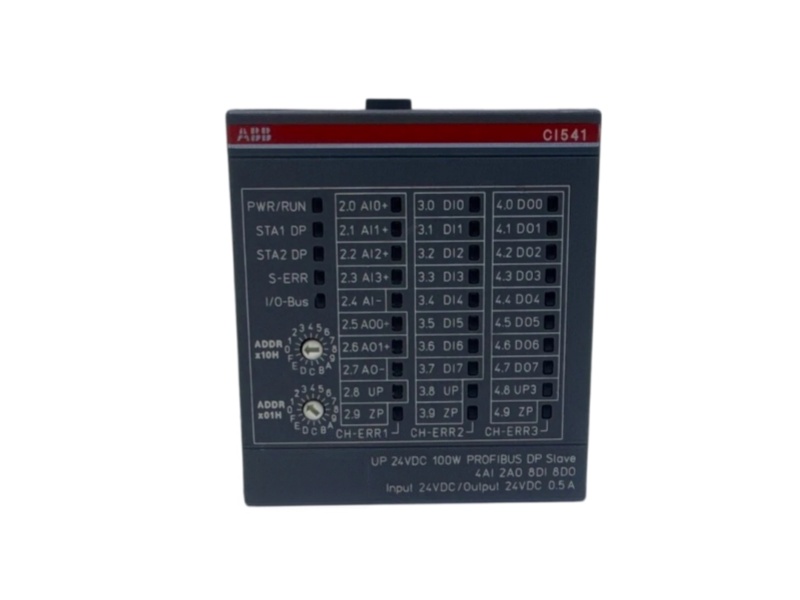

PROFIBUS station identitySet the slave address with the two front rotary switches and coordinate it with the master configuration before network startup.
02
Mixed onboard I/OThe interface includes digital and analog process channels; it is not the digital-only CI542-DP configuration.
03
Analog flexibilityThe four inputs support voltage, current and resistance-temperature sensor configurations listed by ABB; the two outputs support voltage or current operation.
04
Extension capabilityABB permits local S500 I/O expansion behind the interface, subject to module count, power and configuration limits.
02

PROFIBUS Terminal Unit & Baud-Rate Planning

Terminal-unit selection affects the physical connector and maximum bus speed, while the exact channel configuration determines wiring and process-power requirements.

Application checkpoints
01
Preferred terminal unitsABB identifies TU509 screw-terminal and TU510 spring-terminal units as the preferred 9-pole D-sub PROFIBUS connection options.
02
Alternative terminal unitsTU517 and TU518 can also be used, but ABB limits CI54x PROFIBUS operation on those terminal units to 1 Mbaud.
03
Analog field signalsSelect each of the four AI channels for the supported voltage, current or RTD mode and each AO for voltage or current operation.
Conversion checkpoints
01
Digital output loadingEach transistor output is rated 24 V DC, 0.5 A; apply the official group and total-current limits.
02
Fast-counter allocationUp to two digital inputs can be configured for fast counting, and each counter function occupies associated output/configurable-channel resources.
03
Hot-swap architectureCI541-DP can support specified hot-swap S500 configurations when the correct hot-swap terminal units and compatible module hardware are used.
Related ABB PROFIBUS and terminal-unit configurations for comparison
CI542-DP DP slave · digital I/O configuration
CI541-DP-XC Mixed I/O · extreme-condition version
TU509 24 V DC · screw terminal
TU510 24 V DC · spring terminal
03

Buyer Questions for ABB CI541-DP

PROFIBUS addressing, terminal units, mixed I/O, expansion and purchasing checks.

01 Which PROFIBUS functions does ABB CI541-DP provide?
ABB CI541-DP operates as a PROFIBUS DP-V0 and DP-V1 slave. The station address is set from 00h to FFh using the front rotary switches.
02 Which terminal unit should be selected for ABB CI541-DP at bus speeds above 1 Mbaud?
Use the ABB-preferred TU509 or TU510 D-sub terminal unit for higher supported PROFIBUS speeds. TU517 and TU518 are limited to 1 Mbaud with CI54x modules.
03 What onboard process channels are available on ABB CI541-DP?
ABB CI541-DP provides 8 digital inputs, 8 transistor digital outputs, 4 configurable analog inputs and 2 configurable analog outputs in addition to the PROFIBUS interface.
04 Can ABB CI541-DP be expanded with local S500 I/O modules?
Yes. ABB specifies local I/O extension with up to 10 S500 modules, subject to compatible hardware, terminal units, process-image, power and configuration limits.
05 Is ABB CI541-DP interchangeable with ABB CI542-DP without an I/O review?
No. CI542-DP has a different onboard I/O arrangement. Compare the complete channel map, field wiring, PROFIBUS configuration and terminal unit before any replacement.
06 Which details should be supplied when requesting ABB CI541-DP documentation and pricing?
Send order code 1SAP224100R0001, the nameplate, terminal-unit type, PROFIBUS speed and address, extension-module list, quantity, destination and required delivery date.
