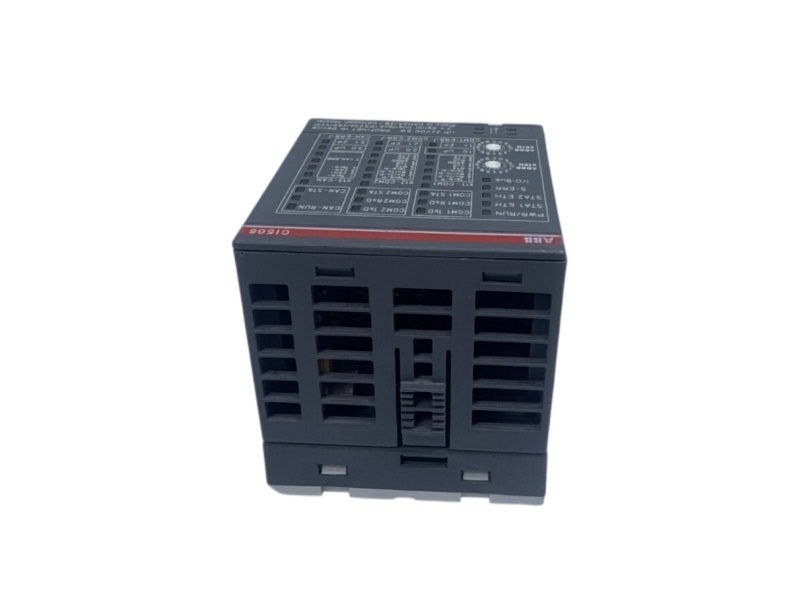

ABB CI506-PNIO product image front view

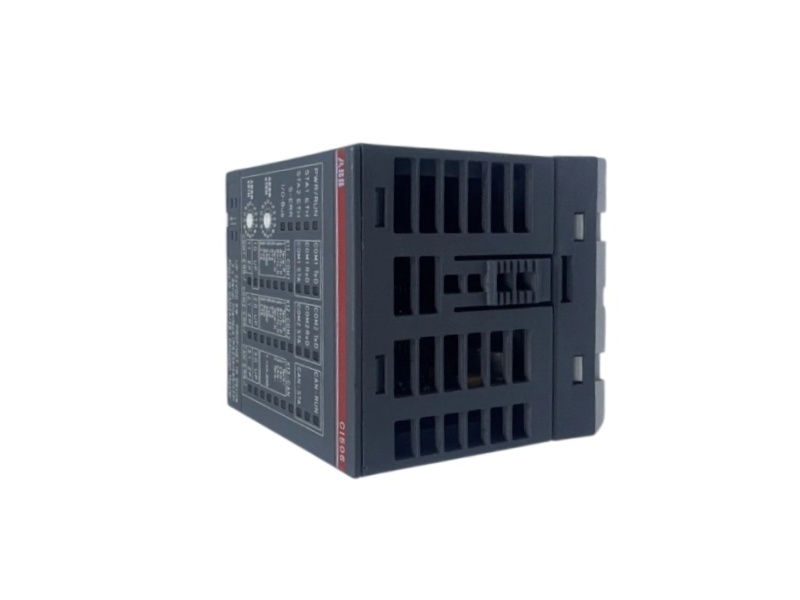

ABB CI506-PNIO product image detail view
ABB CI506-PNIO product identification view

ABB CI506-PNIO AC500 PROFINET Communication Interface with Serial and CANopen Gateway

ABB · AC500 / S500
CI506-PNIO
ABB CI506-PNIO connects PROFINET IO to two configurable serial channels and one CAN/CANopen interface for distributed gateway applications.
Serial ports
2 channels
CAN interface
1 channel
Lifecycle
Active
Requires TU520-ETH terminal unit · 0.200 kg module weight · standard AC500/S500 version
Protocol gateway
3
downstream ports
PROFINET IO RT
Two serial channels
CANopen master
INQUIRE NOW
WORLDWIDE SHIPPING
24/7 SERVICE
TOP QUALITY
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number CI506-PNIO
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Gateway interface map
Protocol, connector and data-rate facts for the standard CI506 gateway.
Official ABB interface data supports network design without mixing XC or adjacent CI variants.
01PROFINET role
IO RT device
02Serial interfaces
2
03Serial physical layers
RS-232 / 422 / 485
04Serial protocol
ASCII
05Serial data rate
300 bit/s–115.2 kbit/s
06CAN interface
CAN 2A / 2B
07CANopen role
Master
08CAN data rate
Up to 1 Mbit/s
Country of origin
Switzerland
Quantity unit
1 Piece
Module weight
0.200 kg
Official lifecycle
Active
Order review
Verify the controller family, network topology and required terminal unit before order release.
02
Distributed gateway planning
Place serial and CAN endpoints close to the field device.
PROFINET carries the gateway connection while the subordinate interfaces remain short and serviceable.
Set the station identity and interface mode from the approved engineering project before field commissioning.
01
Mount on the correct base
Use the dedicated PROFINET terminal unit so Ethernet, subordinate connectors and process supply remain correctly routed.
02
Assign the network identity
Set the PROFINET station name and address in the controller project before exchanging cyclic data.
03
Configure each channel
Select the required serial physical layer and matching ASCII communication settings for COM1 and COM2.
04
Validate diagnostics
Check module, Ethernet, serial and CAN status indications together with standard PROFINET messages.
Serial connectors
X11 / X12
CAN connector
X13
Ethernet ports
2 × RJ45
Topology support
Daisy chain / MRP client
Official ABB sources: CI506 data sheet, AC500 hardware manual and PROFINET gateway guide.
03

Buyer decision notes
Questions customers ask about ABB CI506-PNIO.
Use these answers to review gateway integration, engineering files and quotation scope.
Clear, model-specific information for a confident purchasing decision.
Which systems can ABB CI506-PNIO bridge in one remote station?
It links a PROFINET IO network with two ASCII serial devices and one CAN 2A/2B or CANopen network, allowing the gateway to sit close to subordinate equipment.
01
Which terminal unit is required to install ABB CI506-PNIO?
ABB specifies the TU520-ETH terminal unit. It provides the Ethernet ports, removable subordinate-system connectors and process-supply terminals used by the communication interface.
Can ABB CI506-PNIO and ABB CI506-PNIO-XC be treated as the same ordering article?
No. ABB lists separate standard and XC order codes. Confirm the complete nameplate and environmental version before ordering a replacement.
02
Is ABB CI506-PNIO still listed for new AC500/S500 projects?
ABB lists the standard article in the Active lifecycle phase. Commercial availability, condition and delivery should still be confirmed at quotation time.
What must be checked before substituting another PROFINET gateway for ABB CI506-PNIO?
Compare the device role, GSDML integration, serial electrical layers, CAN/CANopen function, terminal unit, network topology and application configuration.
03
Which files and quotation details help identify ABB CI506-PNIO correctly?
Request the ABB data sheet and hardware instructions, and send the order code, front-label photo, project version, required condition, quantity, destination and delivery target.
