ABB AX561 S500-eCo 4 AI / 2 AO Analog I/O Module
ABB AX561 S500-eCo 4 AI / 2 AO Analog I/O Module
ABB AX561 S500-eCo 4 AI / 2 AO Analog I/O Module

ABB AX561 S500-eCo 4 AI / 2 AO Analog I/O Module

INQUIRE NOW · ABB S500-eCo

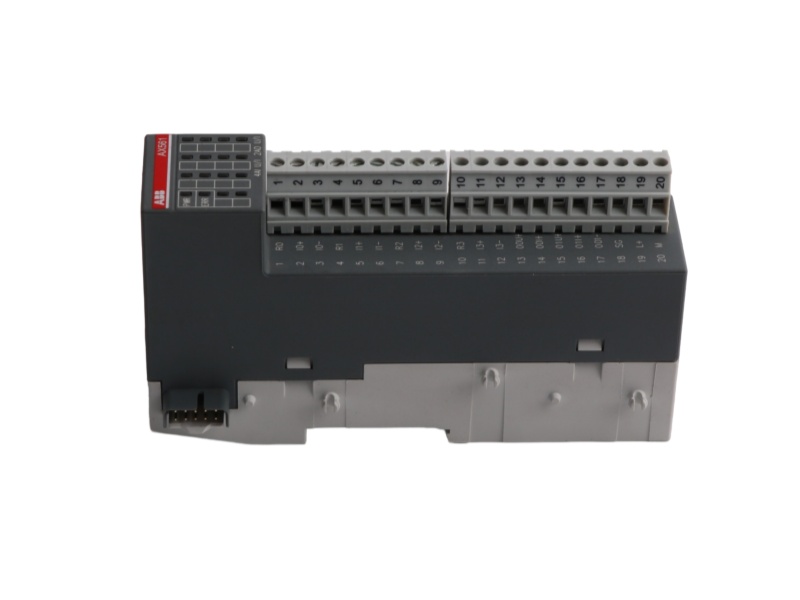

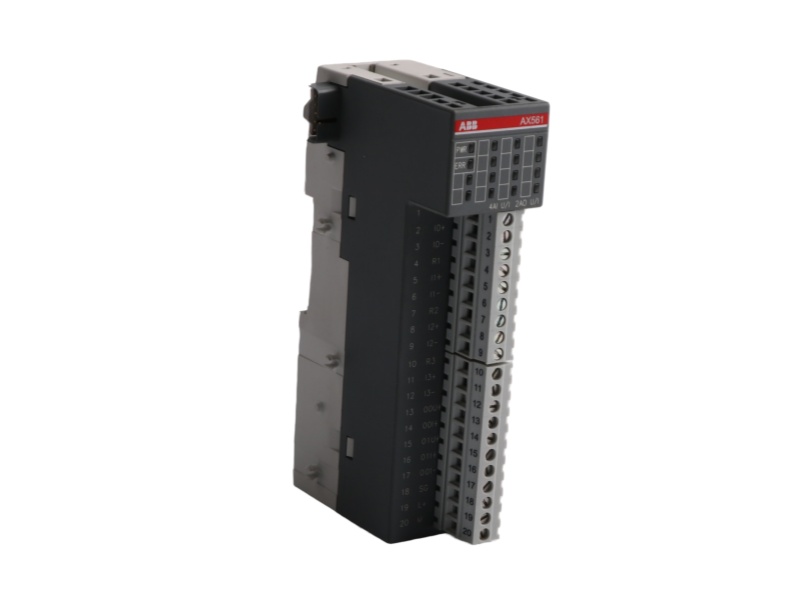

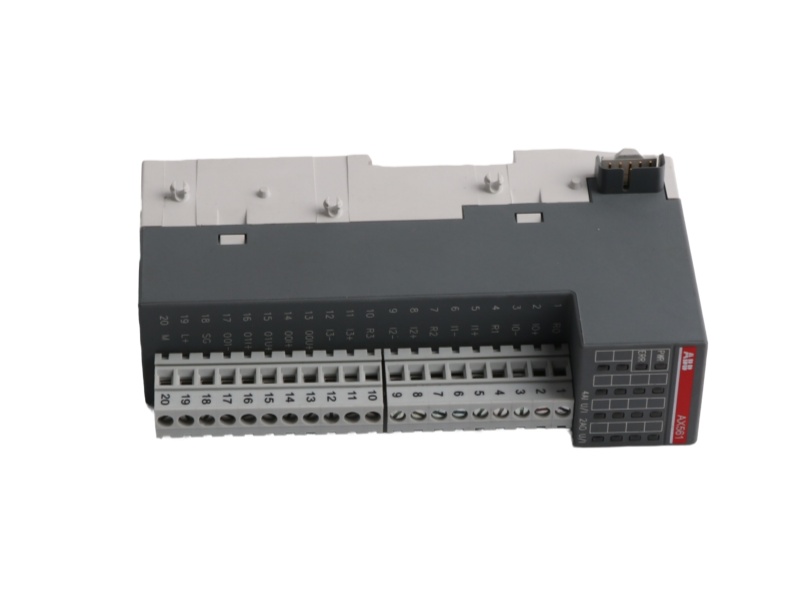

ABB AX561 Configurable Analog I/O Module

ABB AX561 combines four individually configurable voltage/current inputs and two voltage/current outputs in one 24 V DC S500-eCo analog module.

Order code 1TNE968902R1301
Analog inputs 4 × U/I
Analog outputs 2 × U/I
Supply 24 V DC
Current 0.14 A + load
Lifecycle Active
Order check: Confirm every input and output signal range, field wiring, separately ordered terminal blocks, mounting orientation and controller compatibility.
★ Brand New Original
✓ One Year Warranty
✈ Worldwide Shipping
Request a AX561 Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number AX561
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Configurable Analog Channel Map

Four configurable inputs, two outputs and terminal-block choices.

The exact AX561 configuration provides mixed voltage and current acquisition plus analog control outputs without combining unrelated temperature-input functions.

Identity, Supply & Inputs 8 verified fields
Manufacturer ABB
Order code 1TNE968902R1301
Product family S500-eCo
Module type Analog input/output
Analog inputs 4 individually configurable
Input voltage ranges ±2.5 V, ±5 V, 0–5 V, 0–10 V
Input current ranges 0–20 mA, 4–20 mA
Input grouping 1 group of 4
Outputs, Conversion & Construction 8 verified fields
Analog outputs 2 configurable U/I
Output voltage range ±10 V
Output current ranges 0–20 mA, 4–20 mA
Output grouping 1 group of 2
Process supply 24 V DC
Current consumption 0.14 A + output load
Net weight 0.122 kg
Protection IP20 with terminals fitted
01
Mixed signal selectionEach analog input can be configured for a supported voltage or current range. Match the engineering range to the field transmitter before energizing.
02
Conversion behaviorABB specifies a typical analog-to-digital conversion time of 500 microseconds per input channel.
03
No channel isolationThe inputs are not galvanically isolated from one another or from the I/O bus, so grounding and shield design require attention.
04
Terminal blocks ordered separatelyUse only the ABB TA563, TA564 or TA565 terminal blocks listed for AC500-eCo modules; they are not part of the AX561 order code.
02

Signal Range, Terminal & Mounting Selection

Accurate ordering requires a channel-by-channel signal schedule plus the correct 9-pin and 11-pin terminal blocks for the chosen wiring direction and connection method.

Application checkpoints
01
Voltage measurementsUse the supported bipolar or unipolar input range that matches the field signal; AX561 does not provide the temperature-sensor functions of dedicated RTD or thermocouple modules.
02
Current loopsThe analog inputs and outputs support 0–20 mA and 4–20 mA ranges for instrumentation and actuator loops.
03
Control outputsTwo outputs can be configured for ±10 V or current operation and share one output group.
Conversion checkpoints
01
Side-wiring screwsTA563-9 and TA563-11 provide screw terminals with side wiring.
02
Front-wiring choicesTA564-9/11 provide screw terminals and TA565-9/11 provide spring terminals for front wiring.
03
Orientation limitsABB specifies higher permissible ambient temperature for horizontal mounting than for vertical mounting; confirm the cabinet layout against the data sheet.
Related ABB S500-eCo analog modules for channel-type comparison
AI561 4 configurable analog inputs
AI568 8 configurable analog inputs
AO561 2 configurable analog outputs
AO568 8 configurable analog outputs
03

Buyer Questions for ABB AX561

Signal ranges, terminal selection, isolation, mounting and quotation checks.

01 Which voltage and current signals can ABB AX561 measure on its four analog inputs?
ABB AX561 supports ±2.5 V, ±5 V, 0–5 V, 0–10 V, 0–20 mA and 4–20 mA input ranges. Configure each input for the connected field signal.
02 Can the four analog inputs on ABB AX561 use different signal ranges at the same time?
Yes. ABB describes the four inputs as individually configurable for supported voltage or current ranges. Document the channel assignment before wiring and software configuration.
03 Are terminal blocks included with ABB AX561 order code 1TNE968902R1301?
No. ABB lists compatible TA563, TA564 and TA565 terminal blocks as separately ordered accessories. Select 9-pin and 11-pin blocks with the required screw or spring connection and wiring direction.
04 Are the analog channels on ABB AX561 galvanically isolated from the I/O bus?
No. ABB specifies no galvanic isolation between the analog inputs and the I/O bus, and no channel-to-channel isolation. Apply the official grounding, shielding and potential-difference limits.
05 How does mounting orientation affect the operating temperature of ABB AX561?
ABB specifies 0 to 60 °C for horizontal mounting and 0 to 40 °C for vertical mounting under the stated system conditions. Verify enclosure temperature and derating before installation.
06 What should a quotation request for ABB AX561 include?
Send the complete order code, quantity, destination, required delivery date, input and output ranges, terminal-block preference, controller or interface module, and a clear nameplate photo.
