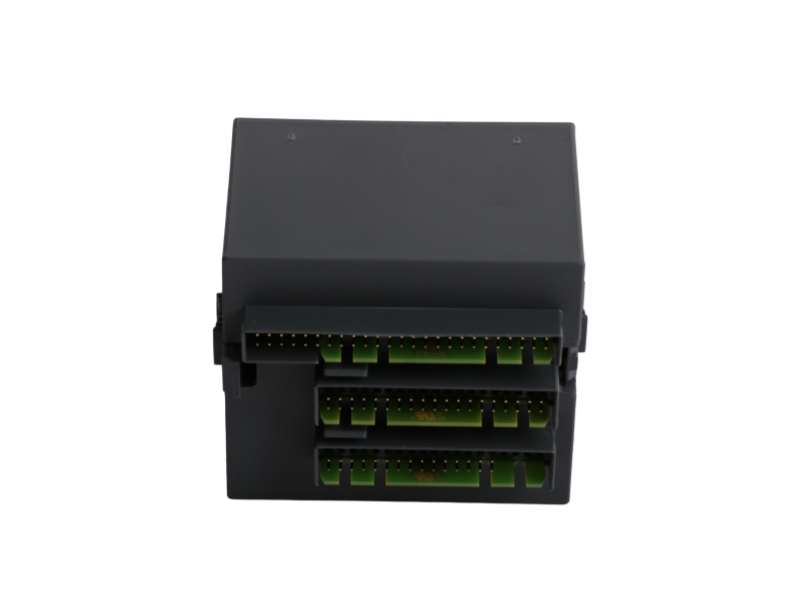

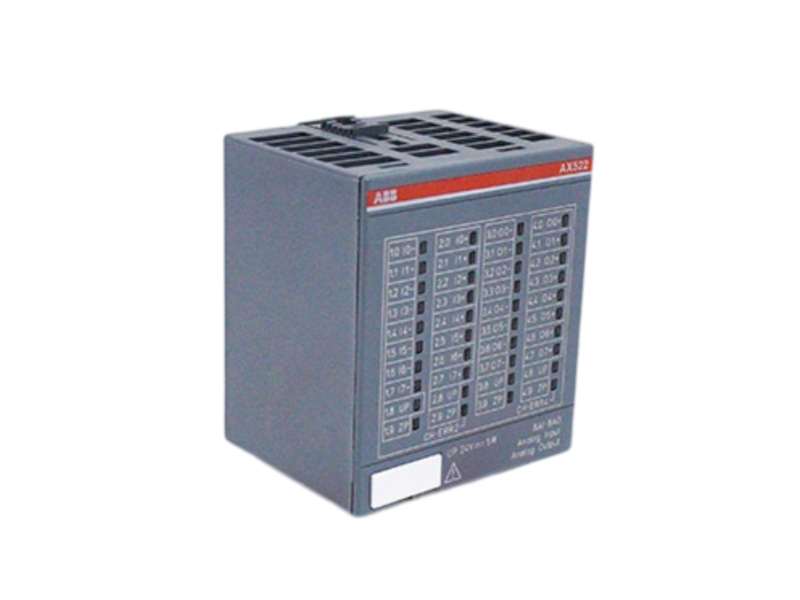

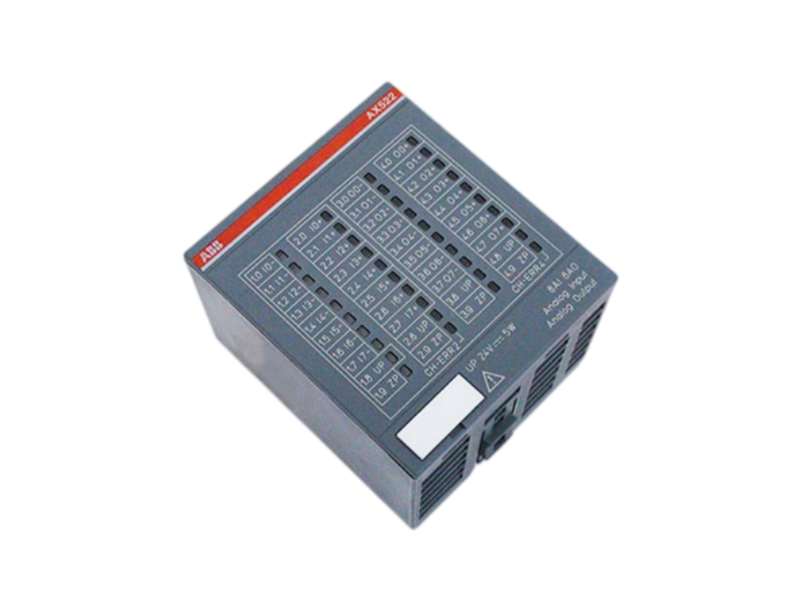

ABB AX522 is an active 24 V DC S500 analog I/O module with eight individually configurable inputs and eight outputs, 12-bit conversion and support for voltage, current and RTD signals.
| Manufacturer | ABB |
| Item number | AX522 |
| Country of Origin | Switzerland |
| Lead Time | 2-3 DAYS |
| After-Sales Support | For after-sales support, please contact May. |
| HS Code / Commodity code | Please confirm the destination before shipping. |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Sixteen analog channels with voltage, current and RTD measurement flexibility.
AX522 provides eight configurable analog measurement points and eight analog command outputs in one isolated S500 module for dense process-signal integration.
AX522 selection depends on channel-mode limits, common potentials, output loading, terminal-unit support and the hardware index when hot swap is required.
Channel modes, current-output limits, RTD wiring, isolation and hot-swap revision.
No. ABB AX522 supports current output only on channels O0–O3. All eight outputs can be configured for voltage, while O4–O7 are not current-output channels.
ABB AX522 supports Pt100, Pt1000 and Ni1000 on its configurable analog inputs. Use the documented two-wire or three-wire connection and configure each channel accordingly.
No. ABB specifies module-wise isolation to the I/O bus, not channel-to-channel isolation. Review common potentials, shielding and grounding for the complete signal group.
ABB specifies a 2 ms cycle for all eight analog inputs and eight outputs. Pt/Ni resistance-temperature measurements use a 1 s conversion cycle.
ABB's current hot-swap table requires AX522 index F0 for powered exchange on an H terminal unit. Mixed hot-swap configurations have additional minimum-index rules.
Provide order code 1SAP250000R0001, terminal unit, module index, complete channel-range schedule, RTD wiring, output loads, quantity, destination and delivery date.
Documentation, response and long-term automation spare-parts assistance.
Most products are covered by a warranty of up to 12 months, subject to the applicable terms and conditions. If any product-related issue occurs during the warranty period, our team will assist you and provide an appropriate solution.
Relevant datasheets and technical literature can be provided with the goods, offering useful information for product identification, installation, operation, and maintenance.
We understand the importance of minimizing equipment downtime. Our team responds promptly to inquiries and provides professional assistance with product information, quotations, order status, shipping, and after-sales questions.
We serve customers worldwide and provide reliable assistance from inquiry to delivery and after-sales service, ensuring clear and timely communication throughout the process.
We continue to source discontinued, obsolete, and hard-to-find automation parts from various brands, helping customers maintain existing equipment and reduce downtime caused by spare parts shortages.
Sincere Cooperation, Long-Term Trust
A Russian customer urgently needed a replacement for a discontinued automation component. After reviewing the product label, technical parameters, and application details, our engineers recommended a compatible alternative and provided photos and test videos before shipment. The alternative performed well, enhancing the customer's confidence in our technical capabilities and leading to multiple repeat orders.
An Indian customer still had doubts after initial online communication with us, so they visited our company in person for a face-to-face meeting and product inspection. This visit increased the customer's trust and led to the successful placement of their first order. Over the next few years, we completed multiple orders and established a stable, long-term partnership.
A Venezuelan customer needed a specific automation component and compared products and services from several suppliers online. After nearly three weeks of careful consideration, our sincere communication, professional service, and reliable product quality won the customer's trust. After receiving the product and using it for several weeks without any problems, the customer gave us positive feedback and subsequently placed multiple orders.
A varied reference list of specialist automation brands and model families.
Include the exact ABB order code, application, installed hardware, quantity, destination and required delivery date.
