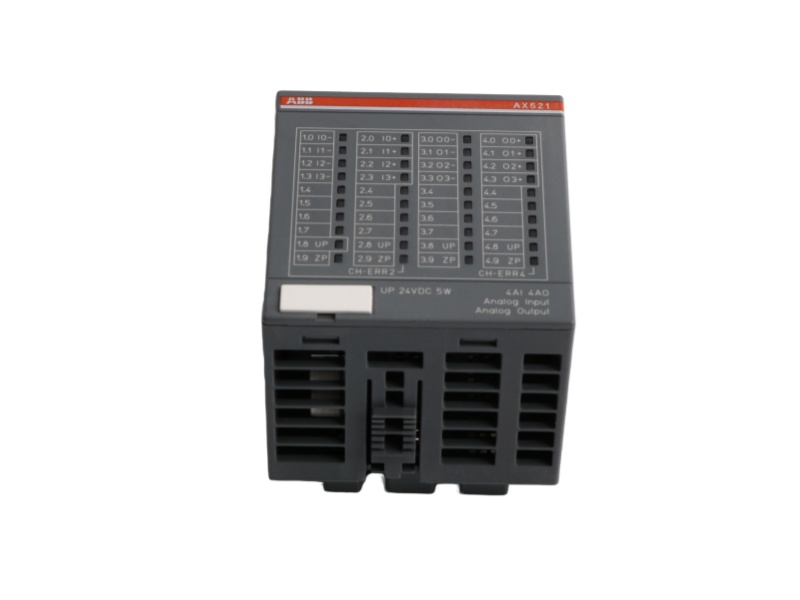

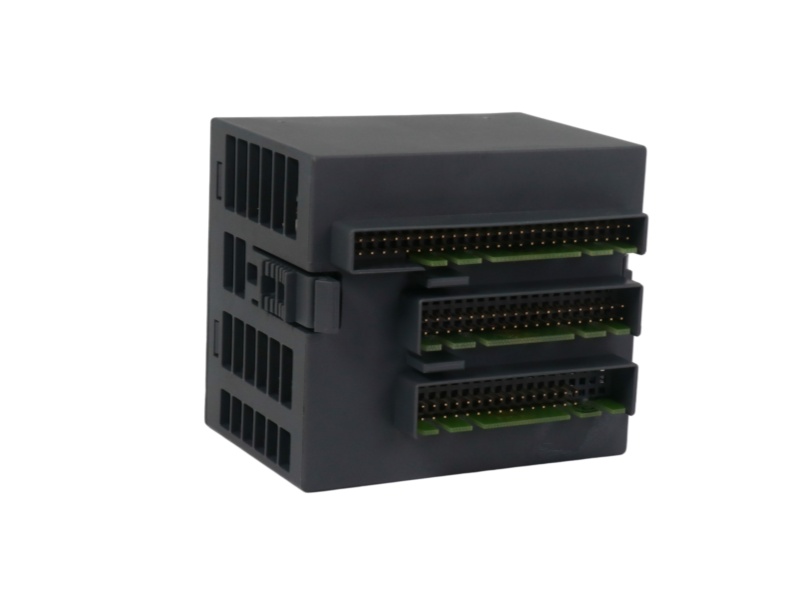

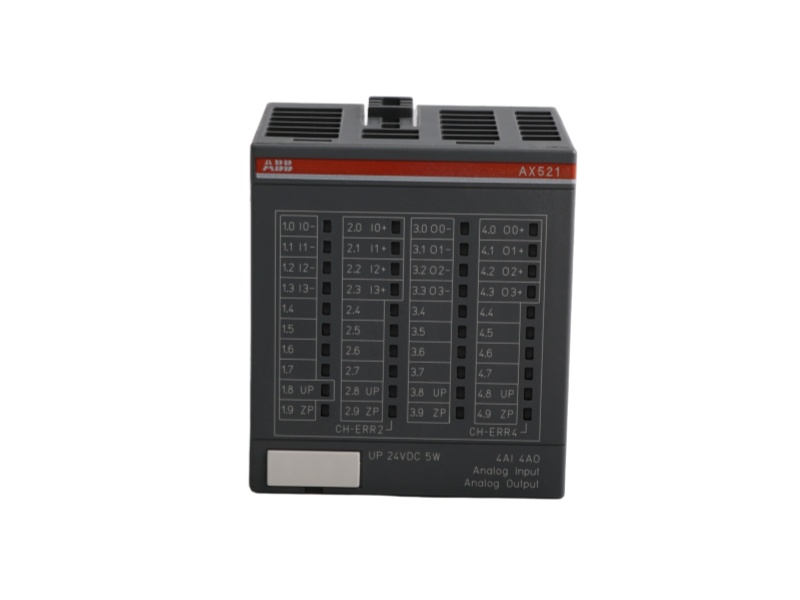

ABB AX521 S500 Analog Input/Output Module

INQUIRE NOW · ABB CONFIGURATION REVIEW

ABB AX521 S500 Analog Input/Output Module

ABB AX521 is a mixed analog expansion module for coordinated sensor acquisition and actuator control in modular automation stations. Its configurable signal paths support precise cabinet-level process integration.

ORDER CODE 1SAP250100R0001

MODULE WEIGHT 0.200 kg

CONFIGURATION REVIEW Required

Order check: Confirm the intended project scope before finalizing commercial terms.

◆ Top Quality

✓ One Year Warranty

✈ Worldwide Shipping

Request an ABB AX521 Quote

Product information

AX521 Analog Signal Architecture at a Glance

Input measurement and output command data are separated for clear channel-by-channel engineering review.

Measurement Channels

GROUP 1

Analog inputs4

Voltage modes0…10 V / ±10 V

Current modes0/4…20 mA

RTD familiesPt100 / Pt1000 / Ni1000

Bipolar resolution12 bits + sign

SIGNAL REVIEW A↔O MEASURE · CONVERT · COMMAND

Review input sensing and output actuation as independent parts of the loop design.

Command Channels

GROUP 2

Analog outputs4

Voltage command-10…+10 V

Current command0/4…20 mA

Current burden0…500 Ω

Voltage loadingMaximum ±10 mA

MODULE ROLE

Electrical isolation is provided at module level, helping separate the analog electronics from the fieldbus-side system connection.

100 mAnalog line limit

0.150 AMinimum process draw

24 V DCProcess supply

Engineer the Right AX521 Field Connection

Terminal choice, sensor wiring and bus integration are treated as separate installation decisions.

INTEGRATION & PROTECTION

01Fast analog filtering

The voltage and current input filter time constant is 100 µs.

02Digital-input reuse

An analog input can be evaluated as a digital signal with a configurable response interval.

03Channel monitoring

Plausibility, wire-break and short-circuit monitoring are configurable by channel.

04Polarity protection

The process-voltage connection includes reverse-polarity protection.

05Bus-powered logic

Module logic is supplied internally through the extension-bus interface.

06Station integration

The fieldbus path is provided through an AC500 CPU or a supported communication-interface module.

MAPAssign each sensor and actuator before terminal wiring.

MATCHVerify the selected base against the cabinet connection standard.

VERIFYApprove range scaling and diagnostic behavior in the controller project.
