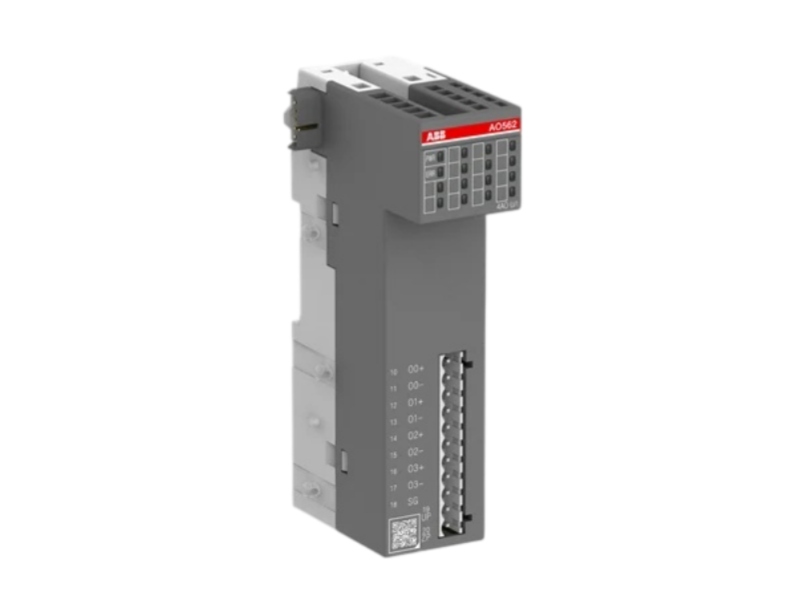

ABB AO562 analog output module front view

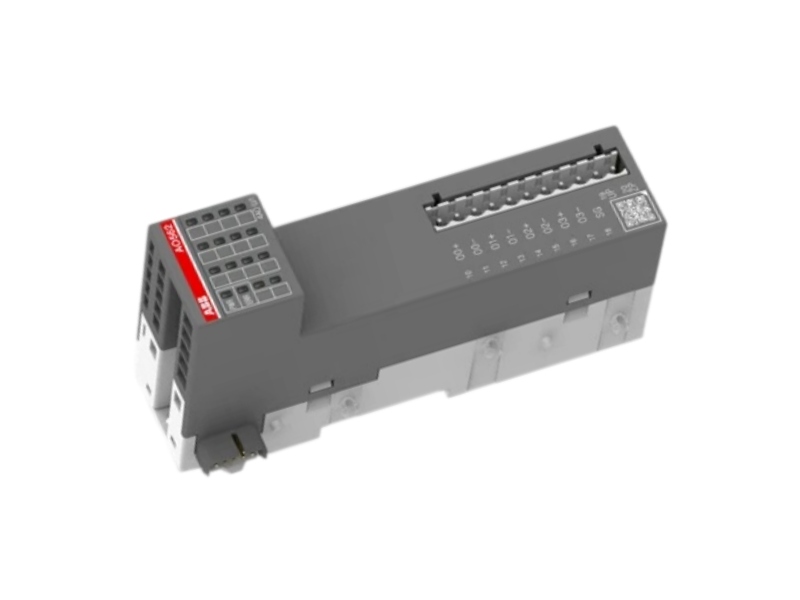

ABB AO562 analog output module side view
ABB AO562 analog output module product view

ABB AO562 S500-eCo 4-Channel Voltage and Current Analog Output Module

ABB · S500-eCoACTIVE
AO562
ABB AO562 is an active S500-eCo analog output module with four individually configurable voltage or current channels.
ANALOG OUTPUTS
4
VOLTAGE MODE
−10 to +10 V
CURRENT MODES
0–20 / 4–20 mA
Confirm every channel mode, connected load and selected terminal blocks before replacement.
12 bitsRESOLUTION
24 V DCSUPPLY
4ANALOG OUTPUTS
INQUIRE NOW
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number AO562
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
ANALOG OUTPUT RANGE
Four configurable channels for voltage and current actuation.
Each output is assigned its own signal mode, so the project and field wiring must agree channel by channel.
PRIMARY
Analog outputs
4
Configuration
Individual per channel
Bipolar voltage
−10 to +10 V
Unipolar voltage
0–10 V
SYSTEM
Current range
0–20 mA
Live-zero current
4–20 mA
Voltage resolution
12 bits incl. sign
Current resolution
12 bits
INSTALLATION
Process supply
24 V DC
Module current
0.05 A max.
Isolation
Per module
Terminal-block family
TA563 / TA564 / TA565
Analog outputs
4
Terminal blocks
TA563 / TA564 / TA565
Catalog weight
0.125 kg
Country of origin
Germany
Lifecycle
Active
02
OUTPUT CONFIGURATION
Channel-specific signal selection for connected actuators.
Voltage and current modes share the module but require different load and wiring checks during commissioning.
01
SYSTEM FUNCTION
Voltage operation
Channels can be configured for bipolar −10 to +10 V or unipolar 0–10 V output.
02
SYSTEM FUNCTION
Current operation
Selectable 0–20 mA and 4–20 mA modes support conventional analog current loops.
03
SYSTEM FUNCTION
Project alignment
The engineering setting for each channel must match its terminal wiring and the receiving device.
CONFIGURATION SUMMARY
Channels4
Voltage modes2
Current modes2
INSTALLATION REVIEW
Align command signals with actuators.
Match mode, load and scaling
OUTPUT MODE
V or mA
CHECK
RECEIVER RANGE
Per channel
CHECK
SIGNAL
Load matched
CHECK
POLARITY
Confirmed
CHECK
AO TERMINAL
TA563 / 4 / 5
CHECK
Keep the engineering range, field polarity and receiving-device requirements consistent channel by channel.
03
SELECTION & SUPPORT FAQ
Clear answers for confident AO562 selection.
Use the complete model and installed-system details to confirm a reliable match before purchase.
Prepare a precise match.
01 · NAMEPLATE
Full model and hardware index
02 · INSTALLED SYSTEM
Base, wiring and connected modules
03 · PROJECT
Software, settings and required condition
Q1
Can ABB AO562 mix voltage and current outputs on the same module?
Yes. ABB documents individual channel configuration, allowing each output to use an approved voltage or current range as defined in the project.
Q2
Which output ranges are available on ABB AO562?
The module supports −10 to +10 V, 0–10 V, 0–20 mA and 4–20 mA. Configure the exact range to match the receiving device.
Q3
Which terminal blocks are compatible with ABB AO562?
ABB lists suitable TA563, TA564 and TA565 terminal-block variants. Confirm pin count, screw or spring style and cable direction before ordering.
Q4
What should be checked before replacing ABB AO562?
Record every channel mode, load type, wiring polarity, terminal-block configuration and project scaling before moving the field connections.
Q5
Is ABB AO562 still listed as an active module?
Yes. ABB lists AO562 in the Active lifecycle phase. Requested condition, quantity and delivery availability should still be confirmed at quotation.
Q6
What information is needed for an ABB AO562 inquiry?
Send the complete model, signal mode for each channel, load details, terminal-block reference, quantity, destination and delivery date for matched documentation and pricing.
