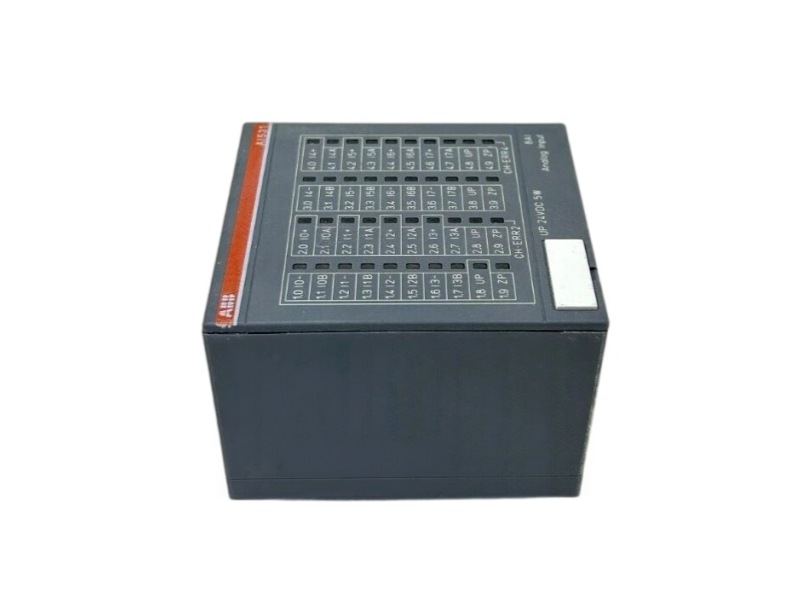

ABB AI531 Universal Analog Input Module front view

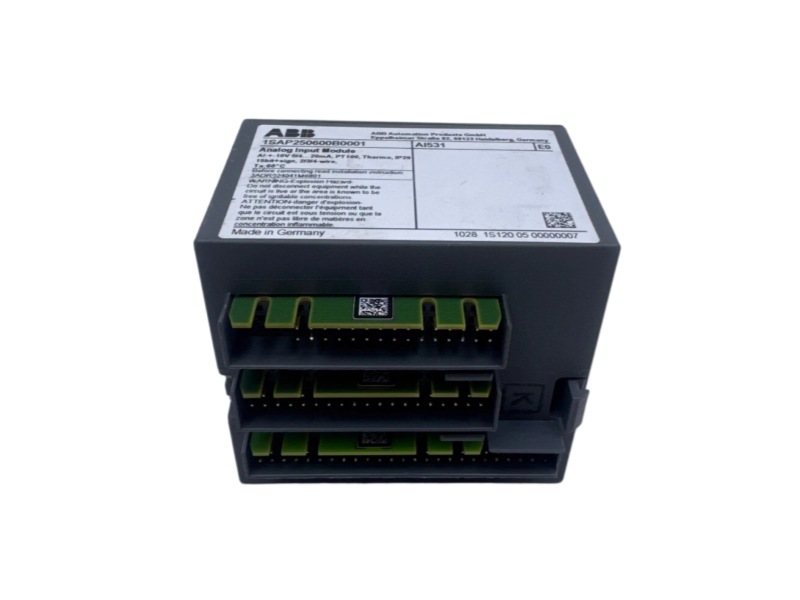

ABB AI531 Universal Analog Input Module side view
ABB AI531 Universal Analog Input Module terminal view

ABB AI531 S500 8-Channel Universal Analog Input Module

ABB · S500ACTIVE
AI531
ABB AI531 is an active S500 universal analog input module with eight channels for voltage, current, resistance, RTD and thermocouple signals.
ANALOG INPUTS
8 channels
SIGNAL FAMILIES
U / I / RTD / TC
RESOLUTION
16 bits incl. sign
Confirm each channel range, sensor wiring and TU515 or TU516 terminal unit before replacement.
1 msCONVERSION
24 V DCPROCESS SUPPLY
8 channelsANALOG INPUTS
INQUIRE NOW
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number AI531
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
UNIVERSAL ANALOG INPUT
Eight channels for electrical and temperature measurement.
Signal ranges, resolution and diagnostics must be assigned channel by channel to match the installed sensors.
PRIMARY
Analog channels
8
Voltage ranges
±50 mV to ±10 V
Current ranges
0/4–20 mA and ±20 mA
RTD types
Pt100 / Pt1000 / Ni1000
SYSTEM
Resistance input
0–50 kΩ
Thermocouples
J / K / T / N / S
Voltage resolution
16 bits incl. sign
Temperature resolution
0.1 / 0.01 °C
INSTALLATION
Conversion time
1 ms
RTD conversion
1 s
Input filter
100 µs
Process supply current
0.150 A max.
Analog channels
8
Terminal units
TU515 / TU516
Catalog weight
0.128 kg
Country of origin
Germany
Lifecycle
Active
02
MEASUREMENT PATH
Signal conditioning from field sensor to converted value.
The module combines wide signal coverage with channel diagnostics and configurable digital-input behavior.
01
SYSTEM FUNCTION
Range assignment
Voltage, current, resistance, RTD and thermocouple modes are selected to match the connected sensor.
02
SYSTEM FUNCTION
Temperature sensing
RTD and thermocouple inputs support industrial temperature measurement with dedicated conversion behavior.
03
SYSTEM FUNCTION
Channel diagnostics
Plausibility, wire-break and short-circuit monitoring support fault identification for applicable modes.
CONFIGURATION SUMMARY
Basic voltage error±0.1%
Basic current error±0.3%
Maximum cable100 m
INSTALLATION REVIEW
Confirm the analog measurement chain.
Align each sensor with its channel
SENSOR TYPE
U / I / RTD / TC
CHECK
CHANNEL RNG
Parameterized
CHECK
RTD COMPENSATION
2 / 3 / 4 wire
CHECK
WIRING
Sensor specific
CHECK
AI BASE
TU515 / TU516
CHECK
Check range, wiring method and diagnostics for every active channel before commissioning.
03
SELECTION & SUPPORT FAQ
Clear answers for confident AI531 selection.
Use the complete model and installed-system details to confirm a reliable match before purchase.
Prepare a precise match.
01 · NAMEPLATE
Full model and hardware index
02 · INSTALLED SYSTEM
Base, wiring and connected modules
03 · PROJECT
Software, settings and required condition
Q1
Which signal types can ABB AI531 measure?
AI531 supports voltage, current, resistance, Pt100, Pt1000, Ni1000, Cu50 and J, K, T, N and S thermocouple ranges. Configure each channel for the connected sensor.
Q2
Which terminal unit is required for ABB AI531?
ABB specifies TU515 or TU516. Select the screw- or spring-terminal version required by the panel and preserve the original channel wiring during replacement.
Q3
Can ABB AI531 channels be used as digital inputs?
Yes. ABB documents a 24 V digital-input mode for the analog channels. The input threshold and delay must be configured for the application.
Q4
How should ABB AI531 be matched to an existing temperature sensor?
Confirm sensor type, two-, three- or four-wire connection, measuring range, compensation and channel parameterization before transferring the wiring.
Q5
Is an XC version available for ABB AI531?
Yes. ABB lists AI531-XC as a separate active extended-condition module. Environmental qualification and the complete configuration must be checked before substitution.
Q6
What information should accompany an ABB AI531 inquiry?
Provide the complete model, terminal-unit type, signal range for every used channel, sensor wiring, quantity, destination and delivery date for a precise manual and quotation review.
EXACT CONFIGURATION: AI531
