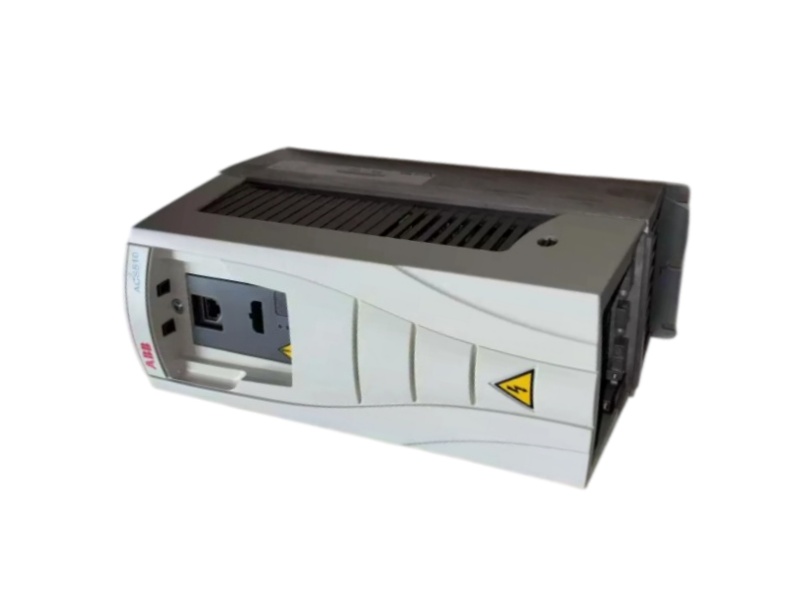

ABB ACS510-01-09A4-4 AC drive front view

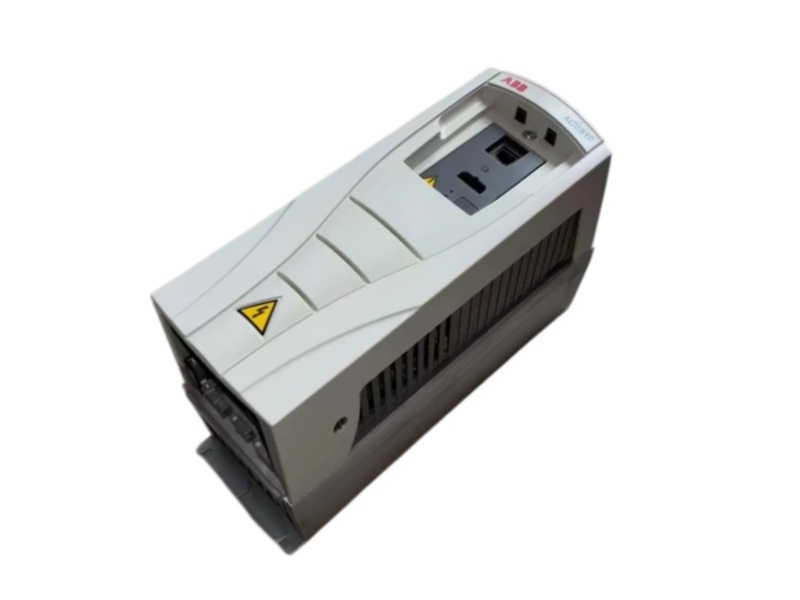

ABB ACS510-01-09A4-4 AC drive alternate view

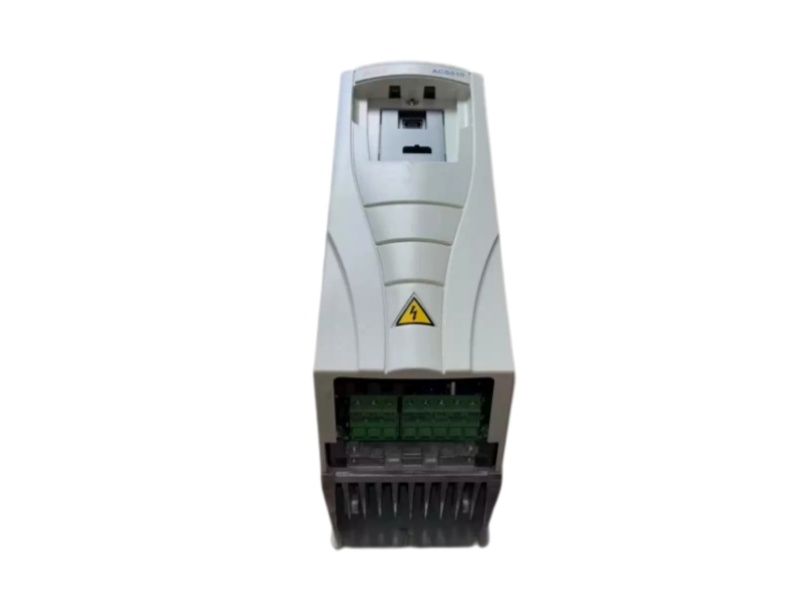

ABB ACS510-01-09A4-4 AC drive detail view

ABB ACS510-01-09A4-4 General Purpose AC Drive 4 kW


ABB · ACS510 · General Purpose Drive
ACS510-01-09A4-4

ACS510-01-09A4-4 is an ABB general-purpose AC drive for three-phase 380–480 V systems, with 9.4 A output, a 4 kW motor rating and an IP21 enclosure.

INPUT
3AC 380–480 V
OUTPUT CURRENT
9.4 A
MOTOR POWER
4 kW
DRIVE ROLE
GENERAL
PURPOSE
VFD
IP21 enclosure · ACS510
◆ One Year Warranty ◆ Fast Delivery ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number ACS510-01-09A4-4
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 850440
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
PRODUCT INFORMATION

Electrical path from mains to motor.

Official specifications organized by function, performance and selection boundaries.
ACS510-01-09A4-4 · DRIVE
4 kW
General-purpose motor drive

The official ABB record identifies a 9.4 A, 380 V-class IP21 drive; the user manual defines the 380–480 V input family.

INPUT3-phase
OUTPUT9.4 A
ENCLOSUREIP21
SUPPLY
380–480 V
INPUT FREQUENCY
48–63 Hz
OUTPUT FREQUENCY
0–500 Hz
MOTOR RATING
4 kW
DRIVE FAMILY
ACS510
INPUT PHASE
Three phase
INPUT VOLTAGE
380–480 V
RATED CURRENT
9.4 A
MOTOR POWER
4 kW
ENCLOSURE
IP21
OUTPUT FREQUENCY
0–500 Hz
APPLICATION
General-purpose variable speed
SOURCE BOUNDARY · ABB’s exact product record gives 9.4 A, 380 V class and IP21; installation values are taken from the official ACS510 user manual for this frame family.
02
DRIVE COMMISSIONING

Four checks for drive-to-motor commissioning.

A clean sequence for supply, motor, enclosure and parameter verification.

01

Verify the incoming supply

Confirm three-phase 380–480 V power and the permitted 48–63 Hz input frequency.

02

Match the motor nameplate

Check voltage, full-load current and 4 kW duty before entering motor data.

03

Confirm the enclosure plan

IP21 requires a suitable cabinet environment, clearances and cooling path.

04

Back up and review parameters

Record the existing application settings and verify control wiring before energizing.

APPLICATION PROFILE

General-purpose variable-speed control for 380–480 V three-phase motors.

SELECTION BOUNDARY

Do not transfer parameters from another ACS model without checking the application and motor.

Official reference: ABB official ACS510 product record and user manual.
03
BUYER FAQ

Six ACS510 exact-drive questions.

Specifications and system fit first; lifecycle and ordering checks follow.
01

What are the main ratings?

The exact ABB record lists 9.4 A, 380 V class, 4 kW and IP21.

02

What supply does the drive require?

The ACS510-01 family uses three-phase 380–480 V input.

03

What output-frequency range is documented?

The official user manual lists 0–500 Hz output.

04

Can it replace another ACS510 size directly?

Electrical ratings, frame, wiring and parameters must be checked; size alone is not sufficient.

05

What manuals are needed?

Use the official ACS510 user manual and the exact product record for installation and commissioning.

06

What should be sent for quotation?

Send the full type code, motor nameplate, control option details, quantity, destination and required date.
