Description: VM600 MPC4 200-510-070-113 machinery protection card
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | VIBRO-METER |
| Item number | VM600 MPC4 200-510-070-113 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Machinery-Protection Expertise
Technical Data Pack: VIBRO-METER VM600 MPC4 200-510-070-113
Product Identity

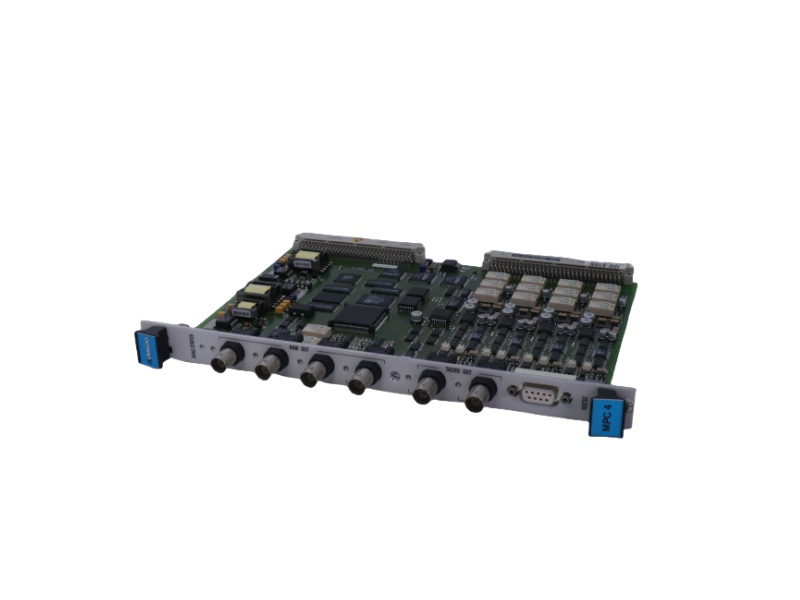

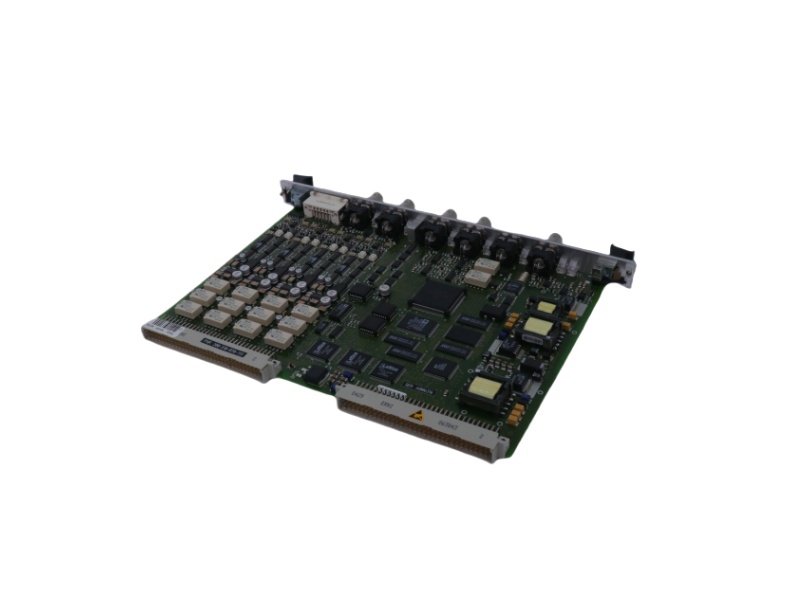

VM600 MPC4 (PN 200-510-070-113) is a compact machinery protection controller that combines four universal dynamic-input channels, two speed/tachometer channels, and a dual-core ARM Cortex-A9 DSP on a single 3U card. It delivers SIL-2 certified protection logic for vibration, speed, and process variables in rotating machinery .
Core Specifications
|
Parameter |
Value |
|
Dynamic Inputs |
4 (acceleration, velocity, displacement, dynamic pressure) |
|
Tachometer Inputs |
2 (phase & speed) |
|
Sampling Rate |
50 kHz per channel |
|
Scan Cycle |
Deterministic 2 ms |
|
Memory |
1 GB DDR3, 8 GB eMMC |
|
Communications |
2 × 1 GbE (EtherNet/IP, Modbus TCP), RS-485, USB 2.0 |
|
Safety Rating |
SIL 2 (IEC 61508) |
|
Power |
24 V DC ±20 %, redundant terminals |
|
Operating Temp |
–40 °C … +70 °C |
|
Housing |
IP66 front, IP20 rear, fanless |
|
Dimensions |
163 × 38 × 58 mm, 0.35 kg |
Key Features
• All-in-one card: signal conditioning, protection logic, and network gateway in one slot
• Real-time DSP: FFT, phase analysis, order tracking, envelope demodulation
• Hot-swap: card can be inserted/removed live without rack shutdown
• Front BNCs: direct access to raw signals for portable analyzers
• 7 LEDs: STATUS, ALERT, DANGER, OK, TX/RX, POWER, FAULT
Typical Applications
• Gas & steam turbine bearing monitoring
• Centrifugal compressor surge protection
• Pipeline booster station pump diagnostics
• Marine engine crankshaft deflection tracking
Related VM600 Hardware
|
Part Number |
Description |
|
200-510-070-113 |
MPC4 controller (this unit) |
|
200-510-111-034 |
IOC4T 8-channel temperature / 4–20 mA card |
|
200-560-000-111 |
IOC4T universal vibration card |
|
200-566-000-113 |
IOCN vibration/speed card |
|
200-582-500-013 |
RPS6U 24 V DC redundant power supply |
|
200-570-000-014 |
RLC16 relay output card (16 SPDT) |
|
200-595-100-032 |
CPUM central processing module |
All items are factory-sealed and in stock for same-day dispatch.
Ordering & Stock
PLC Autocontroller keeps the VM600 MPC4 200-510-070-113 in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
