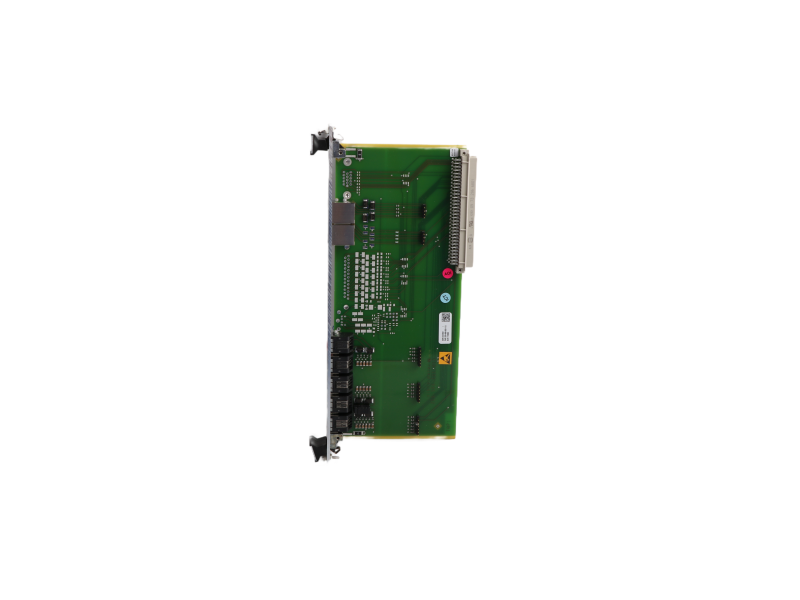

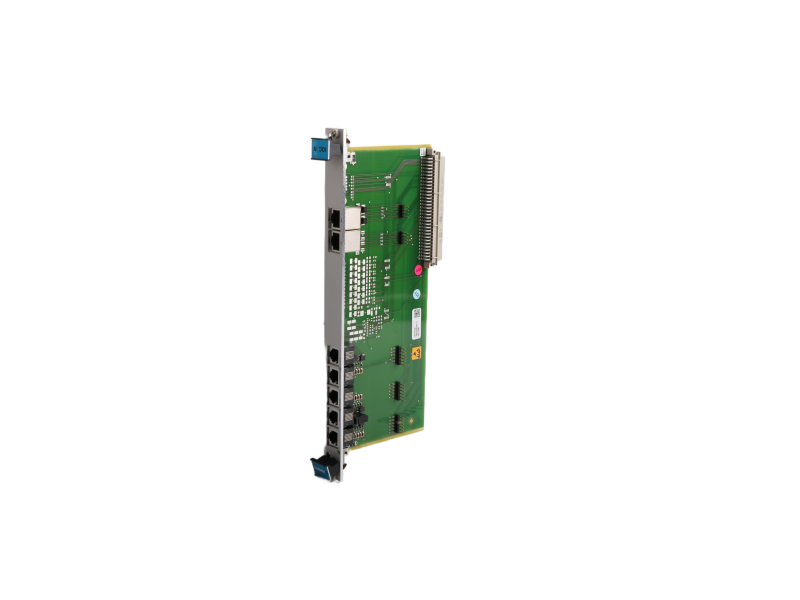

Description: VM600 IOCN 200-566-000-113: Network communication interface module, supporting Ethernet connectivity and remote monitoring.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | VIBRO-METER |
| Item number | VM600 IOCN 200-566-000-113 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Industrial-grade interface for simultaneous Modbus-TCP, OPC-UA, MQTT, RTU and ASCII data streams — certified for Zone 2 and marine applications.
Functional Overview
The IOCN module converts internal VM600 registers into industry-standard protocols without additional software. Two independent 10/100 Mb Ethernet ports and one software-selectable RS-485 (2-wire or 4-wire) provide physical redundancy and mixed-media networks.
Technical Data
|
Parameter |
Value |
Test Standard |
|
Supply |
5 VDC ±5 %, 0.4 A |
Back-plane IEC 60950-1 |
|
Isolation |
2 kV RMS 50 Hz, 1 min |
IEC 60255-5 |
|
Surge |
4 kV line-earth, 2 kV line-line |
IEC 61000-4-5 |
|
Ethernet |
10/100 Mb, auto-MDIX, 2 ports |
IEEE 802.3 |
|
Serial |
RS-485 2W/4W, 1200 m, 38.4 kBd |
TIA/EIA-485-A |
|
Operating temp |
-40 … +70 °C |
IEC 60068-2-1/-2 |
|
Salt mist |
1000 h |
IEC 60068-2-52 |
|
MTBF |
> 200 000 h @ 40 °C |
MIL-HDBK-217F |
Protocol Stack & Capacity
|
Service |
Max Sessions |
Data Update |
Latency |
|
Modbus-TCP |
8 clients |
1 ms/Register |
<5 ms |
|
OPC-UA Server |
5 sessions |
1 kHz subscription |
<10 ms |
|
MQTT Publisher |
3 brokers |
1 kHz topic |
<15 ms |
|
Modbus-RTU |
1 master |
38.4 kBd |
3.5 char time |
|
ASCII Raw |
1 stream |
10 kHz burst |
<1 ms |
Installation Workflow
① Insert into any I/O slot – lever locks automatically
② Select protocol template via on-board web page (no restart)
③ Save → traffic starts immediately; LED bar confirms link health
Real-World Deployments
• Refinery hydro-cracker: OPC-UA to ABB 800xA, 15 k tags, zero re-transmit
• City gas SCADA: MQTT over 4 G to AWS IoT, end-to-end <80 ms
• Desert compressor: Modbus-RTU 2-wire, 1200 m, no repeater
Need a spare or a full rack?
One e-mail to ab@mooreplc.com covers quotation, export docs and worldwide freight – no hidden charges, no field-service fee.
