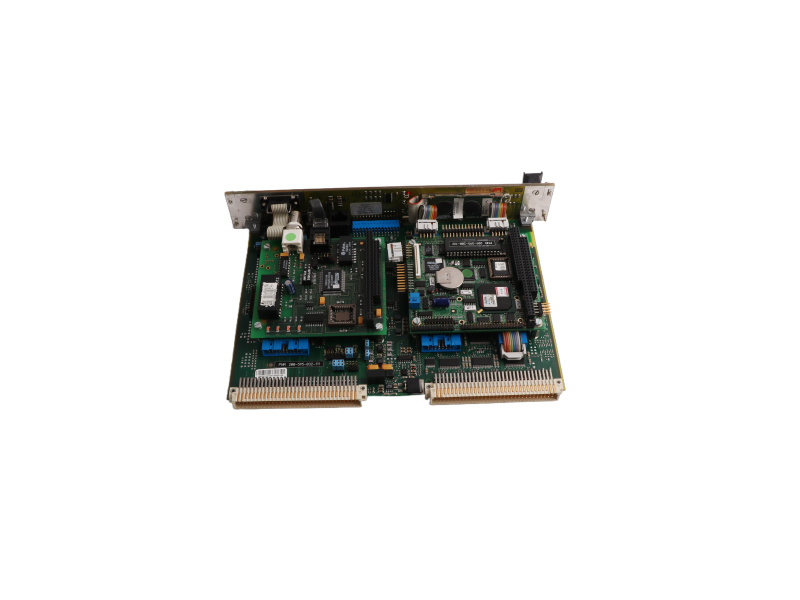

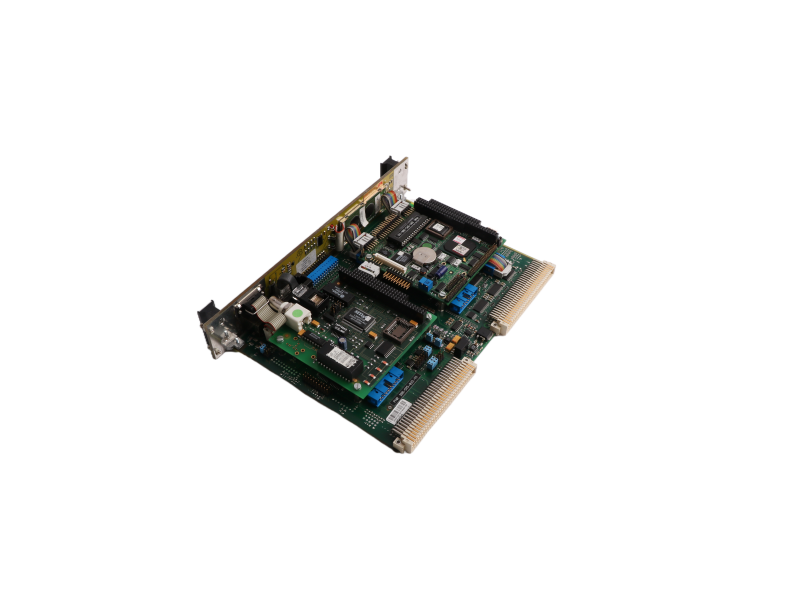

Description: 209-595-200-132: VM600 high-performance CPU module, 3.5 GHz/16 GB/256 GB, multi-protocol.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | VIBRO-METER |
| Item number | VM600 CPUM 209-595-200-132 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Highlights at a glance
3.5 GHz quad-core 64-bit CPU | 256 GB NVMe log ring | 5 independent comm ports | Zero-downtime hot-swap
1.Core Capabilities
• Scan cycle ≤ 0.5 ms/register — meets high-speed run-up/shutdown monitoring
• Dual GbE + triple serial online simultaneously; Modbus-TCP / OPC-UA / MQTT / RTU without external gateway
• NVMe circular buffer 90 days, auto back-fill on network loss, eliminates data gaps
• Conductive-passivated aluminium block, no moving parts, 1000 h salt-spray & 5 g vibration passed — proven offshore and in deserts
2.Technical Snapshot (Rev. E)
|
Performance Item |
Value |
Basis |
|
CPU load @ 15 k Tags |
18 % |
Internal 1 ms cycle benchmark |
|
Alarm latency |
6 ms |
Register bit → relay coil |
|
SSD write endurance |
150 TBW |
5-year circular log |
|
Power consumption |
5 V / 1.3 A |
Back-plane hot-swap |
|
MTBF |
220 kh @ 40 °C |
MIL-HDBK-217F |
3.Port Map
|
Interface |
Physical Layer |
Default Role |
Peak Load |
|
ETH-A |
10/100/1000 Mb |
Modbus-TCP Server |
8 clients |
|
ETH-B |
10/100/1000 Mb |
OPC-UA Publisher |
5 sessions |
|
COM-1 |
RS-485 2-wire |
Modbus-RTU Master |
32 slaves |
|
COM-2 |
RS-232 |
ASCII debug stream |
any |
|
COM-3 |
RS-422 |
IRIG-B time sync |
1 pps |
4.Plug-and-Run Workflow
① Insert into any I/O slot → ② Select protocol template via web → ③ Save & go; LED runway shows link health in real time, no third-party software required.
What happens next?
Based on over 5000 reviews Description: VM600 RPS6U SIM-275A 200-582-500-013: 6U rack-mount power supply module, providing stable system power supply and redundancy. Product condition: New Packing condition:Factory Packing 100% insured shipping: A guarantee for your purchases PLC Autocontroller DELIVER PARTS TO WORLD.
Details
Based on over 5000 reviews Description: The basic version features a main processor with standard vibration protection, four 100 MB Ethernet ports (two redundant), RS-232/485 serial ports, and a CompactFlash memory card. It is suitable for conventional steam turbine or compressor cranking monitoring. Product condition: New Packing condition:Factory Packing 100% insured shipping: A guarantee for your purchases PLC Autocontroller DELIVER PARTS TO WORLD.
Details
Based on over 5000 reviews Description: The "Petrochemical Extended" version adds two 1000 MB SFP fiber optic Ethernet ports to the 041 version, ATEX/IECEx Zone 2 certification, and a built-in IEC 61850/MMS power communications stack. It is suitable for petrochemical, natural gas, and gas turbine combined cycle power plants. Product condition: New Packing condition:Factory Packing 100% insured shipping: A guarantee for your purchases PLC Autocontroller DELIVER PARTS TO WORLD.
Details
Based on over 5000 reviews Description: The "High-Speed" version features a 50% increase in CPU frequency, doubled RAM, support for 256 kHz oversampling, and 204,800-line resolution FFTs. It also includes USB 2.0 and SD card slots for high-frequency vibration analysis in applications such as high-speed gearboxes and machine tool spindles. Product condition: New Packing condition:Factory Packing 100% insured shipping: A guarantee for your purchases PLC Autocontroller DELIVER PARTS TO WORLD.
Details
Based on over 5000 reviews Description: The "Flagship" version integrates a dual-core Cortex-A9 with FPGA coprocessor, comes with a 32GB eMMC, dual 1000MB RJ45 + dual SFP fiber ports, supports IEEE 1588v2 clock synchronization, redundant ring networks (PRP/HSR), and cloud-based MQTT/OPC UA. It provides highly reliable, low-latency distributed protection and diagnostics for large, critical units. Product condition: New Packing condition:Factory Packing 100% insured shipping: A guarantee for your purchases PLC Autocontroller DELIVER PARTS TO WORLD.
Details
Based on over 5000 reviews Description: 200-595-100-032: VM600 entry-level CPU module, wide-temp design, undocumented comms. Product condition: New Packing condition:Factory Packing 100% insured shipping: A guarantee for your purchases PLC Autocontroller DELIVER PARTS TO WORLD.
Details
Based on over 5000 reviews Description: 209-595-200-132: VM600 high-performance CPU module, 3.5 GHz/16 GB/256 GB, multi-protocol. Product condition: New Packing condition:Factory Packing 100% insured shipping: A guarantee for your purchases PLC Autocontroller DELIVER PARTS TO WORLD.
Details
Based on over 5000 reviews Description:209-595-200-232: VM600 series CPU module—no published specs. Product condition: New Packing condition:Factory Packing 100% insured shipping: A guarantee for your purchases PLC Autocontroller DELIVER PARTS TO WORLD.
Details
