Description: 200-595-100-032: VM600 entry-level CPU module, wide-temp design, undocumented comms.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | VIBRO-METER |
| Item number | VM600 CPUM 200-595-100-032 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

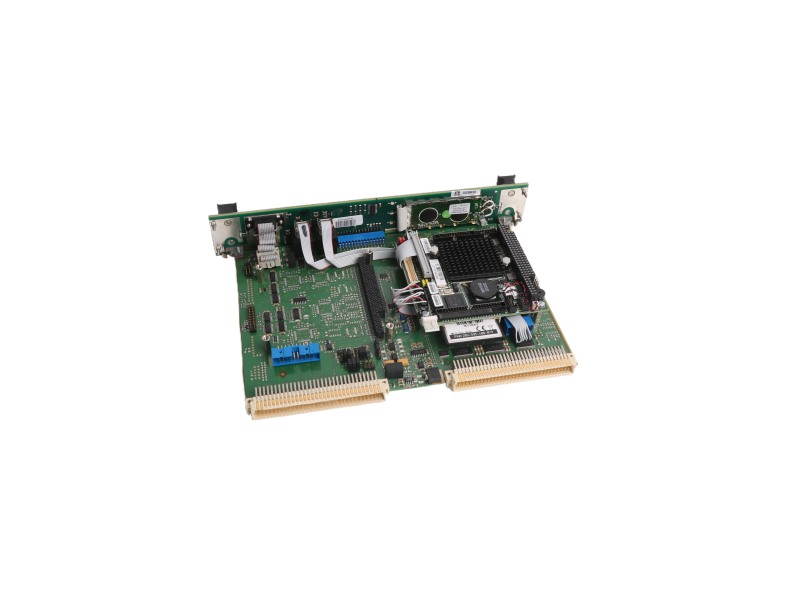

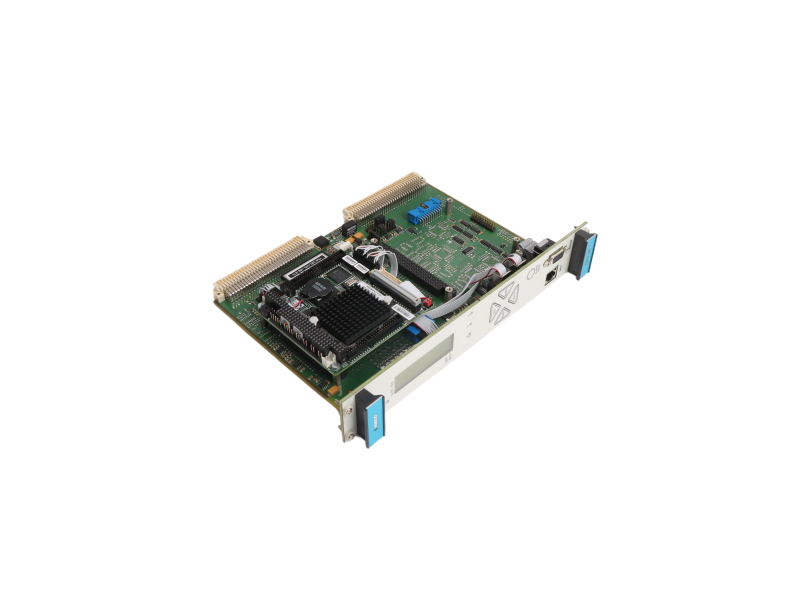

The VIBRO METER VM600 CPUM 200-595-100-032 is a high-performance main processor and communication module designed for the VM600 machinery protection and condition monitoring system.
Developed by Meggitt (Vibro-Meter), this module serves as the central control unit of the VM600 rack, managing data acquisition, configuration, system diagnostics, and communication with external supervisory systems such as DCS and PLC networks.
This model integrates advanced control logic and real-time data handling, ensuring reliable operation for critical rotating machinery in industries such as power generation, petrochemical, and metallurgy.
|
Function / Interface |
Value |
Note |
|
Processor |
Industrial PC/104-compliant CPU |
32-bit, fan-less |
|
Local display |
128 × 64 dot-matrix LCD + 4-key keypad |
Alarm reset & live values |
|
Ethernet |
2 × 10/100 Mb RJ45 |
Auto-MDIX, simultaneous server/client |
|
Serial |
3-port RS-232/422/485 software selectable |
Max 38.4 kBd |
|
Supported protocols |
Modbus-TCP, Modbus-RTU, PROFINET (option) |
XML register map published |
|
Rack slots |
Occupies 1 × 4 HP I/O slot |
Hot-pluggable |
|
Power |
5 V / 1.2 A from VM600 back-plane |
<6 W typical |
|
Operating temp |
-20 … +60 °C |
Storage -40 … +85 °C |
|
MTBF |
> 200 000 h @ 40 °C |
MIL-HDBK-217F |
Scan cycle: 1 ms per register (default), user selectable
Alarm latency: <10 ms from register bit to relay output
Data logger: 32 GB eMMC, circular buffer >30 days
Firmware update: Web-upload, rack remains powered
CE, UKCA, ATEX II 3 G Ex ec IIC T4 Gc (cabinet) ; 96 h salt-spray IEC 60068-2-11; 5 g random vibration 10-2000 Hz.
The CPUM module is responsible for coordinating the entire VM600 rack. It communicates directly with monitoring cards such as MPC4, AMC8, and IOC4T, collecting vibration and temperature data to ensure continuous machinery protection.
|
Supported Modules |
Communication Role |
|
MPC4 / IOC4T |
Machine Protection and Vibration Monitoring |
|
AMC8 |
Condition Monitoring and Data Acquisition |
|
CPUM / IOCN |
Central Processing and Communication Management |
