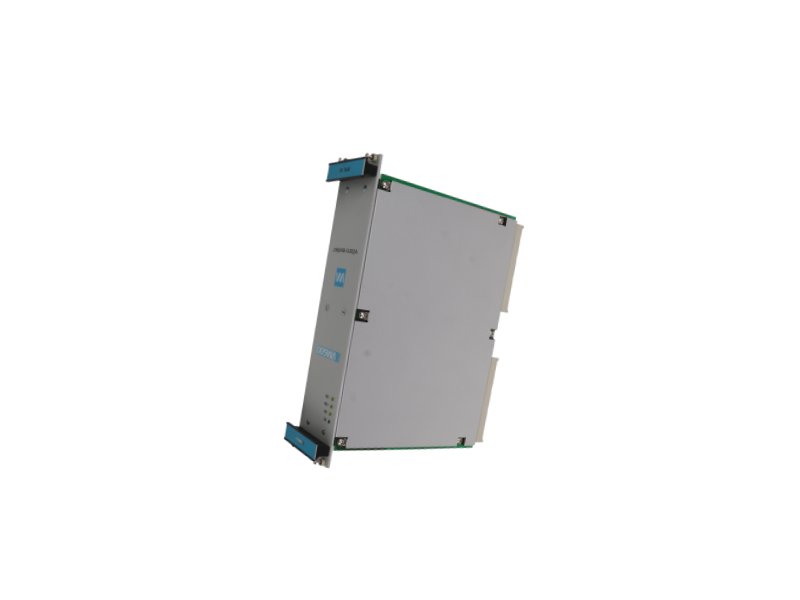

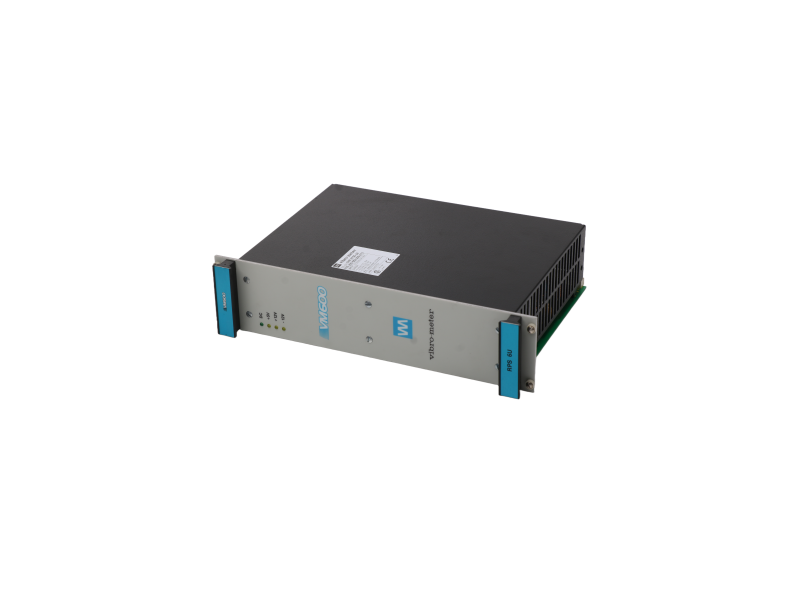

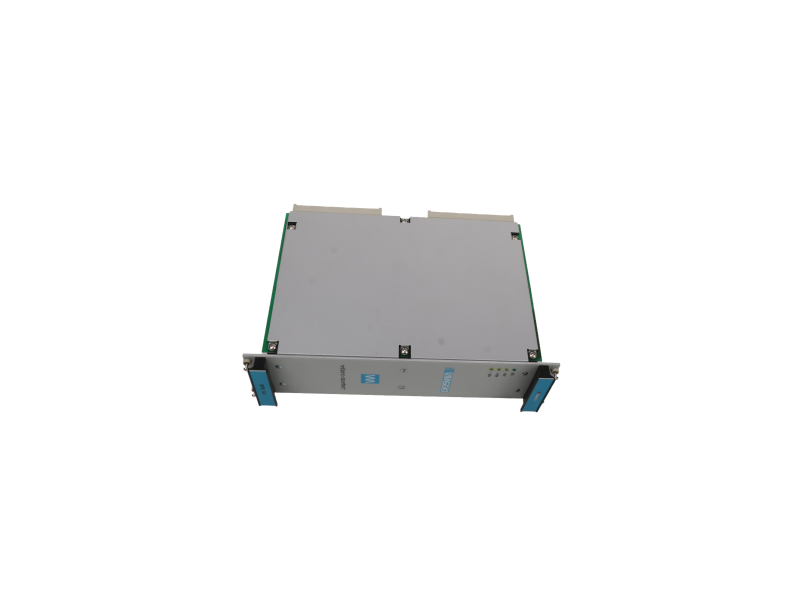

Description: SIM-275D-B0 200-582-600-013: VM600 series power supply module with redundancy and overvoltage/overcurrent protection for industrial rack systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | VIBRO-METER |
| Item number | SIM-275D-B0 200-582-600-013 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Q1: What role does SIM-275D-B0 200-582-600-013 play in a VM600 rack?
A1: It is the "power heart" of the chassis, supplying +24 V, ±12 V and +5 V buses with hot-swap redundancy—zero rack downtime even if one module fails.
Q2: What input-voltage options exist? What if only a battery bank is available on site?
A2: Order either DC or AC suffix: DC 18-36 V wide-range can be connected directly to a 24 V battery bus; AC 200-240 V works with mains or UPS, switching automatically without operator action.
Q3: Will the module "run out of steam" when the rack is fully loaded?
A3: Rated 150 W per module, efficiency >90 %. A typical fully-loaded VM600 consumes ≈110 W, leaving a 30 % margin.
If calculations exceed this, simply slide in a second module—it current-shares automatically with no external bus required.
Q4: How long can the housing resist salt-spray on an offshore platform?
A4: Aluminium enclosure uses powder-coat + anodising; passes 1000 h neutral salt-spray test.
PCBs are conformally coated—five years of continuous offshore operation with no red rust or track failures reported.
Q5: Does the power supply have built-in self-diagnosis?
A5: Yes. Front 3-colour LED bar plus relay dry-contact (Power-Good) can be wired to DCS/SCADA for remote monitoring.
Internal temperature, output current and share-error are all readable via the VM600 back-plane and web page.
Q6: Can I really pull it out live for maintenance?
A6: Yes. The back-plane uses "make-after-break" guide rails; as you withdraw, the parallel module takes over instantly.
System voltage dip <50 mV—CPU cards keep running and the process stays on-line.
Q7: Does the PLC Autocontroller offer international delivery?
A7: Yes, we partner with multiple international express delivery companies, including DHL, FedEx, TNT, and UPS, to provide fast global delivery, with an average delivery time of 3–6 business days.
Q8: What after-sales service is included?
A8: We offer a one-year warranty, including product replacement, technical support, and remote installation and commissioning guidance, ensuring peace of mind for our customers.
Q9: How do I place an order for the SIM-275D-B0?
A9: Customers can contact Sales Manager May at ab@mooreplc.com and provide the model, quantity, and delivery address. We will confirm a quote and delivery time within 24 hours.
