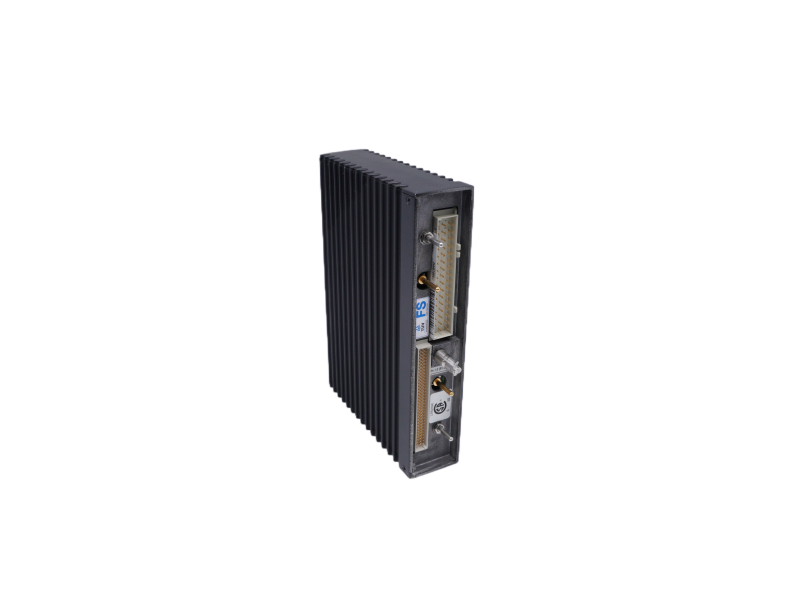

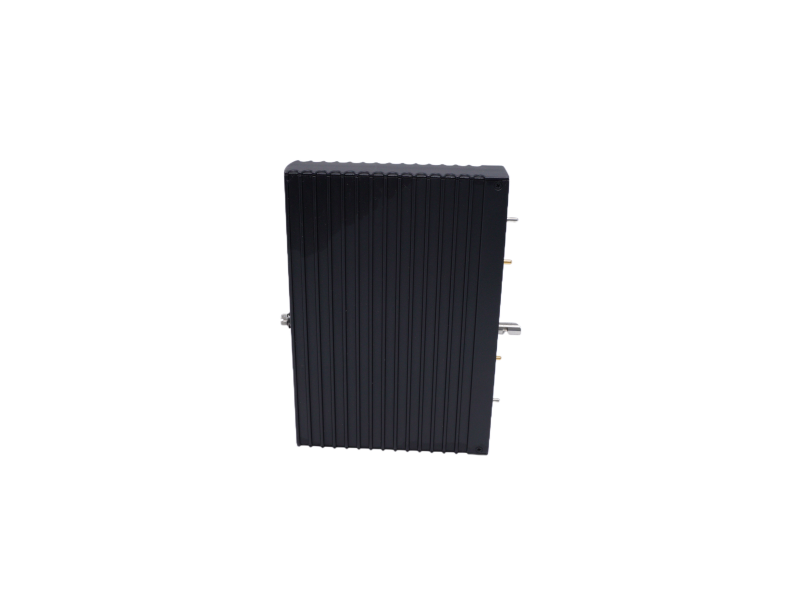

Description:TRICONEX MP3101: PowerPC-based main processor module certified to SIL3, executing control logic and system communications.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | TRICONEX |
| Item number | MP3101 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
MP3101 is the second-generation Main Processor for Tricon TMR systems. It occupies the left-most slot of any rack, executes 2oo3 voting, scans all I/O, time-stamps SOE events, manages communication and runs the user application.
Three MP3101 units operate in parallel; any single failure leaves the system SIL-3 capable.
1.Key specifications (@ 25 °C, 5 V backplane)
|
Item |
Value |
Remarks |
|
CPU |
PowerPC 7448 |
900 MHz per triad |
|
SDRAM |
512 MB |
battery-backed ≥ 72 h |
|
Flash |
128 MB |
firmware + application |
|
Scan time |
< 15 ms |
typical 1 K FBD |
|
SOE resolution |
1 ms |
100 000 rolling records |
|
Ports |
2×RS-485, 1×RS-232 |
expandable to Ethernet/UCN |
|
Protocols |
Modbus RTU/TCP, TSAA |
on-board |
|
Voting delay |
< 250 µs |
hardware comparator |
|
Temperature |
40…+70 °C |
horizontal forced-air |
|
Power |
5 V @ 2 A |
10 W typical |
|
Size |
194 × 110 × 50 mm |
single-slot width |
|
Hot-swap |
yes |
< 2 min, tool-free |
|
SIL / Cert |
SIL 3, IEC 61508 |
TÜV report shipped |
2.Front-panel LEDs at a glance
|
LED |
Color |
Meaning |
|
PASS |
green |
CPU self-test OK |
|
FAULT |
red |
CPU faulted |
|
ACTIVE |
green |
controlling triad |
|
STANDBY |
amber |
hot-spare |
|
MEMORY |
green/red |
battery & RAM OK/low |
|
COM |
green flash |
traffic active |
3.Snapshot applications
u Petrochemical: 62 000 I/O olefin ESD, 12 ms scan on triple MP3101
u Power: 9F gas-turbine BMS flame-out protection, 1 ms SOE pinpoints first-out trip
u LNG: triplicated pump discharge pressure, 2oo3 cut-off ≤ 40 ms
