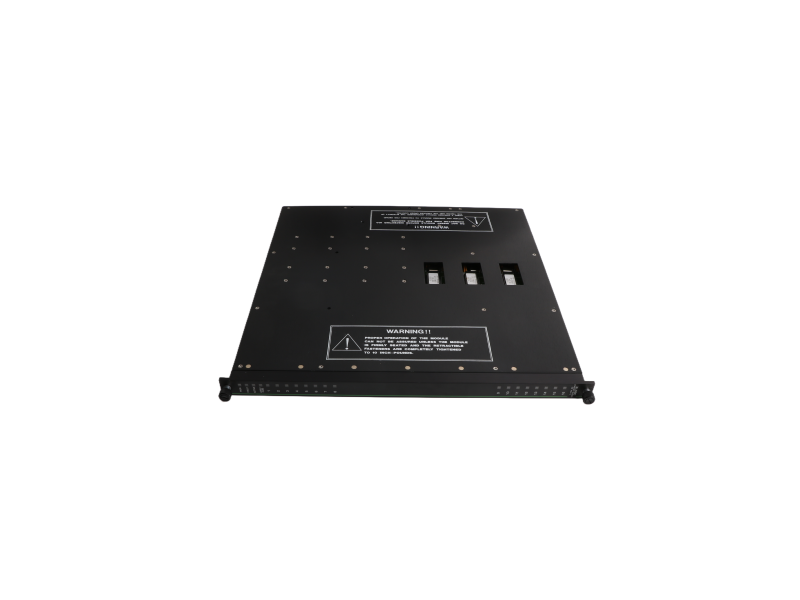

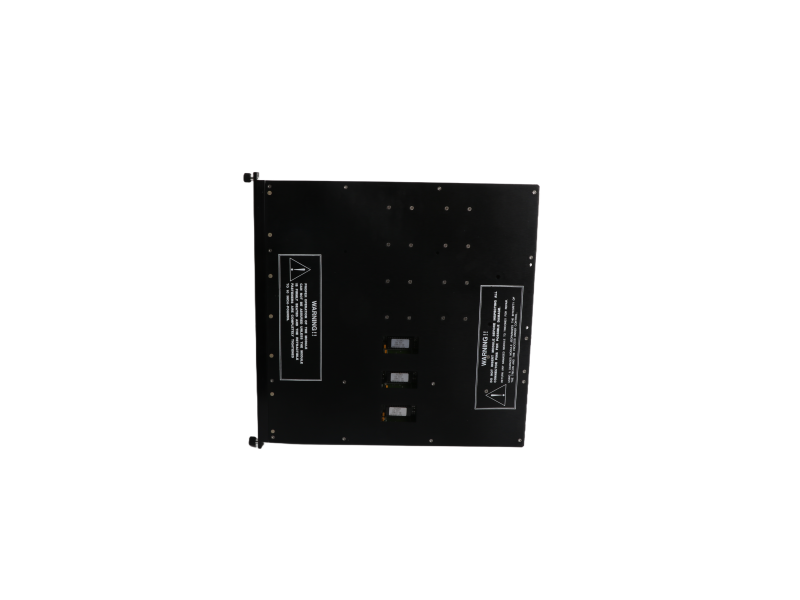

Description:TRICONEX 3601E is a 16-point, opto-isolated digital output module for high-integrity safety instrumented systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | TRICONEX |
| Item number | 3601E |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Why 3601E Matters
The TRICONEX 3601E is a TÜV-certified, SIL-3, 16-point digital output module built for Tricon v10 systems. Each channel sinks 24 VDC @ 2 A, is short-circuit protected, and is galvanically isolated at 1 500 V.
Mean-time-between-failure (MTBF) is rated 312 years at 25 °C, making it the work-horse for ESD, F&G and HIPPS cabinets worldwide.
A single on-board 32-bit CRC checks every output transition; fault data is auto-reported to the Tricon bus in <5 ms. If you need a module that never takes a day off, 3601E is it.
Quick-Spec Table
|
Parameter |
Value |
|
Part Number |
3601E (Enhanced) |
|
Points |
16, common negative |
|
Load voltage |
24 VDC (18–32 V) |
|
Max current / pt |
2 A ( resistive ) |
|
Surge protection |
1 500 W TVS, 8/20 µs |
|
Isolation ch-ch |
500 V rms |
|
Isolation field-logic |
1 500 V rms |
|
On-state drop |
0.3 V @ 2 A |
|
Off-state leakage |
<0.5 mA |
|
Diagnostic |
Open-load, short-to-supply, over-temp |
|
MTBF (MIL-HDBK-217F) |
312 yrs @ 25 °C |
|
Safety cert |
IEC 61508 SIL 3, TÜV Rhineland |
Drop-in Replacement & Compatibility
3601E is a direct plug-and-play upgrade for legacy 3601A/B/C modules; no re-wiring, no new baseplates. Firmware auto-detects the enhanced ID code and enables the extra diagnostics.
Hot-Selling Triconex
|
Rank |
Model |
Description |
|
1 |
3604E |
64-point DO, 24 VDC, SIL-3 |
|
2 |
3503E |
32-point DI, 24 VDC, SIL-3 |
|
3 |
3624 |
6-point AO, 4–20 mA, SIL-3 |
|
4 |
3664 |
8-point AI, 4–20 mA, SIL-3 |
|
5 |
3601E |
16-point DO, 24 VDC, SIL-3 |
|
6 |
3008 |
Main processor, 2 MB |
|
7 |
4329 |
Network comm module, Dual Ethernet |
|
8 |
3700A |
Power module, 120 VAC/DC, 175 W |
|
9 |
3721 |
Power module, 24 VDC, 175 W |
|
10 |
9563-810 |
RXM rack, 21 slots |
