Product Overview

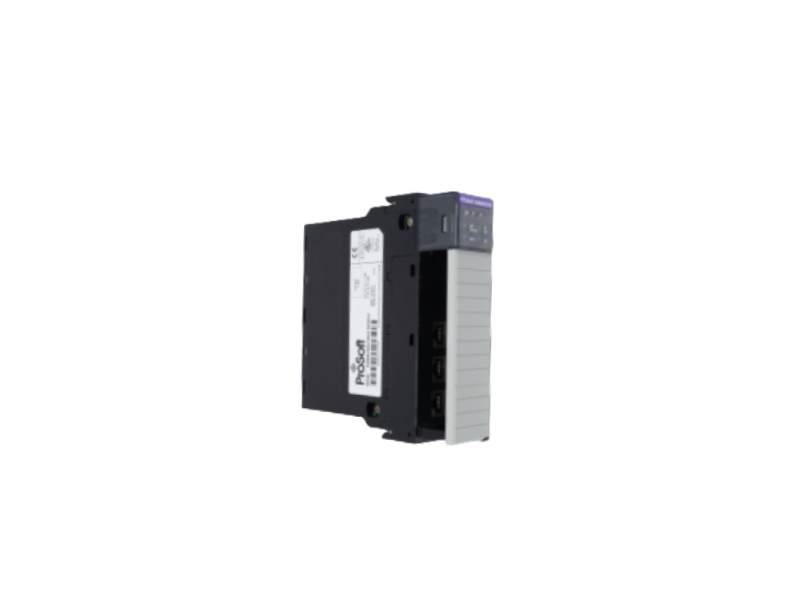

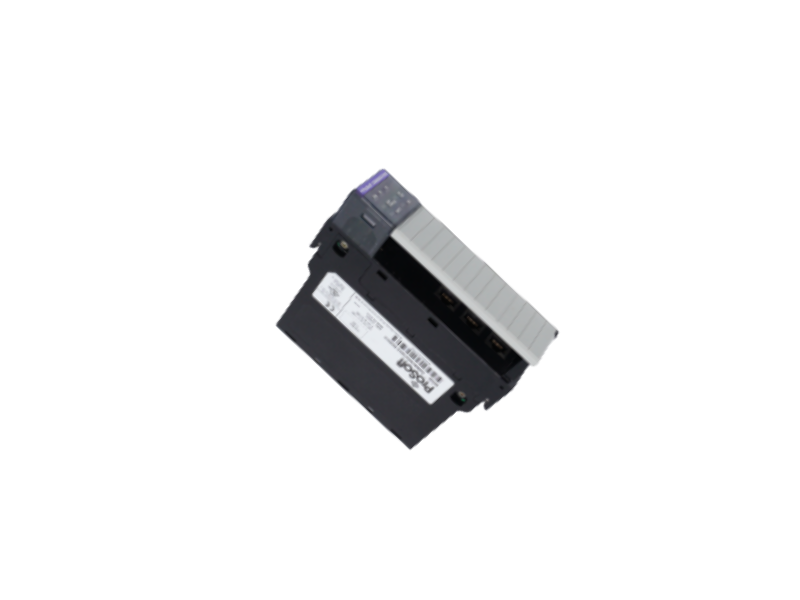

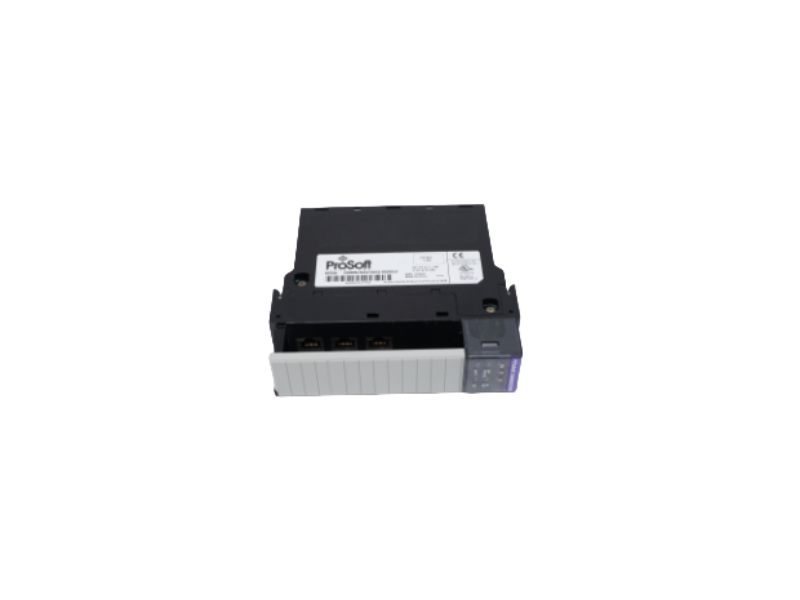

The PROSOFT MVI56-DFCMR is a DF1 communication interface module (Reduced Data Block) from ProSoft Technology for the Allen-Bradley ControlLogix platform. This module supports two independently configured serial DF1 ports, each capable of functioning as either a Master or Slave. It enables reliable bidirectional data communication between ControlLogix controllers and various DF1-compatible devices, such as Rockwell PLCs, SCADA hosts, and third-party DF1 devices. The MVI56-DFCMR features a compact design, is compatible with single-slot ControlLogix backplanes, and can be used as a remote rack network communication node, making it an ideal choice for expanding DF1 protocol support within a ControlLogix system.

Technical parameters

Product Model: MVI56-DFCMR

Brand: ProSoft Technology

Module Type: DF1 Communication Interface Module (Reduced Data Block)

Applicable Platform: Allen-Bradley ControlLogix

Communication Protocol: DF1 (Half/Full Duplex)

Serial Ports: 2 × DF1 compatible serial ports

Communication Mode: Master / Slave (selectable)

Data Transmission Mechanism: Reduced Data Block

Power Supply: ControlLogix backplane powered

Slot Occupancy: Single-slot module

Configuration Port: Supports data exchange configuration via Ladder Logic

Product advantages

Dual DF1 Serial Ports for Flexible Configuration: Two serial ports supporting the DF1 protocol can be configured as either Master or Slave modes, accommodating various serial network architectures.

High Compatibility: Compatible with all Allen-Bradley PLCs, SCADA systems, motion control devices, etc., supporting the DF1 protocol, and expands existing system functionality.

Reduced Data Block Architecture: Optimizes data exchange with ControlLogix by reducing data blocks, improving communication efficiency and manageability.

Master/Slave Mode Support: Each port can operate as either a master or slave, supporting complex master-slave communication scenarios.

Industrial-Grade Design: Suitable for harsh industrial environments, providing stable and long-term communication support.
