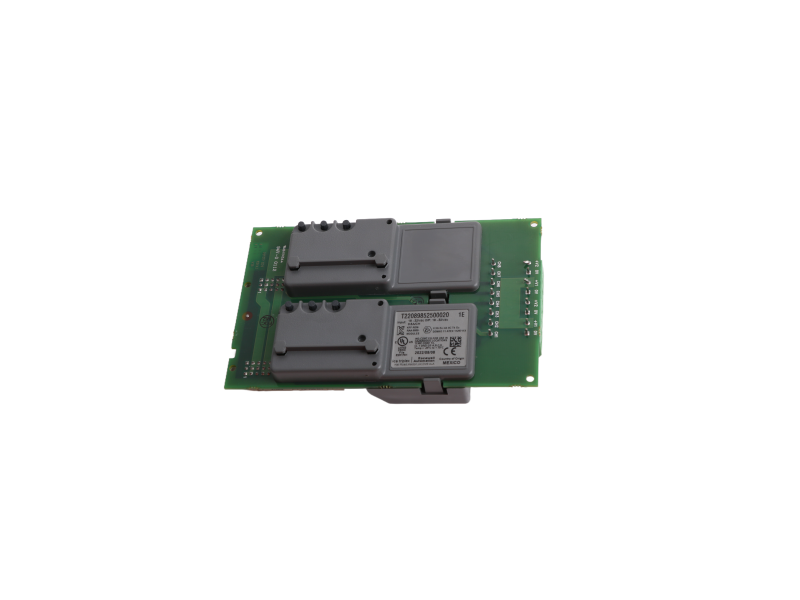

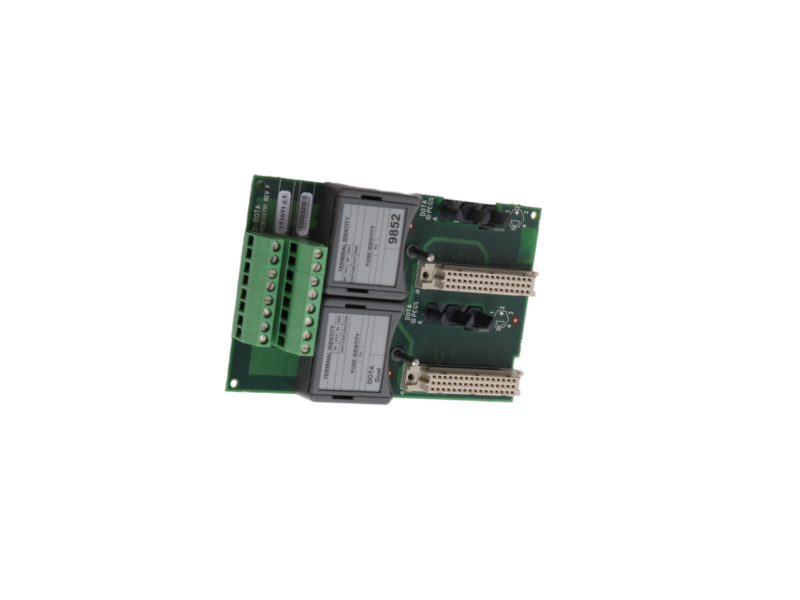

Description:ICS Triplex T9852 – A digital output termination assembly providing robust signal termination for critical control loops.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ICS triplex |
| Item number | T9852 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
“Dual 8-channel” slim terminal – built for space-tight, sectional-powered SIL systems
u Quick Profile
1. Model: T9852
2. Role: 8 ch × 2 independent segments digital-output termination block
3. Edge: two field supplies can be 24 V or 48 V, fuses replaceable on-line without unwiring; 132 × 84 mm footprint saves 30 % cabinet depth versus T9851
4. Use: sectional ESD in chemical plants, dual-source isolation on offshore platforms, dual-path conveyor controls in automated warehouses – anywhere “zone redundancy” is preferred over point redundancy
u Key Data (25 °C typical)
|
Item |
Value |
|
Channels |
8 × 2 (16 pts, dual common) |
|
Rated voltage |
24 Vdc (18-32 V) or 48 Vdc (36-56 V) |
|
Current per ch |
2 A max, electronic limit 2.5 A |
|
Protection |
2 A pluggable fuse/ch, reverse-polarity, short-circuit & over-temp |
|
Isolation |
field-system 500 Vdc; seg A-seg B 300 Vdc |
|
Indication |
bi-colour RED/GREEN LED per ch (ON, FAULT, open-load) |
|
Response time |
< 1 ms (resistive load) |
|
Weight |
260 g |
|
Dimensions |
132 × 84 × 28 mm |
|
Certifications |
SIL 3 / IEC 61508, ATEX nA, CE, RoHS |
u T9852 vs T9851 – spot the difference
|
Dimension |
T9852 |
T9851 |
|
Channel style |
8×2 dual-common (16 pts) |
32 pts single-common |
|
Current/pt |
2 A |
0.5 A |
|
Field supply |
two segments, 24 V or 48 V |
one segment 24 V |
|
Fuse access |
front replaceable 2 A |
internal 1 A |
|
Board size |
132 × 84 mm |
210 × 98 mm |
|
Best fit |
zoned control, dual-source |
high-density central DO |
u Hot-selling ICS TRIPLEX models (stocked)
1. T8403C Trusted TMR Digital Input – high-integrity safety loops
2. T8461C 40-ch DO module (TMR) – pair with T9852 for “dense+zone” mix
3. T9481 8-ch Analogue Output – companion for continuous valves
4. T8311 Processor (Trusted) – 3-2-0 redundancy core
5. T9802 16-ch DI terminal (dual) – same width, clean row layout
6. T9110 Processor Base – starter backplane for new nodes
7. T9300-02 2 m expansion cable – flexible I/O positioning
