Description:MU-TPIX12 51304084-100 — Field terminal assembly for industrial signal connections.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | HONEYWELL |
| Item number | MU-TPIX12 51304084-100 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year ABB spare part express

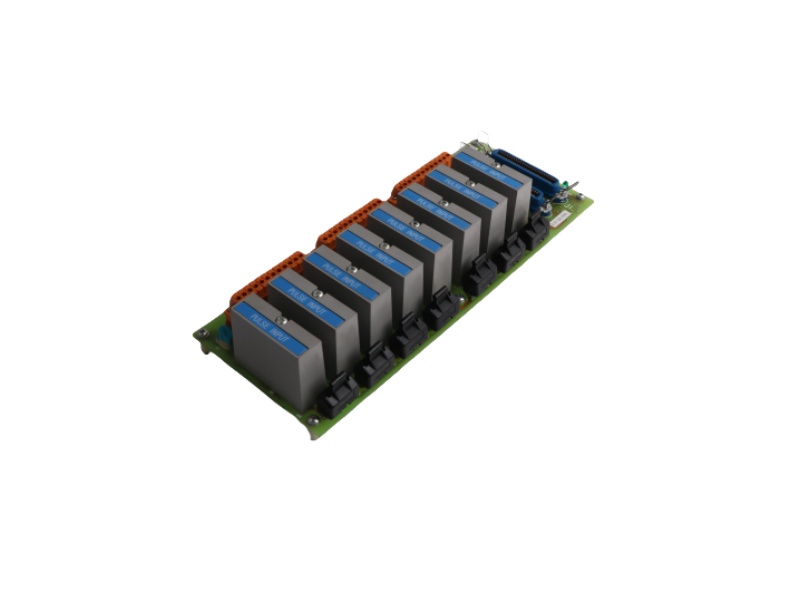

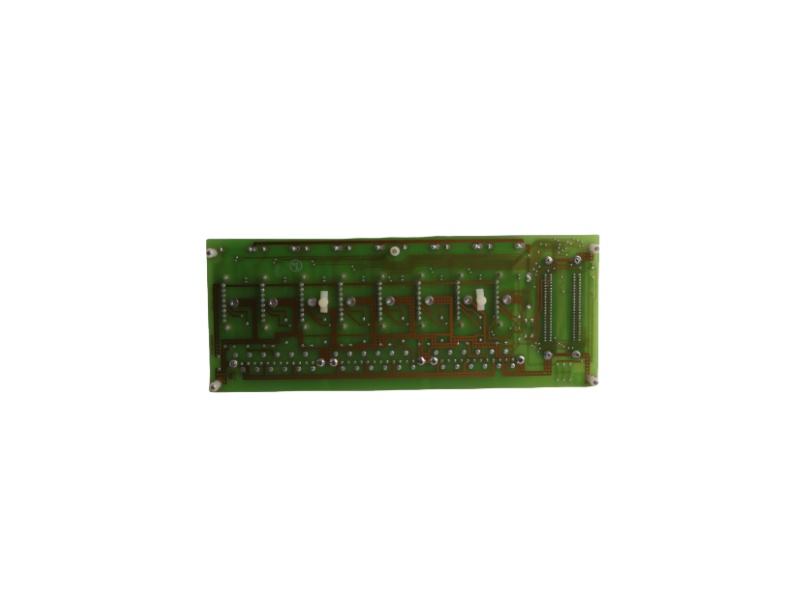

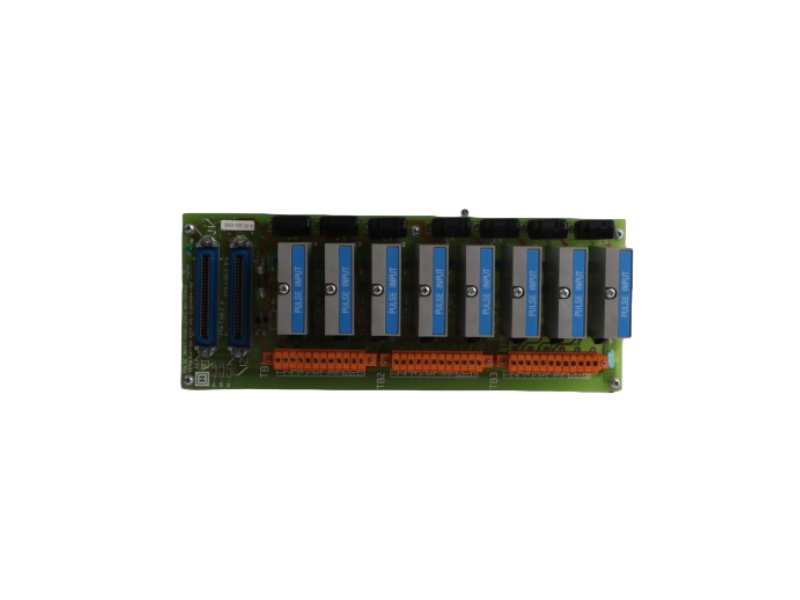

MU-TPIX12 51304084-100 | Field Terminal Assembly
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
About MU-TPIX12 51304084-100
Model: MU-TPIX12 (51304084-100) — Honeywell's "PulseInputFTA (Field Terminal Assembly)" series module.
The documentation indicates that this module is used to process pulse input signals (rectangular waves or sine waves),
and has 8 input channels for converting field pulse signals and transmitting them to the control system.
Key Specifications
|
Electrical |
Value |
|
Model Name: |
MU-TPIX12 51304084-100 |
|
Manufacturer: |
Honeywell |
|
Module Type: |
Field Terminal Assembly |
|
Number of input channels: |
8 channels (8 pulse input points) |
|
Supported signal types: |
Square wave or sine wave input |
|
Input frequency range: |
1Hz to 20kHz (square wave) / 1Hz to 20kHz (sine wave, all channels with the same amplitude) |
|
Input voltage level: Low: |
-0.5V to +1.9V High: +3.5V to +24V (1.9V-3.5V will cause hysteresis to prevent state switching) |
|
Input impedance: |
≥10kΩ minimum |
Module features and advantages
|
Designed for Pulse Input: Handles high-frequency pulse input (up to 20kHz), suitable for high-speed sensors, counters, and flow pulse signal acquisition. |
|
Multi-Channel Configuration: 8-channel input helps reduce field wiring complexity and improve system integration efficiency. |
|
Standardized Modular Structure: As a Field Termination Assembly (FTA), it facilitates quick replacement or expansion within existing Honeywell control systems. |
|
Brand and Compatibility Advantages: As a genuine Honeywell module, it offers excellent compatibility with corresponding control systems, reducing system integration risks. |
Application Areas
n This module is suitable for various industrial automation scenarios, especially in situations requiring the acquisition and integration of pulse signals into DCS/PLC systems. Examples include:
n Signal input for pulse output devices such as flow meters, energy meters, and tachometers in chemical and petrochemical plants.
n Acquisition and monitoring of pulse signals in power, water treatment, and combustion/gas monitoring systems.
n Acquisition and control of pulse signals from high-speed counting, packaging, and printing equipment in manufacturing automation lines.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
