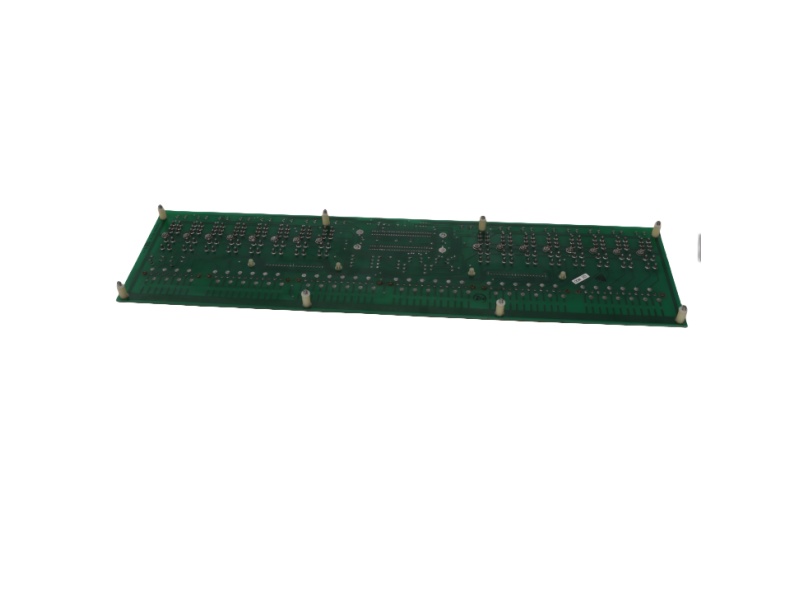

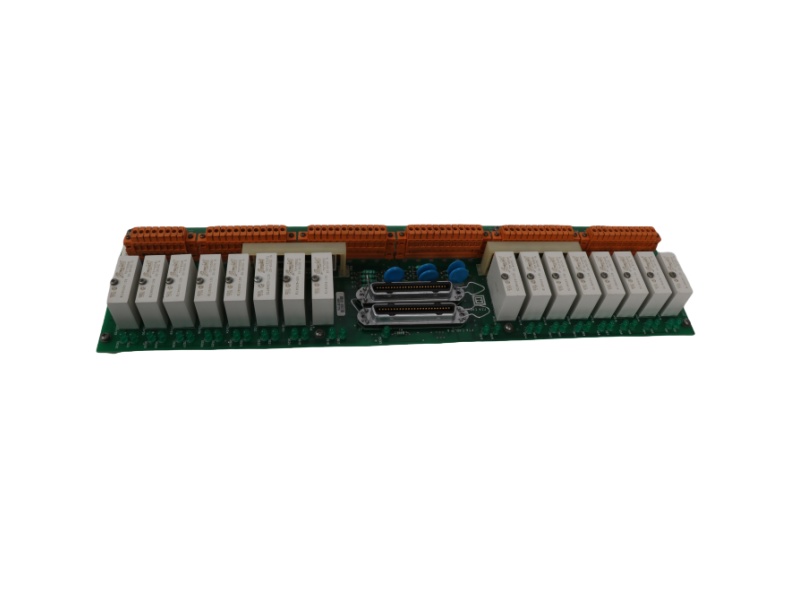

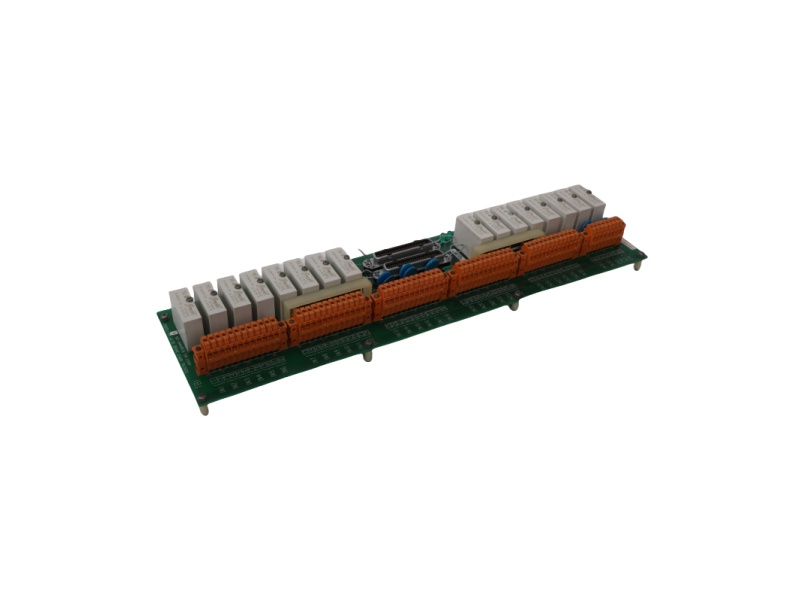

HONEYWELL MU-TDID12 51304441-125

The Honeywell MU-T series of digital input modules (Field Termination Assemblies) are designed for I/O racks

that organize, isolate, and transmit signals from field devices (such as digital signals, proximity switches, and relay contacts)

to the control system. These modules support 24VDC signal input, feature a 32-channel design, and employ opto-isolation,

making them suitable for high-reliability digital input scenarios in industrial automation systems.

Product Advantages

v High channel density design: 32 digital input channels enable processing of a large number of field signals within a single module, saving rack space.

v Strong isolation protection: Field-to-logic/backplane isolation voltage up to 1500V enhances interference immunity and system safety.

v Dedicated termination assembly structure: As a field-terminal assembly (FTA), it facilitates cabling and maintenance, suitable for industrial field environments.

v Reliable industrial-grade specifications: Supports 24VDC input, fast response, compact structure, and industrial ambient temperature range, adaptable to various automation scenarios.

Technical Specifications

Model: MU-TDID12

Order Number: 51304441-125

Module Type: Digital Input Field Module

Number of Input Channels: 32 channels

Rated Signal Type: 24VDC Digital Input

Isolation Voltage: 1500VACrms or +1500VDC (Field-to-Backplane/Logic Isolation)

Input Response Time: Approx. 2.0ms

Operating Temperature: Approx. -20°C … +60°C

Application Areas

Manufacturing Automation Systems: Used to collect multiple digital status signals (such as equipment on/off, sensor signals, fault indications) within a factory and input them into the control system.

Process Industries (e.g., petrochemical, chemical, power): Input of field switch quantities, relay feedback, or safety interlock signals into the DCS system.

Infrastructure and Utilities: Large-scale digital signal acquisition in applications such as water treatment, traffic control, and building automation.

System Expansion and Retrofitting: Can serve as a reliable replacement or supplementary module when the digital input channels of the original control system are expanded or updated.
