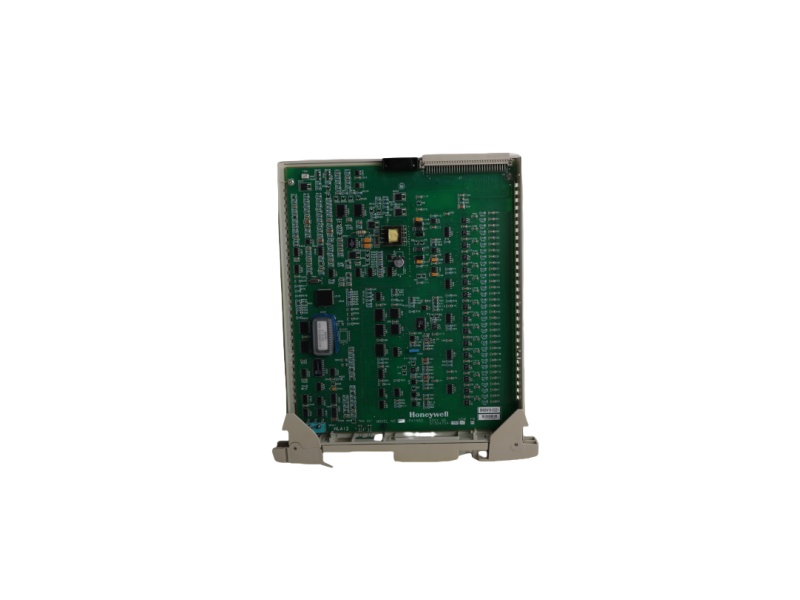

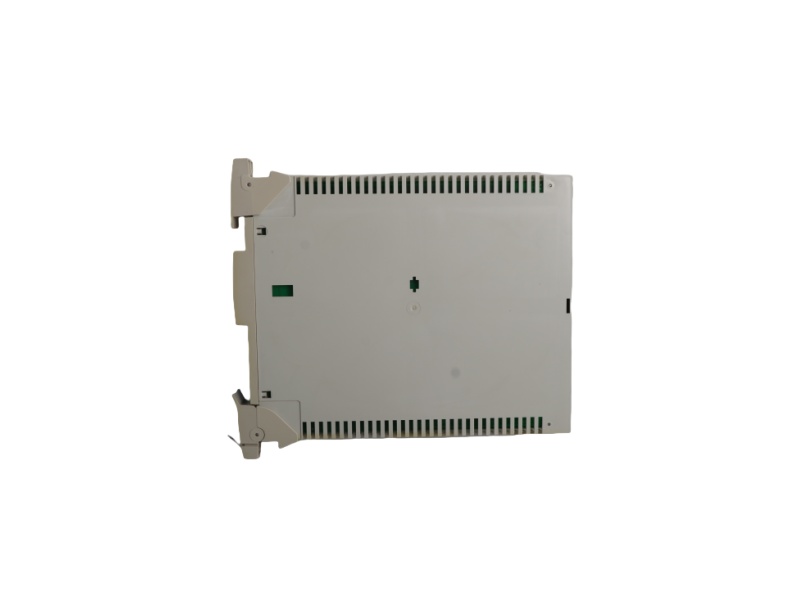

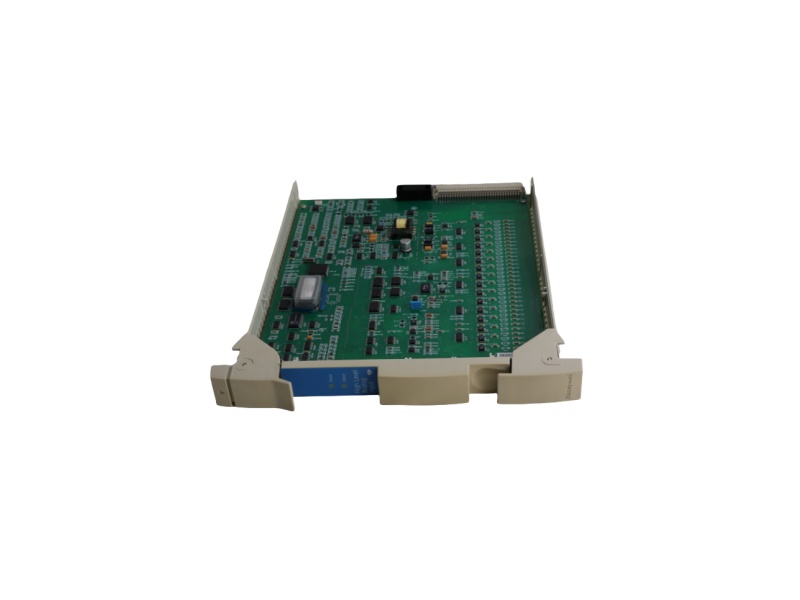

Description:MC-PAIH03 51304754-150 — high-level analog input processor module for accurate voltage and current signal acquisition in Honeywell process control systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | HONEYWELL |
| Item number | MC-PAIH03 51304754-150 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
MC-PAIH03 51304754-150 | high-level analog input processor module
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview
MC-PAIH03 51304754-150 — A high-level analog input processor module with 16 differential channels,
designed for high-level analog signal acquisition in Honeywell control systems. This module belongs to Honeywell's "
High Level Analog Input Processor (HLAI2 IOP)" series and is used for centralized processing of high-level analog inputs.
It features 16 high-level analog input channels (differential input configuration).
Core Specifications
|
Electrical |
Value |
|
Module Model: |
MC-PAIH03 51304754-150 |
|
Module Type: |
high-level analog input processor module |
|
Number of Input Channels: |
16 channels (differential input) |
|
Input Type: Voltage: |
0-5 V, 1-5 V, 0.4-2 V; Current: 4-20 mA (through 250 Ω) |
|
Common-Mode Rejection Ratio: |
70 dB (500 Ω source imbalance, DC-60 Hz) |
|
Scan Rate: |
Approximately 4 scans/second per channel, total sampling window approximately 250 ms |
|
Hardware Accuracy: |
±0.075% FS @ 23.5 °C; ±0.15% FS @ 0-50 °C |
Product Advantages
Ø High Channel Density: 16 channels of differential high-level analog inputs are integrated into a single module, suitable for systems with a large number of analog input points.
Ø Supports Multiple Signal Types: Supports both common voltages (0-5 V, etc.) and 4-20 mA inputs, flexibly adapting to field devices.
Ø Excellent Interference Immunity: 70 dB common-mode rejection and 60 dB channel-to-channel crosstalk ratio enhance signal stability.
Ø Compatible with Honeywell System Ecosystem: As an IOP in the HLAI2 series, it is specifically designed for UCN/LCN control networks, minimizing selection risk.
Ø Easy Maintenance and Standardization: Modular structure and standard specifications facilitate easier field replacement and reduce system downtime.
Ø Wide Applicability: Supports multiple signal inputs, differential modes, and fast scan rates, suitable for process control system requirements.
Contact us
Sales Manager May – PLC Autocontroller (20 years of experience in supplying superior industrial automation parts)
E-mail: ab@mooreplc.com | Phone: +86-18106909650 (WhatsApp) | WeChat: dcsfcs
PLC Autocontrolle
Ø All products are brand new and original,with a 12-month warranty.
Ø Authenticity Guarantee: All products are genuine, ensuring reliable quality.
Ø Technical Support: Module datasheets, wiring diagrams, and commissioning instructions are provided.
Ø Spare Parts Inventory Support: A long-term spare parts inventory ensures continuous equipment operation.
