Description:Honeywell FC-RUSIO-3224 is a reliable, safe I/O module for critical control systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | HONEYWELL |
| Item number | FC-RUSIO-3224 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years in Safety-System Expertise

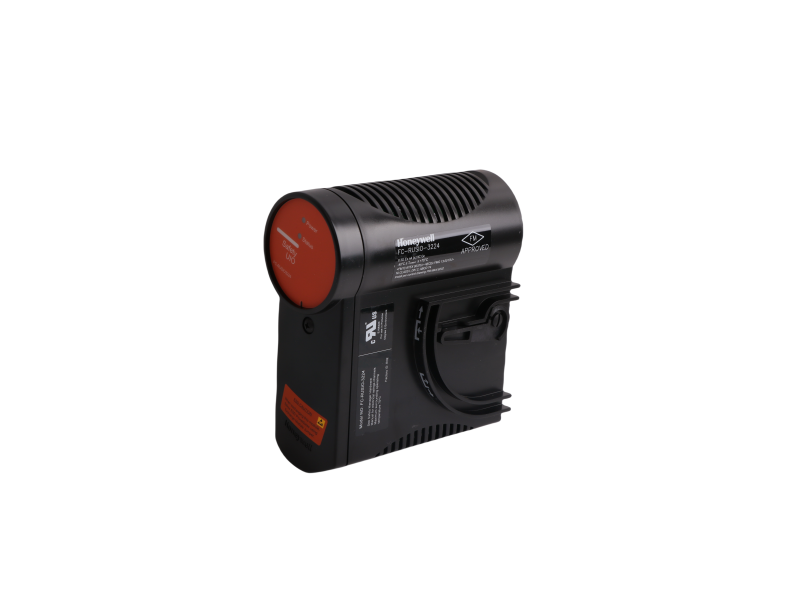

Technical Note: Honeywell FC-RUSIO-3224 32-Channel Universal Safe I/O Module
Purpose & System Fit
The FC-RUSIO-3224 is a remote, SIL-3 universal I/O module for Honeywell Safety Manager™ (SM) systems.
A single module provides 32 software-configurable safe channels, eliminating the need for separate DI, DO, AI, and AO cards and cutting cabinet space by up to 50 %.
Ordering Information
• Part Number: FC-RUSIO-3224
• Redundant Pair: order two modules + IOTA-R24 (redundant I/O termination)
• Single Module Kit: FC-RUSIO-3224 + IOTA-NR24 (non-redundant I/O termination)
Physical Data
• Dimensions: 145 × 165.1 × 72.4 mm (H × W × D)
• Weight: 0.66 kg
• Mounting: DIN-rail or 19ʺ sub-rail with IOTA termination assemblies
Key Specifications
• Channels: 32 universal, individually isolated
• Configurable Modes (per channel):
– Digital Input (with or without line-monitoring)
– Digital Output (0.5 A, short-circuit protected)
– Analog Input 0–20 mA / 4–20 mA (loop-powered)
– Analog Output 0–20 mA / 4–20 mA (open-loop detection)
• Combined Load: max. 9 A per module
• Supply: 24 V dc –15 % … +30 % (max. 300 mA module only)
• Isolation: 2.5 kV impulse, 250 V working
• Diagnostics: open-wire, short-circuit, over-range, module health
• Hot-swap: supported in redundant pairs
• Temperature: –40 °C … +70 °C operational; –40 °C … +85 °C storage
• Approvals: CE, UL, TÜV (pending) for IEC 61508/61511 SIL 3
Typical Application
Safety shutdown of ESD valves, burner management, fire-gas systems, and process skids where every channel must be SIL-3 and hot-replaceable without spurious trips.
More Honeywell available
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
|
FC-TSAO-0220M |
DC-TFB412 51307618-176 |
8C-PAOHA1 51454469-275 |
MC-PSIM11 51304362-350 |
|
FC-SAO-022M |
DC-TFB402 51307616-176 |
8C-PAOH51 51454355-175 |
MC-PRHM01 51404109-175 |
|
FC-SAI-1620 |
DC-TCF901 51307593-176 |
8C-PAINA1 51454470-175 |
MC-PLAM02 51304362-150 |
|
FC-RUSIO-3224 |
DC-TAIX01 51307597-176 |
8C-PAIN01 51454356-175 |
MC-PDOY22 80363975-150 |
|
FC-QPP-0002 V2.0 |
DC-TAIL51 51307601-176 |
8C-PAIN01 51454356-175 |
MC-PDIY22 80363972-150 |
|
FC-PSU-240516 V1.1 |
CIS-CPU 82114833-002 |
8C-PAIMA1 51454473-175 |
MC-PAOX03 51309152-175 |
|
FC-PSU-240516 V1.0 |
CC-TDOB11 51308373-175 |
8C-PAIHA1 51454470-275 |
MC-PAIH03 51304754-150 |
|
FC-PDB-0824 |
CC-TDIL11 51308388-175 |
8C-PAIH52 51307070-175 |
MC-PAIH03 51304754-150 |
|
FC-IOCHAS-0001R |
CC-TDIL01 51308386-175 |
8C-PAIH51 51454352-175 |
MC-IOLX02 51304419-150 |
|
FC-IO-0001 V1.1 |
CC-TCF901 51308301-175 |
8C-IP0101 51454362-175 |
MC-IOLX02 51304419-150 |
Ordering & Stock
PLC Autocontroller keeps the FC-RUSIO-3224 in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
