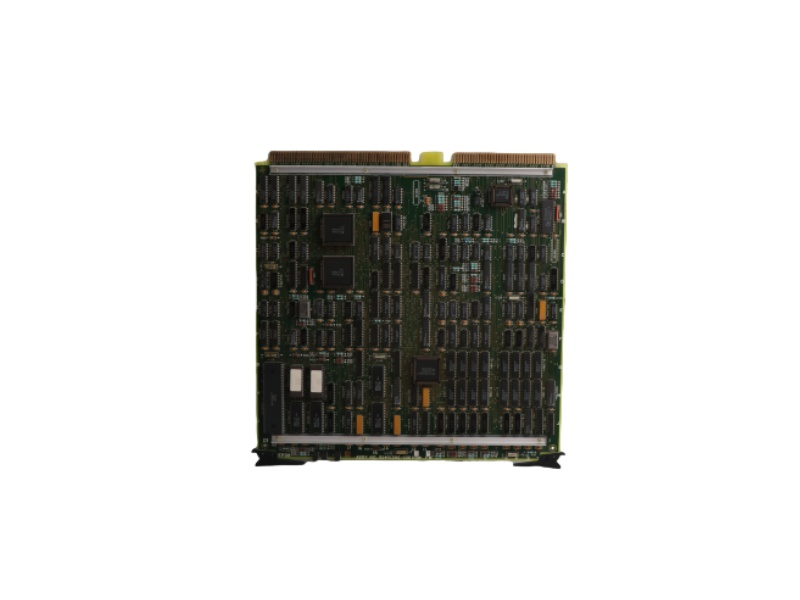

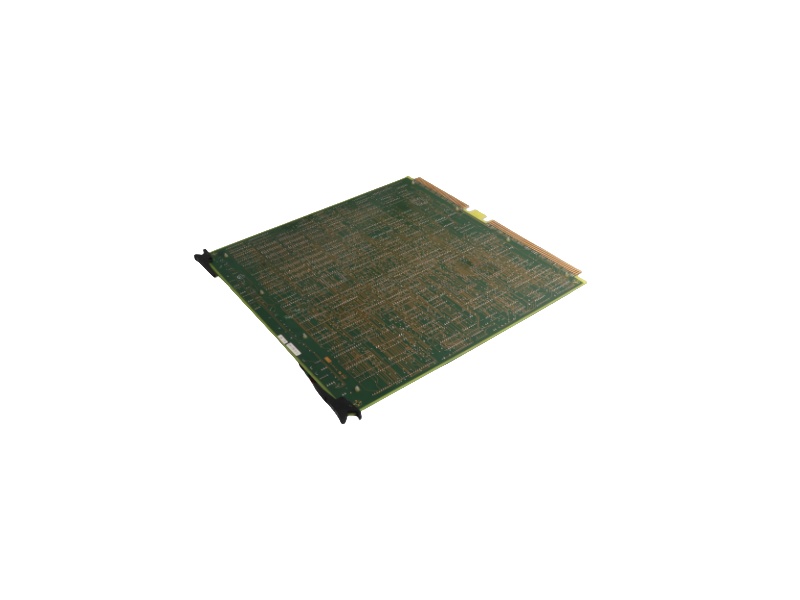

HONEYWELL 51401286-100 Enhanced Peripheral Display

PLC Autocontroller | Spare Parts Speed 20 Years

Sales Manager May | Email: ab@mooreplc.com | Tel: +86-18106909650 (WhatsApp) | WeChat: dcsfcs

u Product Overview

Model: 51401286-100

Type: Enhanced Peripheral Display Generator (EPDG) Card/Interface Board (PC Board)

System Compatibility: Primarily used in the Honeywell TDC3000 system as a Universal Station node, providing graphical/interface control for displays, keyboards, and printers.

Origin: USA

Spec-Snapshot Table

Key Features and Value Highlights

Graphics Capability

As an EPDG card (Enhanced Peripheral Display Generator), the 51401286-100 provides graphics output capabilities for Universal Station nodes.

It can manage communication with SCSI storage (e.g., Bernoulli disks), keyboards, mice, and printers, enriching the Human User Interface (HMI).

Hot-Swap/Modular Maintenance

Although a core interface board (PC Board), it is designed for field-replaceability, allowing for spare parts replacement when maintaining older systems (such as the TDC 3000).

Reliability and Safety

Using a 94V-0 compliant (flame-retardant) PCB board enhances the safety of electronic components.

Manufacturing Quality Meets Honeywell's High Standards (Original or Certified) — Genuine/Reliable Spare Parts Available from Multiple Suppliers

Application Scenarios

TDC3000 Control System: Used in the Universal Station node of the classic TDC 3000 system, providing a graphical interface and peripheral device (keyboard/printer) support.

Legacy/Ancient System Maintenance: This module is a critical spare part for control systems that are still in operation but have been discontinued by the manufacturer.

System Upgrade/Replacement Strategy: Replacing the EPDG card can restore or improve user interface functionality without completely replacing the control system.

Spare Parts Inventory Management: It is recommended that control system manufacturers and maintenance teams keep this card as a critical spare part to address potential future failures.
