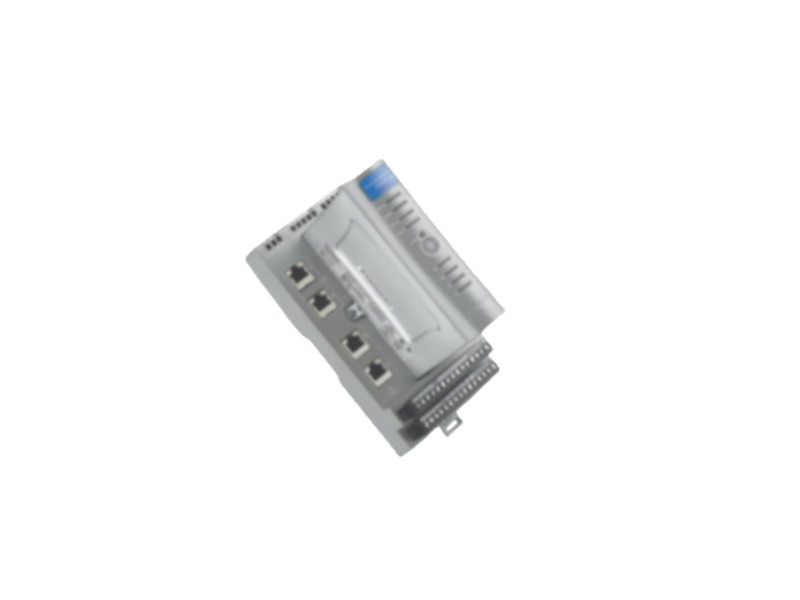

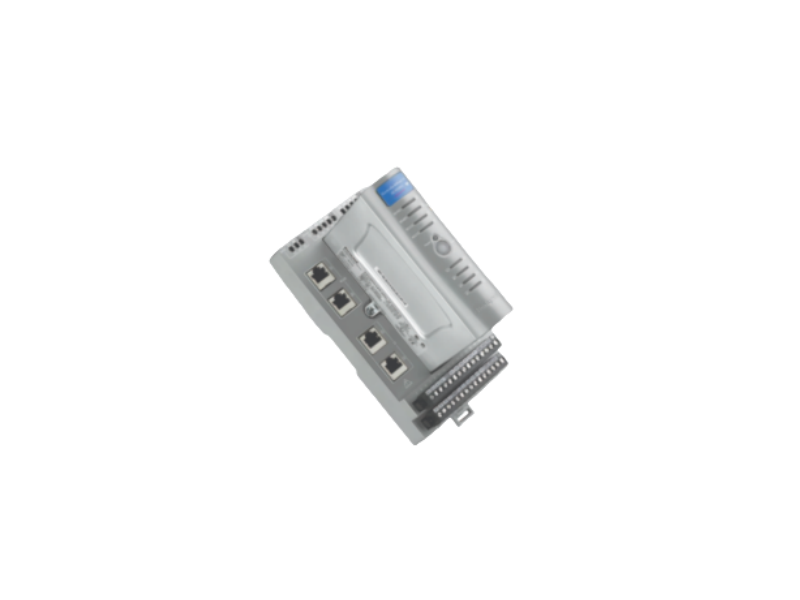

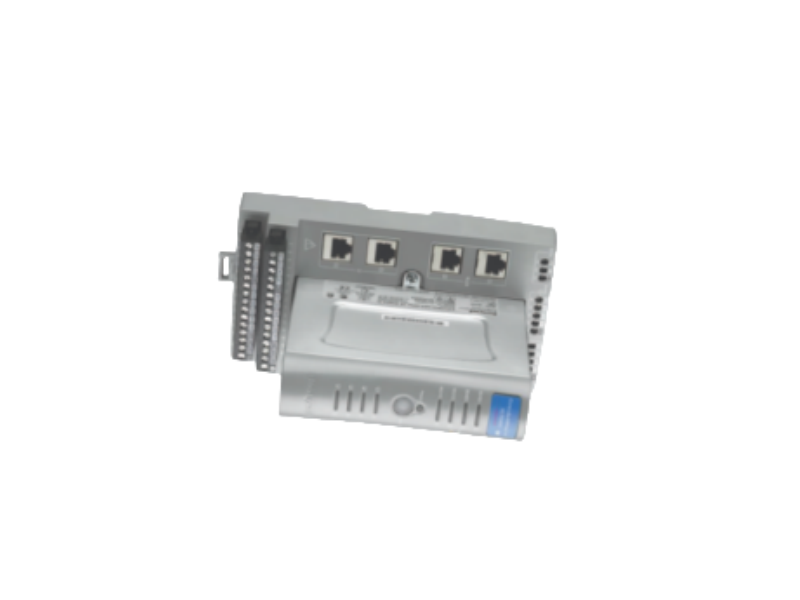

Description:SC-UMIX01 — mixed I/O module for flexible analog and digital signal acquisition and control in Honeywell distributed automation systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | HONEYWELL |
| Item number | SC-UMIX01 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
[Product Snapshot]
Product Overview
Brand/Model: Honeywell SC-UMIX01 (Part numbers such as 51307550-175/51307547-275, etc.)
Product Type: Mixed I/O module (Mixed input/output module)/Distributed I/O module
Main application: Integrating analog and digital signals (AI, AO, DI, DO) in the same module, it serves as an I/O expansion unit for remote/distributed control systems (such as Honeywell control platforms), used to connect sensors, actuators, and field devices to achieve data acquisition and control.
Applicable scenarios: Process control systems, SCADA/RTU systems, remote monitoring, power/petrochemical/water treatment/public utilities/industrial plant automation/distributed I/O architecture projects.
Core functional highlights: 28 configurable channels (analog + digital), supporting analog input (0-10VDC or 4-20mA), digital input (24VDC), and digital/analog output; Modular and compact design; Supports standard 24VDC power supply; Adapt to industrial environments; Supports seamless integration with Honeywell's "ControlEdge RTU/Distributed I/O Architecture".
[Key Service Promise]
Ø Model/Part Number SC-UMIX01 (e.g. 51307550-175/51307547-275)
Ø Product Type Mixed I/O Module (Mixed I/O Module)
Ø I/O channel count: 28 channels (configurable as analog or digital I/O)
Ø Analog Input (AI) 0-10 VDC or 4-20 mA (configurable
Ø Digital input (DI) 24 VDC (with optional pull-up/pull-down)
Ø Output (Digital/Analog) Supports digital/analog output (depending on system configuration)
Ø Power supply/Input voltage: 24VDC ± 25% (commonly industrial 24VDC); Input range: 18-30 VDC
Ø Power consumption ≈ 2.0W (for normal I/O load)
Ø Ambient/Operating temperature: -20 °C to +60 °C; Storage temperature: -40 °C to +85 °C; Humidity: 5-95% RH (non-condensing)
Ø Installation methods: DIN-rail or panel installation, suitable for integration into control cabinets/terminal boxes
[Product advantages]
Multi-functional hybrid I/O, one machine meets multiple signal requirements - 28 channels can be configured as analog/digital input/output, compatible with various sensors and actuating devices.
Modular and standardized design, easy to install and expand - DIN-rail/panel installation, compact structure, convenient for integration into on-site cabinets or RTU remote terminals.
Stable and reliable, suitable for industrial/field environments - wide temperature range, moisture-resistant, with surge and ESD protection, suitable for use in various industrial Settings.
Suitable for distributed I/O/remote monitoring/SCADA systems - Compatible with Honeywell ControlEdge RTU series, it is an ideal I/O module for building distributed automation systems and remote monitoring systems.
Flexible signal configuration, simplified wiring and system design - analog + digital hybrid, reducing the number of modules and system complexity, which is conducive to cost savings and improved maintenance convenience.
[Application field ]
Petrochemical/oil/gas/Utilities/water treatment facilities - systems suitable for remote monitoring and hybrid I/O requirements
Industrial process control system - connecting sensors and actuators to achieve unified control of analog and digital quantities
Distributed Control System (RTU/SCADA) - used as a remote I/O module, it is suitable for system architectures with wide distribution, numerous devices, and complex signal types
Public infrastructure/energy/chemical plants/manufacturing plants/automated production lines - suitable for automation projects that require stable I/O expansion
System renovation/upgrade/expansion - It is an ideal replacement and expansion module when adding I/O to old systems, expanding control capabilities, and integrating new equipment
