HONEYELL 51304754-150 MC-PAIH03 Analog Input Processor module

[Product Snapshot]

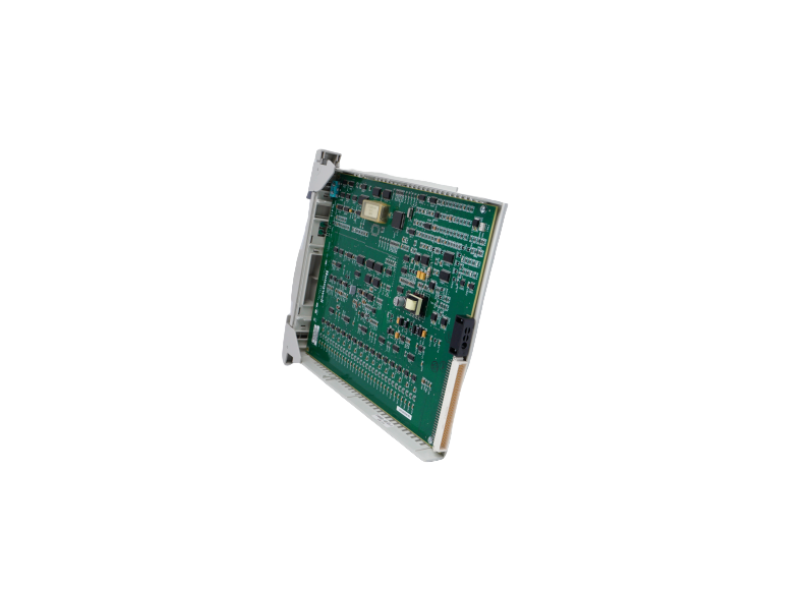

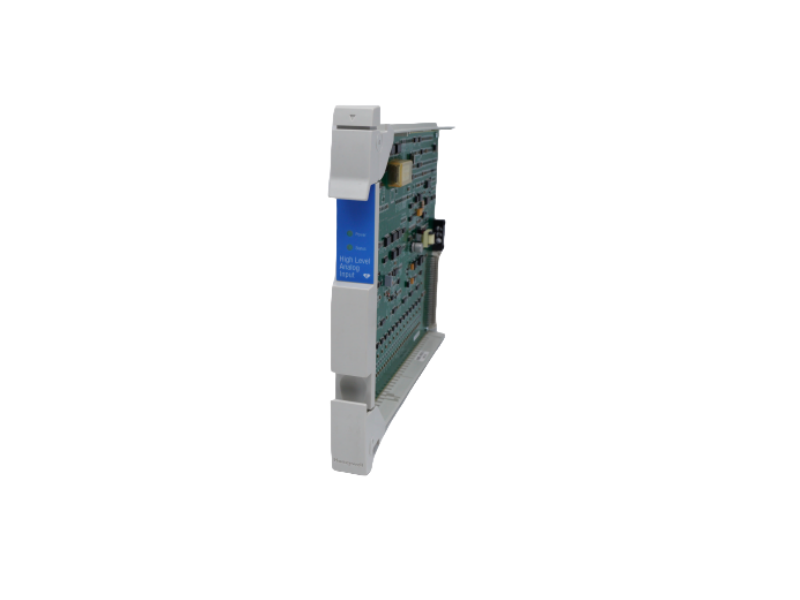

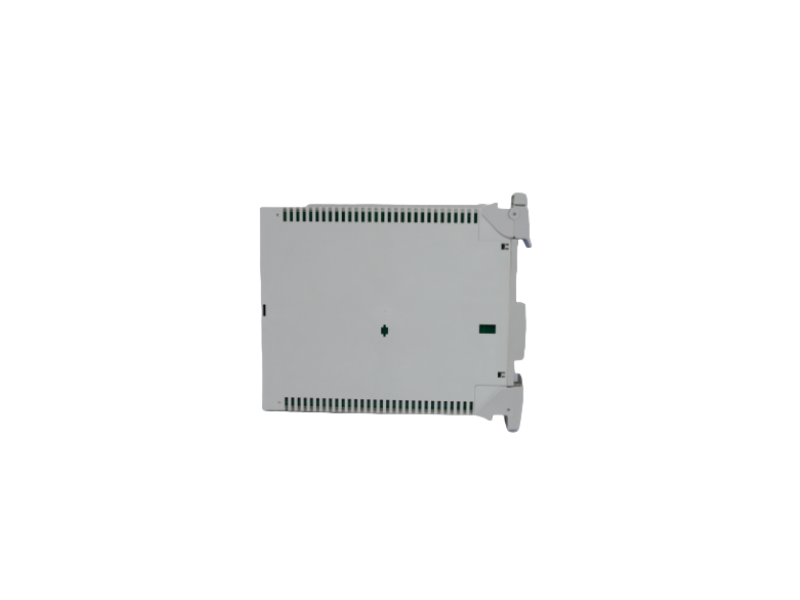

MC-PAIH03 (Part Number: 51304754-150) is a high-level Analog Input Processor module designed by Honeywell for industrial automation/process control systems. This module supports multi-channel (up to 16 channels) analog input, can handle signals from field sensors/transmitters (such as voltage, current output, 4-20  mA / 0-5  V, etc.), and perform high-precision A/D conversion, filtering and processing on these signals. Then the results are transmitted to the system host (controller/DCS/PAC) for monitoring, recording or control

[Key Service Promise]

Ø Manufacturer: Honeywell

Ø Part Number: 51304754-150 (MC-PAIH03)

Ø Module type: High-level Analog Input Processor (High-level Analog Input Processor)

Ø Number of analog input channels: 16 differential input channels

Ø Supported input types: voltage (voltage) or current (current) - can be connected to a 4-20  mA signal (through 250 Ω) or both

Ø Scan Rate: approximately 4 samples per second per channel; All channels were scanned within 250 ms

Ø Common-mode rejection ratio (CMRR) : 70 dB (dc to 60 Hz, 500 Ω source imbalance)

[Product advantages]

Module features/advantages

Multi-channel & high-density input - 16-channel differential input design, high-density integration of multiple field signals, effectively saving rack space, suitable for centralized input management in large-scale process control systems.

High precision & Stability - With high resolution (16-bit) and high precision (± 0.075%FS) A/D conversion capability, it can handle the precise measurement of process variables such as pressure, flow rate, and temperature.

Wide input type support - Supports voltage/current (4-20  mA) input, compatible with a variety of field sensors/transmitters, and highly flexible.

Good anti-interference capability - high common-mode rejection ratio (CMRR 70 dB) and differential input are conducive to suppressing noise and interference, ensuring the stability and reliability of the input signal.

Fast data acquisition - the scanning rate can reach 4 sps per channel, and the entire channel is completed within 250 ms, suitable for dynamic process monitoring, real-time control or trend acquisition.

Strong system integration - Designed for integration with Honeywell UCN/PAC/DCS systems, it can be seamlessly integrated into existing control systems, making it suitable for new construction or upgrading of old systems.

[Application field ]

Industrial process control systems for chemical engineering, petrochemicals, oil refining, pharmaceuticals, water treatment, food processing, etc. - used for monitoring/controlling process variables such as pressure, temperature, flow rate, liquid level, and conductivity.

Process Monitoring/Data Acquisition/Trend Logging system - suitable for concentrating multiple field sensor inputs in a single module, facilitating management and data integration.

Factory/equipment automation integration - As the interface between I/O modules and the main controller (DCS/PAC), it makes the overall system architecture simple and maintenance convenient

System Upgrade/Replacement/Expansion - For older systems or those requiring an increase in I/O points, MC-PAIH03 offers high-density, multi-input point, and highly compatible solutions.

[Step Ordering]
