Description:F8650X Central module
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | HIMA |
| Item number | F8650X |
| Country of Origin | Germany |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

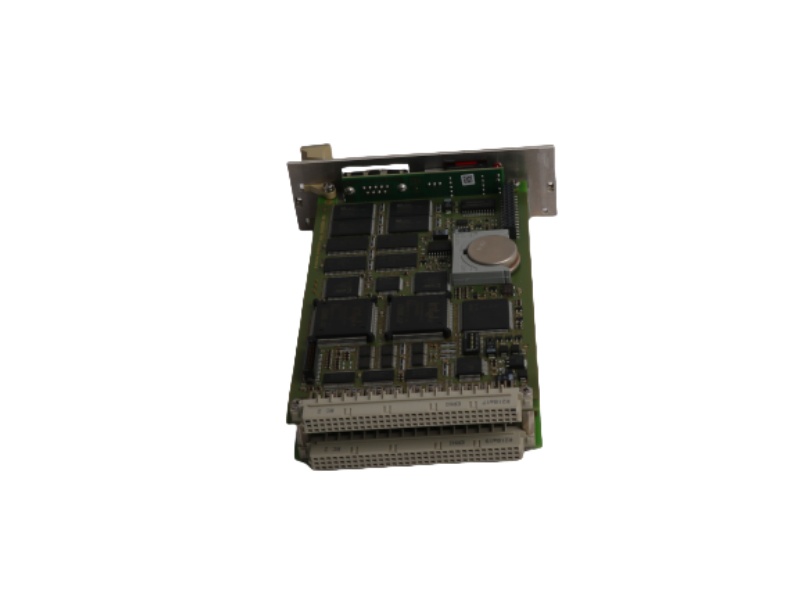

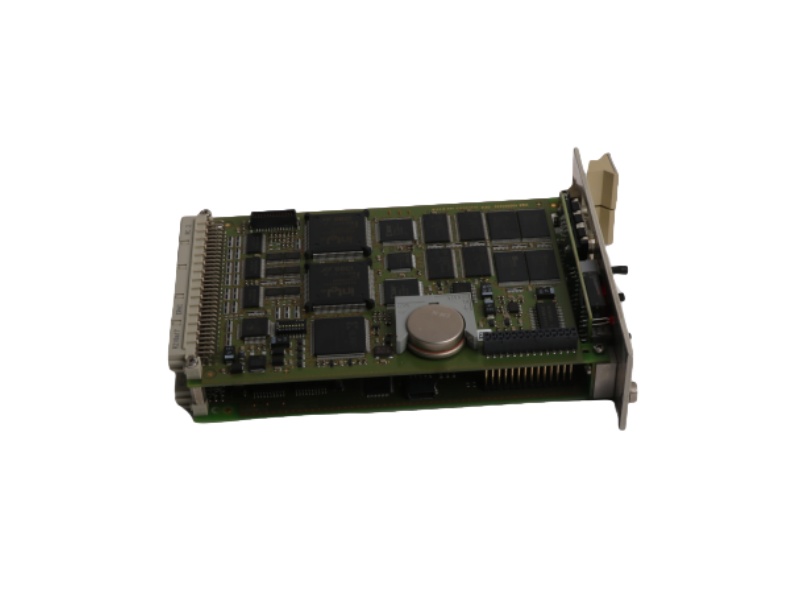

HIMA F8650X
Safety-System CPU Module
Technical Specification & Application Guide
(PLC Autocontroller – 20 Years Certified Supply)
Executive Summary
The HIMA F8650X is the central, SIL-3-rated CPU for HIMA HIMatrix and HIQUAD safety systems.
A single module executes safety logic, manages up to 64 mixed I/O channels, and supports hot-standby redundancy with < 50 ms switchover.
Functional Characteristics
• Architecture: Dual-core Intel 386EX, 32-bit, 25 MHz, lock-step synchronized
• Memory: 1 MB Flash (OS), 1 MB Flash (application), 1 MB SRAM (data)
• On-board I/O: 8 × configurable DI/O (analog optional)
• Scan Time: ≤ 20 ms for 1 000 certified safety blocks
• Communication: 2 × isolated RS-485 (Modbus RTU/ASCII), expandable via F8627X Ethernet module (Modbus TCP, Profinet, OPC UA)
• Diagnostics: 4-digit LED display + status LEDs (CPU, Memory, Comms, I/O)
• Redundancy: Dual 24 V power inputs and dual CPUs (< 50 ms failover)
Electrical & Environmental
• Supply: 24 V DC (18–30 V), < 10 W
• Operating: –40 °C … +70 °C, 5–95 % RH non-condensing
• Protection: IP 20, conformal-coated G3 option
• Certifications: SIL 3 (IEC 61508), PL e (ISO 13849), ATEX Zone 2, CE, UL
Typical Deployment
• LNG terminal ESD & HIPPS
• Refinery fire & gas suppression
• Turbine overspeed protection
• Chemical reactor safety interlocks
Ordering & Related HIMA Modules
|
Part Number |
Description |
|
F8650X |
CPU module, standalone |
|
F3221 |
Input Module |
|
F8627X |
Ethernet communication module |
|
F8621A |
Coprocessor expansion |
|
F3330 |
8-Channel Output Module |
|
F6217 |
16-ch SIL-3 DI (24 V DC) |
|
F7131 |
16-ch SIL-3 AI (4–20 mA) |
|
K9203 |
Fan Module |
|
F7130 |
Power Supply Module |
All modules are factory-sealed, carry full manufacturer warranty, and are available for same-day global dispatch.
Ordering & Stock
PLC Autocontroller keeps the F8650X in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
