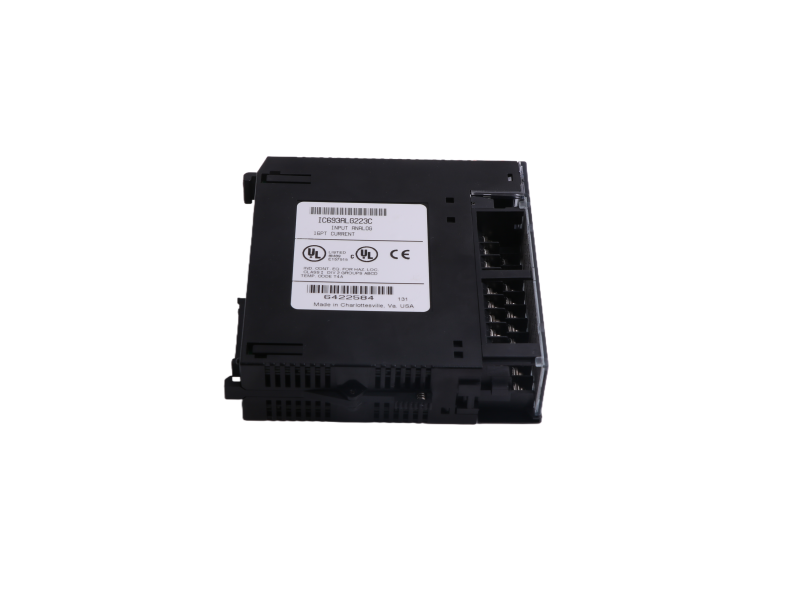

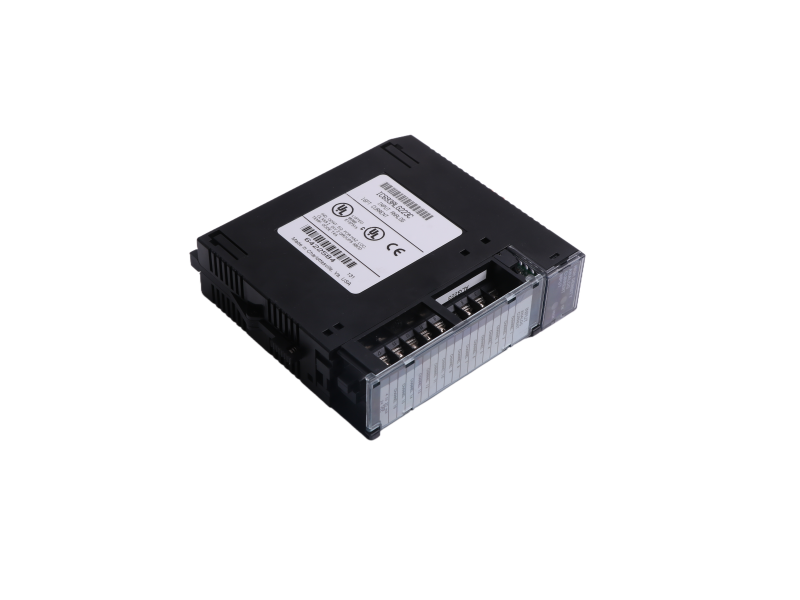

Description:General Electric IC693ALG223 is an Analog Voltage Input Module for precise signal acquisition.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IC693ALG223 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
One-line essence
IC693ALG223 is a GE Fanuc 90-30 series high-density analog current input module: 16 single-ended or 8 differential channels, 0–20 mA / 4–20 mA, 12-bit plus sign resolution, direct CPU transfer without remote I/O overhead.
Straight-to-spec table
|
Attribute |
Factory value |
Field meaning |
|
Channels |
16 SE / 8 diff software selectable |
One card covers two loops per pump |
|
Range |
0–20 mA, 4–20 mA, over-range to 24 mA |
Works with old 10 V shunt resistor |
|
Resolution |
12 bit + sign (0.1 % LSB) |
< 0.15 % error at 12 mA |
|
Update speed |
8 ms all channels |
Fast enough for 50 Hz cascade PID |
|
Input impedance |
250 Ω ±0.1 % |
Standard HART-compatible burden |
|
Isolation |
500 V channel-to-bus |
Mix 24 Vdc & 110 Vac safely |
|
Power |
90 mA @ 5 Vdc back-plane |
No external 24 V feed required |
|
Connector |
20-pin terminal block (IC693ACC337) |
Screw-clamp, removable |
Configuration cheat-sheet
|
Step |
RX3i CPU |
90-30 CPU |
|
1 |
Slot 3, 4, 5 auto-scan |
Slot any I/O rack |
|
2 |
%AI0001–%AI0016 default |
%AI001–%AI016 |
|
3 |
Range select bit %M0167 = 0 (4–20 mA) |
DIP SW1 = OFF |
|
4 |
Scale 0–32767 → 0–20 mA |
Ladder SCL 32767 = 20000 µA |
Typical loop pairings
|
Sensor |
Cable |
Result |
|
Rosemount 3051 4–20 mA |
Belden 9501 shield |
0.1 % loop accuracy |
|
Torque motor 0–20 mA |
2-wire armored |
Direct drive valve position |
|
Retrofit 0–10 V |
500 Ω 0.1 % 0.25 W |
Voltage converted without new module |
Certifications & stamps
CE, UL 508, cULus Class I Div 2 Groups A-D, ABS marine, RoHS.
15-second RFQ
Sales Manager May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Bottom line
When your 90-30 rack needs more 4–20 mA eyes without remote sub-racks, slide in IC693ALG223: no external power, no scaling headaches, just raw milliamps straight to the CPU.
