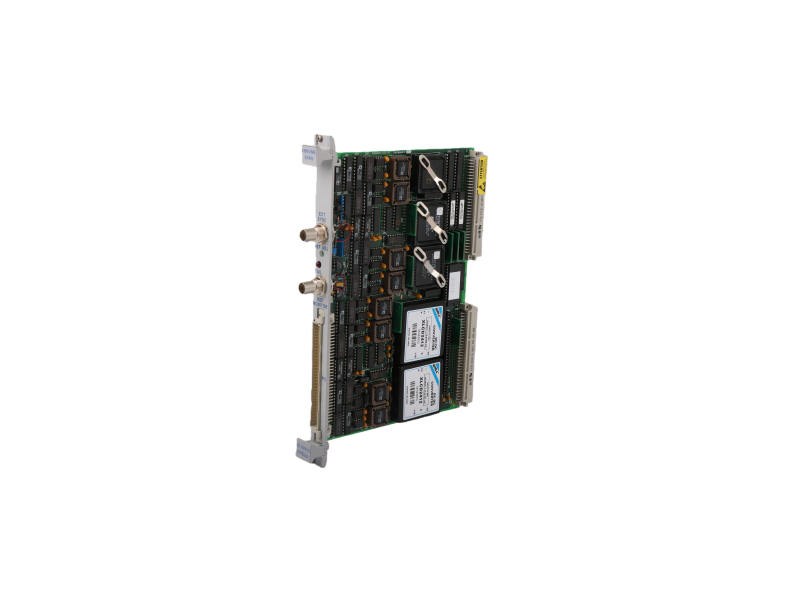

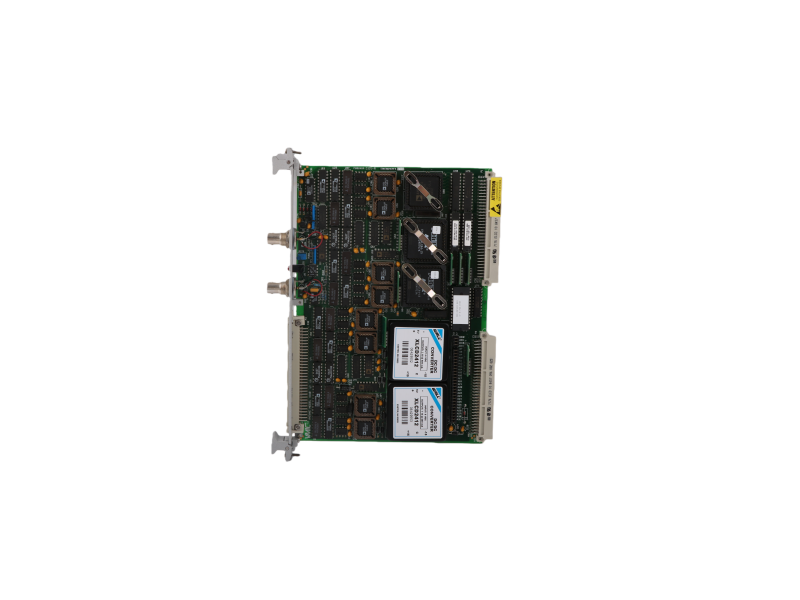

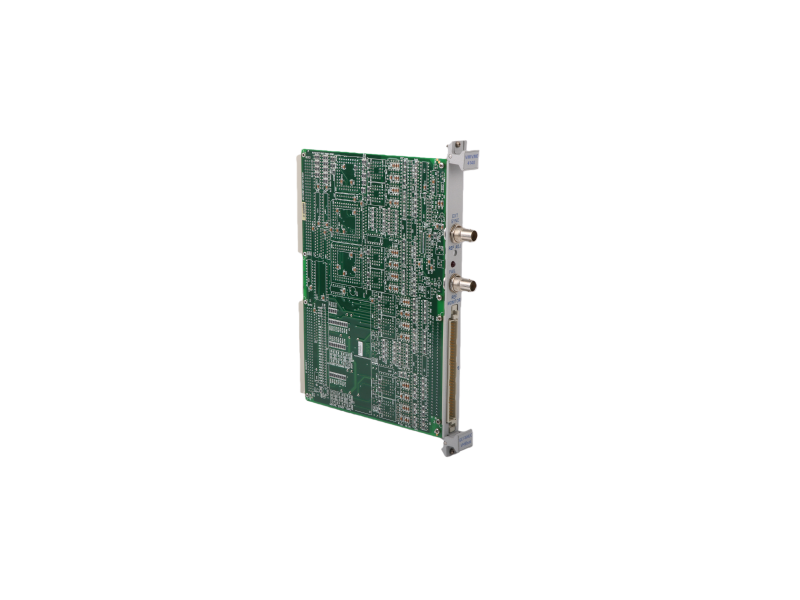

Description:VME 16-bit, 16-channel analog output board with 100 kHz update rate.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | VMIVME-4140-000000 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Ø Product Positioning
Pack 32 × 12-bit synchronized analog outputs into a single 6U VME slot. Eliminate the “not-enough-channels” bottleneck in multi-axis servos, hydraulic loops and HIL rigs; plug into any VME64x backplane and run.
Ø Performance at a Glance
1.Channels: 32
2.Resolution: 12-bit monotonic
3.Update: Hardware-triggered simultaneous refresh, zero inter-channel skew
4.Settling: 25 µs to ±1 LSB
5.Ranges: ±5 V, ±10 V, 0-20 mA, 4-20 mA – software-selectable
6.Isolation: 500 V DC group-to-system
7.Temperature: –40 °C … +85 °C (conformal-coat option)
Ø Mechanics & Power
1.Size: 160 mm × 100 mm × 20 mm PCB (6U single-slot)
2.Power: typ. 9 W, max. 15 W (+5 V @ 3 A, +12 V @ 200 mA)
3.Front connector: 96-pin DIN-41612 with ejector lever; rear-transition module (RTM) available
Ø Compliance & Quality
1.CE, RoHS, IEC 61010-1, IEC 61326-3-1
2.MTBF > 300 000 h @ 40 °C (MIL-HDBK-217F, Ground Fixed)
3.100 % AOI + 4 h 60 °C burn-in; shipped with calibration certificate and ±1 LSB linearity report
Ø Field-Proven Use-Cases
1.Wind-turbine pitch: one VMIVME-4140 drives 32 proportional valves, replacing four 8-ch boards and freeing three VME slots
2.Steel rolling mill: gap set-points for seven finishing stands refreshed simultaneously; strip-thickness tolerance <25 µm
3.Engine HIL: 32 pressure/temperature set-points updated at 40 kHz per channel, round-trip latency <200 µs
4.Naval simulation: six-month continuous run at –40 °C outdoor site with zero drift
The following GE / VMIC modules share the same VME64 back-plane, driver architecture and calibration tool-chain, allowing mix-and-match system design without software re-write.
|
Model |
Description |
Key Difference |
|
VMIVME-4140-000 000 |
32-ch AO |
Simultaneous update |
|
VMIVME-3122-000 000 |
32-ch AI |
250 kS/s simultaneous sampling |
|
VMIVME-2532A-000 |
64-ch DIO |
TTL I/O, 20 mA drive |
|
VMIVME-2540-200 |
8-ch AO |
Higher resolution, slower settling |
|
VMIVME-7671-421 000 |
SBC |
1.26 GHz Pentium M controller |
|
VMIPCI-5565-110 000 |
Reflective-Memory |
2.12 Gb/s fiber optic network |
|
IS215VAMBH1A |
Analog Monitor |
Mark-VI turbine spare |
|
IS215ACLEH1B |
Ethernet I/F |
Mark-VI VME Ethernet |
|
IS215UCVEM01A |
Controller |
Mark-VI VME CPU |
|
IS215UCCCH1A |
Control Module |
Redundant CPU pair |
|
IS215UCVEH2A |
Embedded Ctrl |
667 MHz PowerPC |
|
VMIVME-7807 |
VME SBC |
Core™2 Duo 1.5 GHz |
|
VMIVME-1150 |
Digital I/O |
Opto-isolated 0-60 V |
