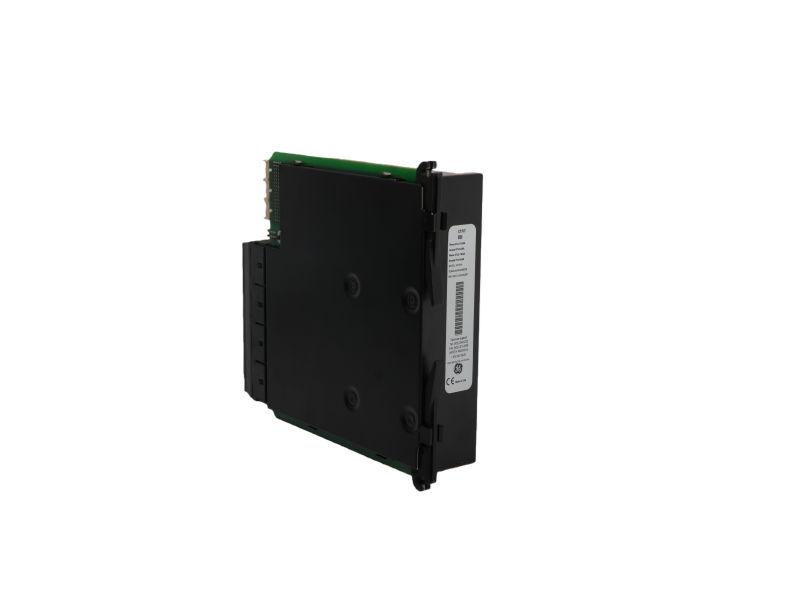

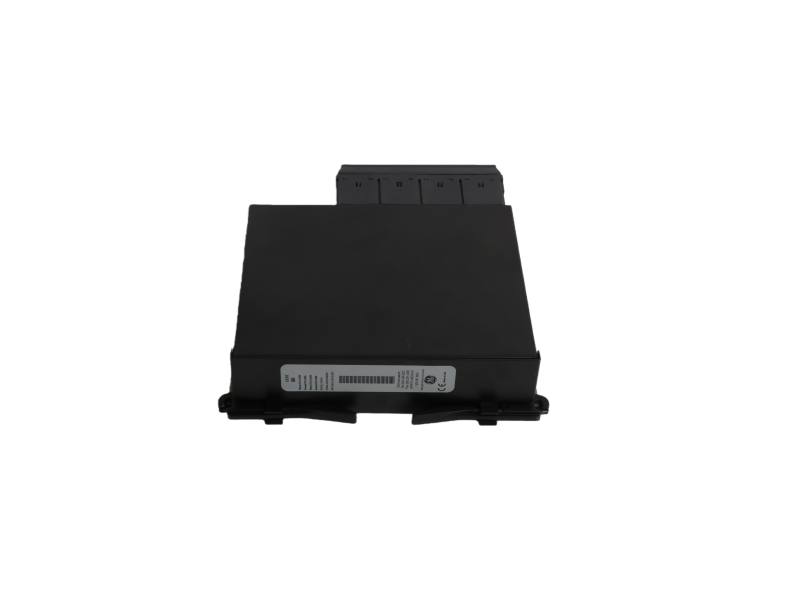

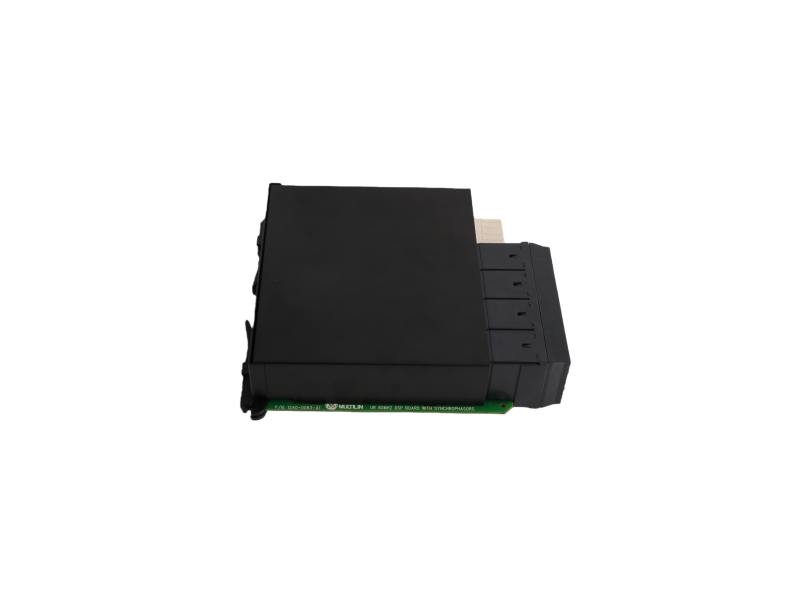

Description:GE UR8HH: CT/VT module, 4 CT (1 A/5 A) + 4 VT inputs, high-accuracy metering & protection.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | UR8HH |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
UR8HH is a “digital-only” plug-in for GE Multilin UR relays: eight inputs or outputs that switch in <0.25 ms. Use it for breaker-fail, arc-flash trip, lock-out or high-speed interlocking—without stealing extra panel space.
|
Mode (jumper-free) |
Typical signal |
Timing |
On-board protection |
|
8 DI, 24–250 Vdc |
Breaker 52a |
0.1 ms |
2 kV optical isolation |
|
4 DI + 4 DO |
Trip + seal-in |
0.2 ms |
Dry contact 8 A, NO/NC |
|
8 DO (high-side) |
Lock-out coil |
0.25 ms |
Varistor clamp 1.5 J |
· Pick-up 18 Vdc, drop-off 5 Vdc; burden <0.2 W per DI
· Output contact: 8 A continuous, 30 A make-for-100 ms (L/R=40 ms)
· Scan synchronized to UR ¼-cycle task → deterministic 2.08 ms @60 Hz
· SOE resolution 1 ms; time-stamp via IRIG-B or PTP to 0.1 ms
· Operating range –40 °C…+85 °C, 5…95 % RH non-condensing
· 3 kV RMS isolation to station ground; surge 4 kV IEC 61000-4-5
1.Loop-power harvesting: board steals 20 mA from the DI line—no external 24 V supply needed.
2.Dual-polarity outputs: software-selectable high-side or low-side; reverse-battery safe.
3.Auto pulse stretch: if your lock-out coil needs 50 ms but the CPU task is only 8 ms, UR8HH stretches the pulse in hardware—zero code change.
|
Host relay |
UR8HH slot |
Job |
Pay-off |
|
F650 |
Slot 3 |
Arc-flash fast trip <2 ms |
Cuts switch-gear cost by 30 % |
|
L90 |
Slot 5 |
Breaker-fail initiate |
Meets IEEE 1547 160-ms window |
|
B90 |
Slot 2 |
Bay-to-bay blocking |
Saves copper vs. hard-wire |
Email title “UR8HH qty + host relay” → ab@mooreplc.com (May)
